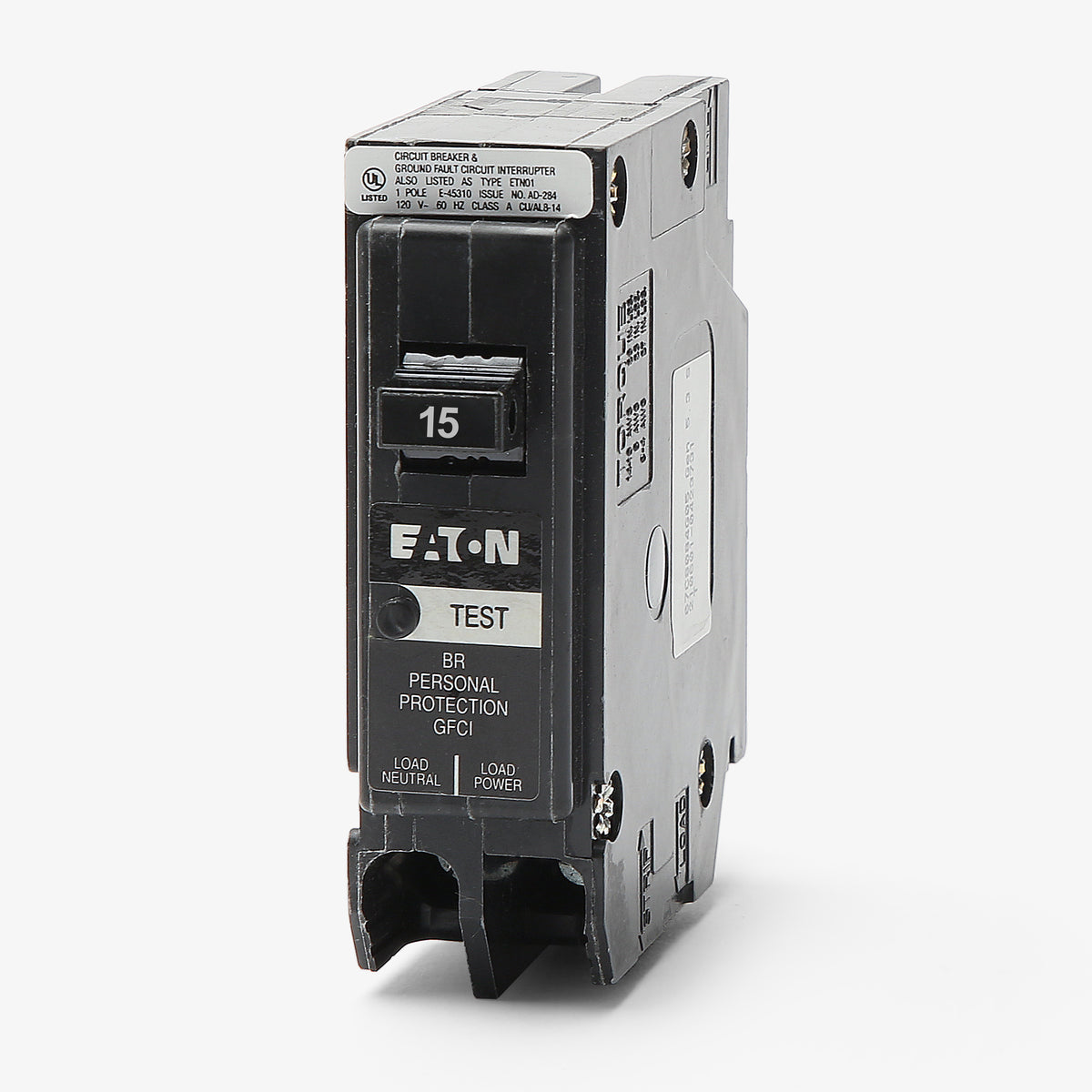

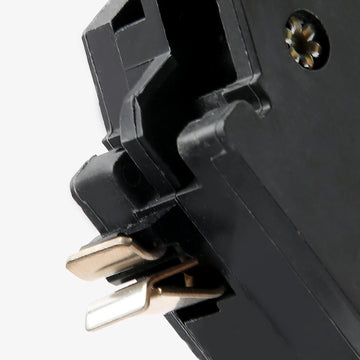

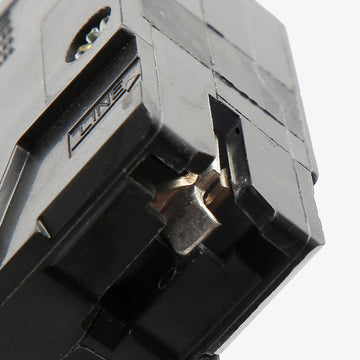

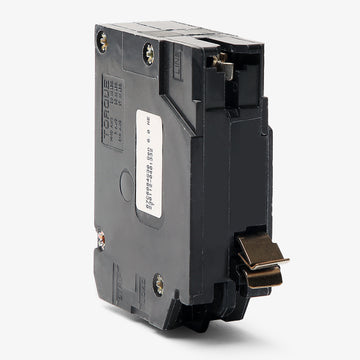

Eaton / Cutler-Hammer BRP115GF GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRP115GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRP115GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRP115GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Part of Eaton's modern safety lineup, the BRP115GF is a 15-amp ground-fault interrupter designed to prevent electrical shock in moisture-prone areas. It delivers 5mA trip sensitivity, ensuring NEC compliance for bathrooms and kitchens. This single-pole breaker is engineered for Eaton BR Plug-On Neutral load centers. By eliminating the pigtail wire, it connects to the neutral bar for a cleaner panel layout. The 10 kAIC unit includes self-testing capabilities and an LED trip indicator.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRP115GF |
| Series | BRP |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton BR Plug-On Neutral Load Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat is the difference between the Eaton BRP115GF and the BR115GF?
The BRP115GF is a plug-on neutral breaker designed specifically for Eaton BR Plug-on Neutral load centers. It connects directly to the neutral bar, eliminating the need for a pigtail wire. The BR115GF is the standard pigtail version used in traditional panels.
Can I install the BRP115GF in a standard Eaton BR load center that is not plug-on neutral?
No. The BRP115GF lacks a pigtail wire and requires the specialized neutral bar found only in Eaton BR Plug-on Neutral load centers. For standard panels, you must use the pigtail version, catalog number BR115GF.
Does the BRP115GF require a separate neutral wire connection to the panel?
No. Because it is a plug-on neutral breaker, it clips directly onto the neutral bar in a compatible Eaton BR Plug-on Neutral load center. This eliminates the need to route and terminate a separate pigtail wire, resulting in a cleaner panel layout.
What level of ground fault protection does the BRP115GF provide?
This breaker provides Class A ground fault protection with a 5mA trip sensitivity. It is designed to protect personnel from electrical shock in moisture-prone areas like bathrooms, kitchens, and outdoor receptacles, while also providing standard thermal-magnetic overcurrent protection.
How do I troubleshoot a tripped BRP115GF breaker?
The BRP115GF features built-in self-test diagnostics and an LED indicator. If the breaker trips, the LED will help you identify whether the trip was caused by a ground fault or a standard overload condition.
What does the LIG trip function code mean on the BRP115GF?
LIG stands for Long-Time, Instantaneous, and Ground Fault. This means the breaker provides thermal protection for overloads (Long-Time), magnetic protection for short circuits (Instantaneous), and 5mA personnel protection for ground faults.
