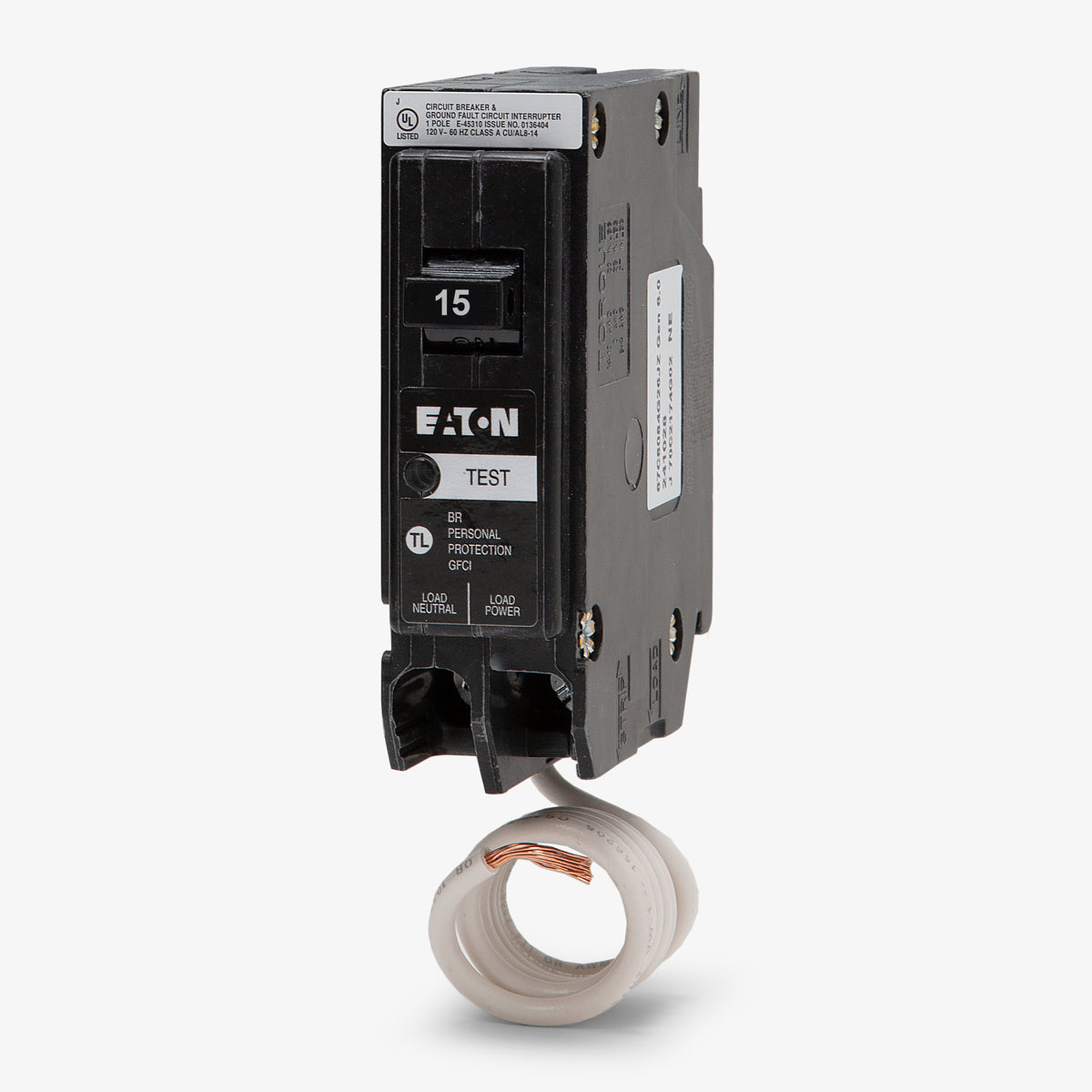

Eaton / Cutler-Hammer BRN115GF GFCI Miniature Circuit Breaker

The BRN115GF is designed for use in Eaton Type BR load centers. It is also backwards compatible with legacy Bryant, Challenger, and Westinghouse load centers that accept 1-inch Type BR breakers.

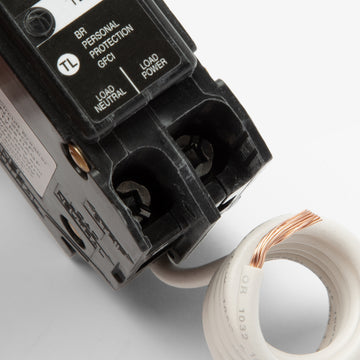

No. The BRN115GF features a pigtail neutral connection, making it suitable for standard, non-plug-on neutral load centers. The white pigtail wire must be connected directly to the panel's neutral bus bar. For plug-on neutral applications, the BRP115GF is required.

Yes. The BRN115GF is Eaton's direct replacement for the older Cutler-Hammer GFCB115. Both are single-pole, pigtail neutral GFCI breakers designed for 1-inch Type BR panels.

No. The BRN115GF is a 1-inch wide Type BR breaker. It is not compatible with Eaton Type CH panels, which require 3/4-inch wide Type CH breakers, such as the CH115GF.

The BRN115GF provides Class A personnel protection with a 5mA ground-fault trip threshold. It is intended to protect people in wet or damp locations, such as bathrooms, kitchens, and garages, in accordance with standard NEC requirements.

No. The BRN115GF is a Class A GFCI with a 5mA trip threshold. If your installation requires a 30mA equipment protection ground-fault breaker, you will need an Equipment Protection breaker, such as the BRN115EP.

No. The BRN115GF is strictly a Ground Fault Circuit Interrupter and only detects ground faults. If your circuit requires both AFCI and GFCI protection to meet local codes, a dual-function breaker like the BRN115DF is required.

No. When installed at the panel, the BRN115GF provides ground-fault protection for the entire circuit. You can use standard receptacles downstream, as the breaker will trip in the event of a fault anywhere along the branch circuit.
