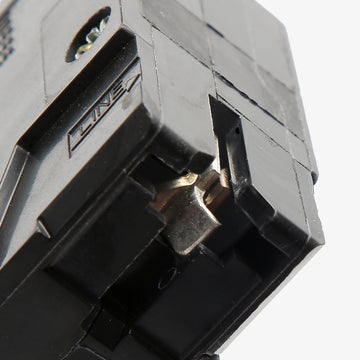

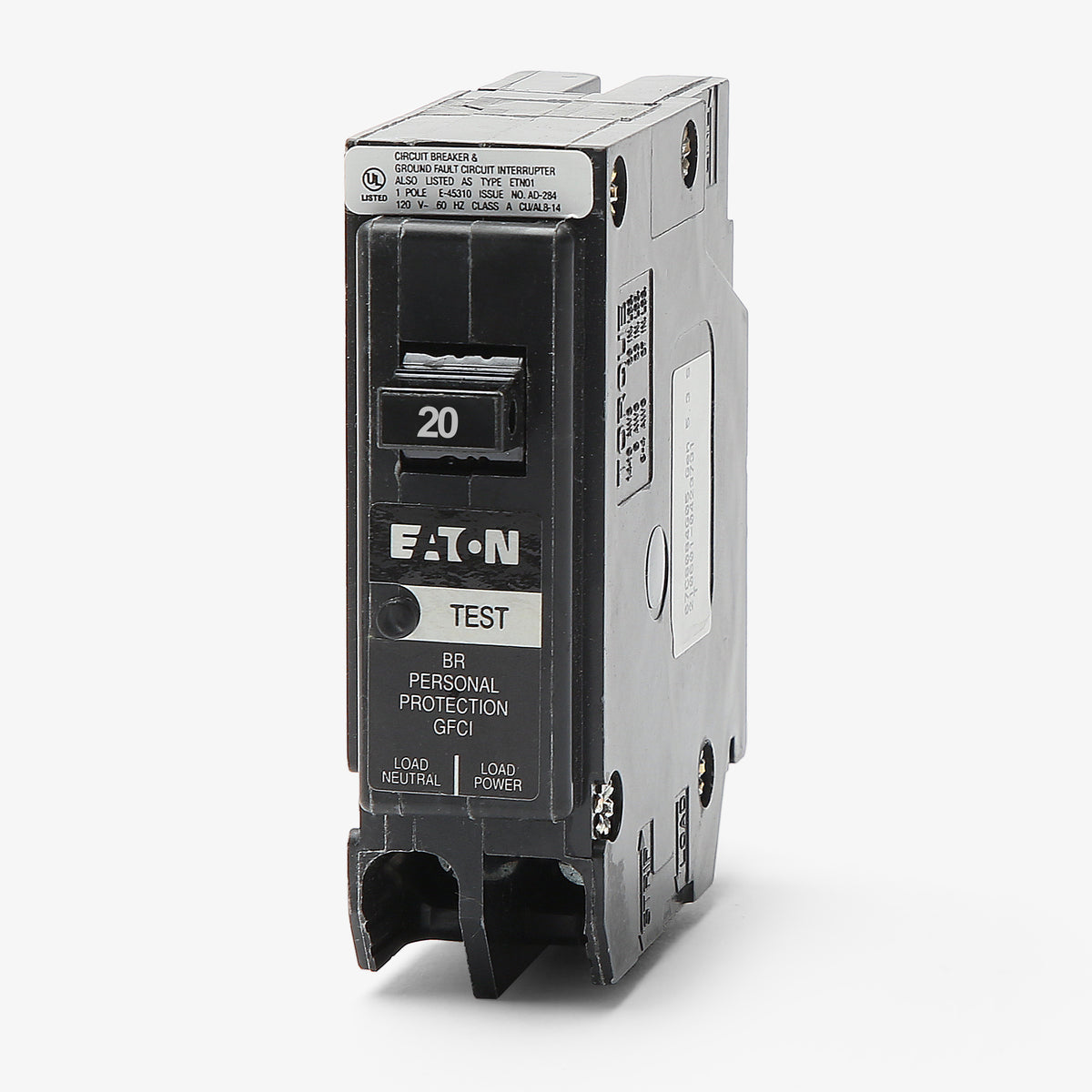

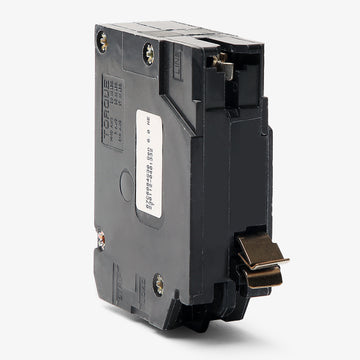

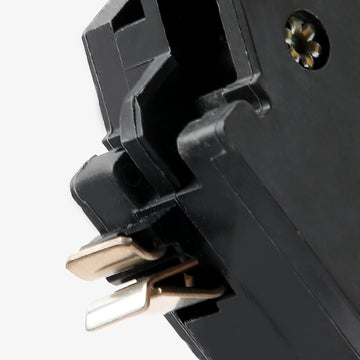

Eaton / Cutler-Hammer BRP120GF GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRP120GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRP120GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRP120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Engineered for modern residential safety, this 20-amp ground fault circuit interrupter eliminates the need for a pigtail connection. It mounts into Eaton BR plug-on neutral load centers, streamlining installation in wet or damp locations like kitchens and bathrooms. The unit features self-test diagnostics, trip-to-center handle positioning, and an LED indicator to quickly identify fault conditions while meeting strict NEC requirements for personnel protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRP120GF |
| Series | BRP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Plug-On Neutral Load Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Standards | UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
6 answersCan I use the BRP120GF in an older Cutler-Hammer load center?
You can only use this breaker if your load center is specifically designed for Eaton BR Plug-On Neutral (PON) breakers. Older standard BR panels that lack a plug-on neutral bar require the pigtail version, such as the BRN120GF or GFCB120.
Does this breaker require a neutral pigtail wire?
No. The BRP120GF is a Plug-On Neutral (PON) breaker. It clips directly onto the neutral bar in a compatible Eaton BR Plug-On Neutral load center, eliminating the need to wire a separate neutral pigtail.
What level of ground fault protection does the BRP120GF provide?
This breaker provides Class A ground fault protection. It is designed to trip when it detects a ground fault leakage current of 5mA, which provides personnel protection against electric shock.
What is the difference between the BRP120GF and the BRP120DF?
The BRP120GF is strictly a Ground Fault Circuit Interrupter (GFCI). The BRP120DF is a Dual Function breaker that provides both Arc Fault (AFCI) and Ground Fault (GFCI) protection. Both are 20A Plug-On Neutral breakers for Eaton BR panels.
What is the difference between the BRP120GF and the BRN120GF?
The BRP120GF features a Plug-On Neutral connection and requires a compatible plug-on neutral load center. The BRN120GF features a standard pigtail wire for the neutral connection and is used in traditional BR load centers. Both provide 20A GFCI protection.
What does the LIG trip function code indicate on this breaker?
The LIG code stands for Long-Time, Instantaneous, and Ground-Fault. This indicates the breaker includes thermal-magnetic protection against slow overloads (Long-Time) and short circuits (Instantaneous), combined with dedicated Ground-Fault leakage protection.
