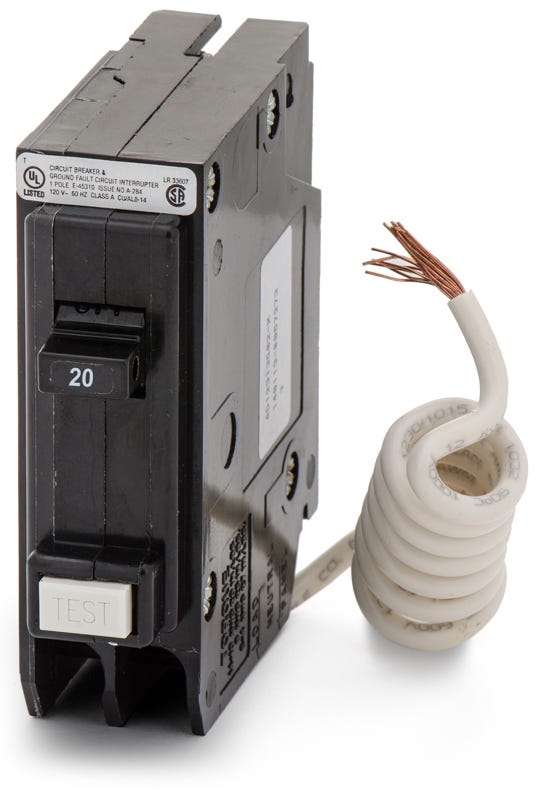

Eaton / Cutler-Hammer GFCB120 GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
GFCB120
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GFCB120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GFCB120 - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GFCB120 - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFCB120 |
| Series | GFCB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Sold out
Quantity
Eaton / Cutler-Hammer GFCB120 - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFCB120-R |
| Series | GFCB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Similar Items
30A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
The Eaton GFCB120 delivers reliable ground-fault circuit interruption for residential and commercial applications. Designed to protect personnel from electrical shock, this 1-pole 20A breaker includes a pigtail neutral for standard wiring configurations. It mounts into 1-inch spaces within Eaton BR, Bryant, Challenger, and Westinghouse panelboards. Rated at 10 kAIC, it provides essential thermal-magnetic overload defense alongside its 5mA Class A GFCI capabilities for wet locations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFCB120 |
| Series | GFCB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
7 answersWhich load centers are compatible with the GFCB120 breaker?
This 1-inch plug-on breaker is compatible with Eaton BR, legacy Bryant, Challenger, and Westinghouse load centers. It will not fit in Eaton Type CH panels or panels from other manufacturers like Square D or Siemens.
How is the neutral wired for the GFCB120?
This breaker uses a pigtail neutral connection. The coiled white pigtail wire must be terminated at the panel's neutral bus bar, while the load neutral wire connects directly to the designated neutral terminal on the breaker.
What is the ground fault trip threshold for the GFCB120?
The GFCB120 is a Class A Ground Fault Circuit Interrupter (GFCI). It is calibrated to trip when it detects a ground fault leakage current of 5mA.
Does this breaker provide combination arc fault (AFCI) protection?
No. The GFCB120 provides standard thermal-magnetic overcurrent protection and ground fault (GFCI) protection. It does not offer arc fault detection. If AFCI or dual-function protection is required by code, a different breaker type is needed.
What wire sizes are accepted by the GFCB120 terminals?
The box lug terminals on this breaker accept copper or aluminum conductors ranging from 14 AWG to 4 AWG.
Are the GFCB120 and BR120GF the same breaker?
Yes. Eaton uses both the GFCB120 and BR120GF catalog numbers for their 20A, 1-pole BR-series GFCI breakers. They share the same physical dimensions, trip characteristics, and panel compatibility.
Does the GFCB120 carry SWD and HACR ratings?
Yes. Like most 15A and 20A single-pole breakers in the Eaton BR family, the GFCB120 is Switching Duty (SWD) rated for controlling fluorescent lighting loads and is marked for use with Heating, Air Conditioning, and Refrigeration (HACR) equipment.
