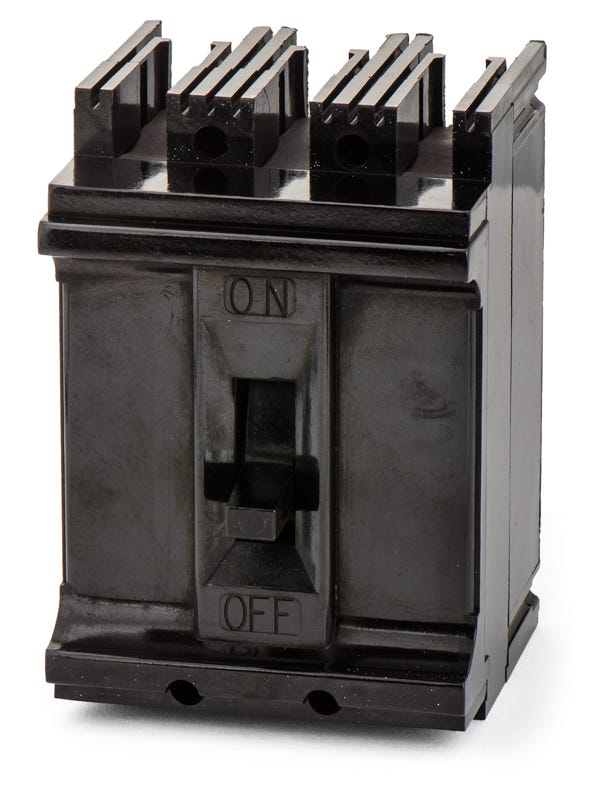

Federal Pacific 2315 NES - 15A 3 Pole Molded Case Circuit Breaker
- 15A
- 3 Pole
- Plug-On
Federal Pacific
2315
NES - 15A 3 Pole Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
2315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NES2315 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NES2315 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | 2315 |
| Series | NES |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Sold out
Quantity
Federal Pacific NES2315 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | 2315-R |
| Series | NES |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the 2315 is a 15A, 3-pole molded case circuit breaker. It delivers dependable thermal-magnetic overcurrent protection for legacy 240VAC electrical systems. Designed for exact fitment, this plug-on MCCB mounts into Federal Pacific Stab-Lok panelboards. It requires no adapters and serves as an exact substitute for the NES2315. Rated for 18 kAIC at 240VAC, this HACR-rated breaker features fixed long-time and instantaneous trip functions.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | 2315 |
| Series | NES |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhat enclosures are compatible with the NES2315 breaker?
This 3-pole N-Frame breaker is designed specifically for Federal Pacific Stab-Lok panelboards. Electricians should verify that the existing panel bus is configured to accept plug-on NES series breakers before installation.
What are the load side wiring requirements for the NES2315?
The breaker is equipped with standard load side lug terminals that accept wire gauges from 14 AWG to 10 AWG. Ensure proper torque is applied to the lugs during installation to maintain a secure connection.
What type of overcurrent protection does the NES2315 provide?
It utilizes a thermal magnetic trip unit with fixed long-time and instantaneous (LI) functions. This non-interchangeable design protects the circuit against both gradual overloads and sudden short circuits.
Are the catalog numbers 2315 and NES2315 interchangeable?
Yes, 2315 is the base SKU for the Federal Pacific NES2315. Both numbers refer to the exact same 15-amp, 3-pole legacy molded case circuit breaker.
Can the trip settings on the NES2315 be adjusted?
No, this breaker features fixed thermal and fixed magnetic trip settings. The internal trip unit is non-interchangeable and cannot be modified in the field.
