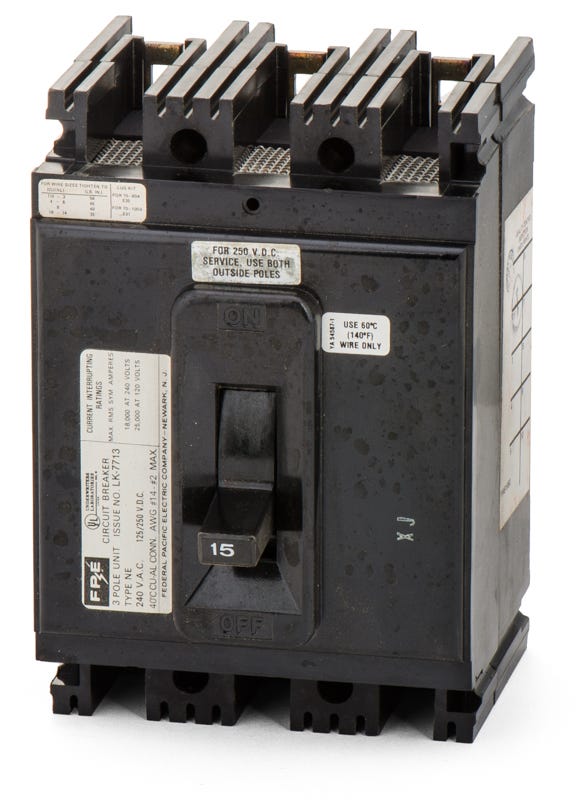

Federal Pacific NE234015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Federal Pacific
NE234015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE234015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE234015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NE234015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE234015 |
| Series | NE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Quantity
Federal Pacific NE234015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
The Federal Pacific NE234015 is a 15A, 3-pole molded case circuit breaker built for commercial power distribution. It utilizes fixed thermal-magnetic trip technology to safeguard electrical circuits against overloads and short circuits. This HACR-rated breaker installs into legacy Federal Pacific NE panelboards. It provides a seamless replacement solution for aging infrastructure, ensuring proper fitment without modifications. Operating at 240VAC, it delivers an 18kAIC interrupting rating.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE234015 |
| Series | NE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
4 answersWhat panelboards accept the NE234015 circuit breaker?
This breaker is engineered specifically for legacy Federal Pacific NE panelboards. It utilizes a bolt-on mounting configuration and will not fit in residential Stab-Lok load centers.
What type of wire connections does this breaker support?
The NE234015 is equipped with standard lug terminals that accommodate wire gauges from 14 AWG up to 2 AWG. Always verify proper torque values during installation.
How does the trip mechanism function on this model?
It features a non-interchangeable thermal-magnetic trip unit. The fixed thermal element responds to prolonged overloads, while the fixed magnetic element provides instantaneous protection against short circuits.
Is the Federal Pacific NE234015 still actively manufactured?
Federal Pacific Electric is no longer in business, making this a legacy component. Replacements are sourced from existing inventory to maintain older commercial infrastructure without requiring a full panel upgrade.
