Federal Pacific HEJ233200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Federal Pacific
HEJ233200
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
HEJ233200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

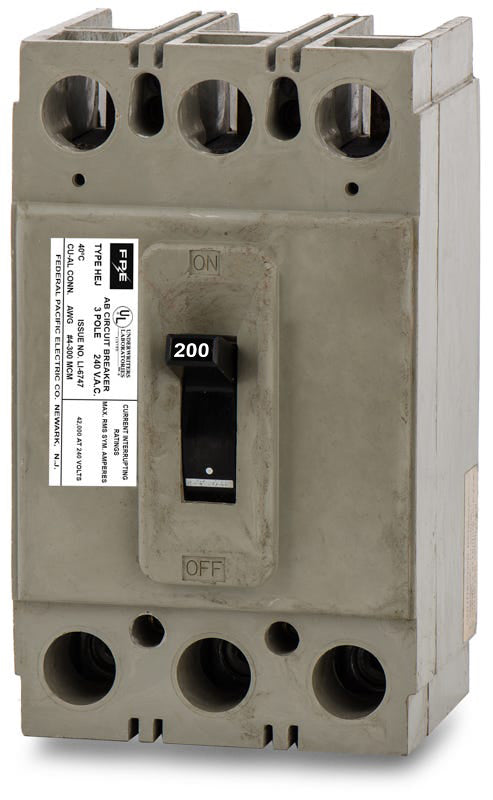

Federal Pacific HEJ233200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

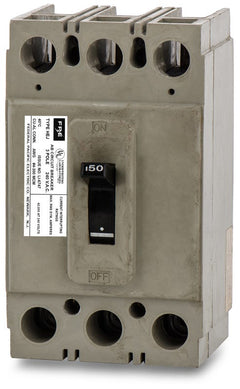

150A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Designed to maintain existing commercial infrastructure, this 200A thermal-magnetic breaker handles three-phase loads up to 240VAC. The bolt-on configuration ensures a solid connection within classic Federal Pacific panelboards, serving as a seamless substitute for the obsolete NEJ233200. Facility managers rely on its substantial 42kAIC rating to handle high fault currents safely. Load side lugs are included to facilitate straightforward wiring and immediate restoration of critical circuits.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HEJ233200 |
| Series | HEJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | HEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Product FAQs
7 answersWhat panelboards are compatible with the HEJ233200 circuit breaker?
This breaker is designed for use in legacy Federal Pacific commercial panelboards that accept H-frame, bolt-on molded case circuit breakers.
Can the HEJ233200 replace older Federal Pacific breakers?
Yes, the HEJ233200 serves as a direct replacement for the obsolete NEJ233200 circuit breaker in existing Federal Pacific systems.
What wire sizes are accepted by the lugs on this breaker?
The load side lugs on the HEJ233200 accommodate wire gauges ranging from 4 AWG up to 300 kcmil.
Is this breaker part of the Federal Pacific Stab-Lok series?
No. The HEJ233200 is a commercial-grade, bolt-on molded case circuit breaker and does not use the residential Stab-Lok mounting design.
What type of trip unit is installed in the HEJ233200?
It features a fixed thermal-magnetic trip unit that provides both long-time overload and instantaneous short-circuit protection.
Can the trip settings on the HEJ233200 be adjusted in the field?
No, this breaker features fixed thermal and fixed magnetic trip settings that cannot be modified after installation.
How does this breaker mount into the panelboard?
The HEJ233200 utilizes a bolt-on connection to secure directly to the busbars, ensuring a solid mechanical and electrical connection in high-capacity commercial panels.
