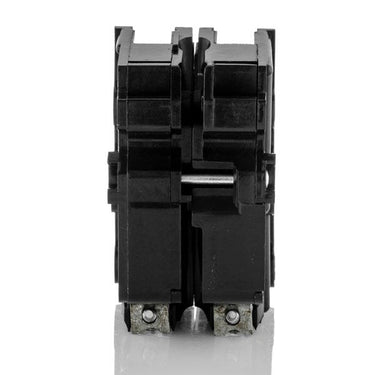

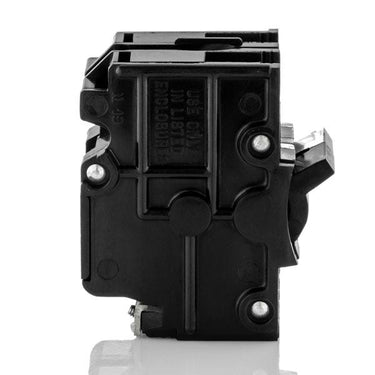

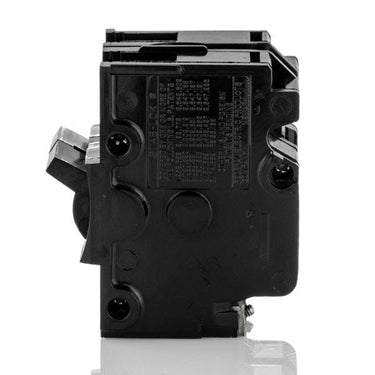

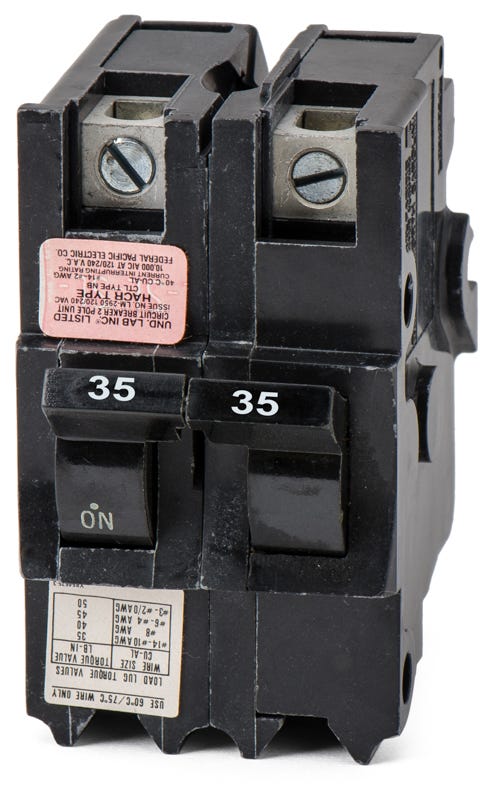

Federal Pacific NB221035 Miniature Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Federal Pacific
NB221035
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NB221035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NB221035 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NB221035 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221035 |
| Series | NB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Sold out
Quantity
Federal Pacific NB221035 - 35A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221035-R |
| Series | NB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Similar Items
15A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Maintaining aging industrial infrastructure is simpler with this 35-amp Federal Pacific bolt-on breaker. It delivers essential overload and short-circuit protection for 120/240V commercial branch circuits using proven thermal-magnetic trip technology. Electricians can mount this unit into existing NB or NBLP panelboards, bypassing the need for modern retrofits. It effectively replaces the UBIF235NB model. Built with a 10kA interrupting capacity, it accepts 14-2 AWG aluminum or copper wire.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NB221035 |
| Series | NB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NB Panelboards, NBLP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhich panelboards accept the Federal Pacific NB221035 circuit breaker?
This breaker is specifically designed for Federal Pacific NB and NBLP series panelboards. It utilizes a bolt-on connection and is not compatible with standard plug-on load centers.
What does the NB frame designation mean for this breaker?
The NB frame indicates a specific physical footprint and bolt-on mounting style proprietary to Federal Pacific commercial panelboards. It cannot be interchanged with NA or NC series plug-on breakers.
What are the wire size and material requirements for the NB221035 terminals?
The integrated lugs accept conductor sizes ranging from 14 AWG to 2 AWG. The terminals are dual-rated for both copper (Cu) and aluminum (Al) wiring, making it versatile for existing commercial installations.
How is the NB221035 secured inside the panelboard?
It is a bolt-on miniature circuit breaker that fastens directly to the panelboard busbar with screws. This bolt-on design is typical for commercial applications, providing a highly secure connection that prevents arcing and resists vibration.
How does the thermal-magnetic trip unit function on the NB221035?
The breaker features a fixed thermal-magnetic trip mechanism with LI (Long-Time, Instantaneous) functions. The thermal element responds to prolonged overcurrent conditions, while the magnetic element trips instantaneously during a short circuit.
Is the Federal Pacific NB221035 still in active production?
Federal Pacific Electric (FPE) is no longer in business, so original NB221035 breakers are sourced from legacy inventory. They remain the standard drop-in solution for maintaining existing FPE NB and NBLP commercial panelboards.
