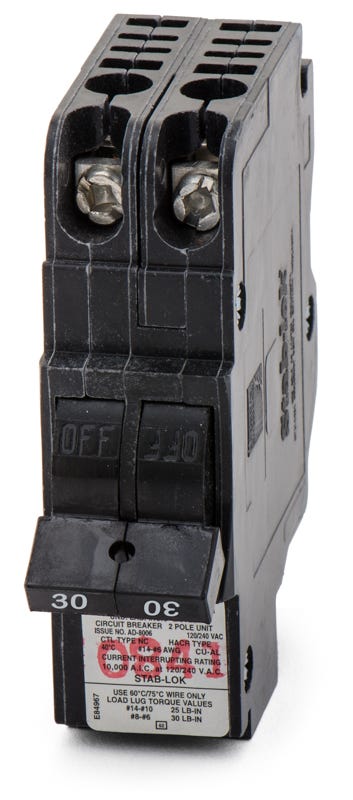

Federal Pacific NC0230 Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Federal Pacific
NC0230
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NC0230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NC0230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NC0230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NC0230 |
| Series | NC |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 Inch per Pole), Color Coded Handle |
Sold out
Quantity
Federal Pacific NC0230 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NC0230 |
| Series | NC |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 Inch per Pole), Color Coded Handle |
Similar Items
20A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Restoring older panels requires exact-fit components like this 30A, 2-pole breaker. It delivers standard thermal-magnetic protection for residential branch circuits. Designed for Federal Pacific Stab-Lok load centers, this unit mounts into the busbar without modifications. It serves as an authentic replacement, cross-referencing with the UBIF0230N. The space-saving half-inch per pole design allows for higher circuit density. It features a color-coded handle and accepts 14-6 AWG wire.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NC0230 |
| Series | NC |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 Inch per Pole), Color Coded Handle |
Product FAQs
6 answersWhat is the difference between Federal Pacific NC and NA frame circuit breakers?
The NC frame is a thin, wafer-style breaker that requires only 1/2 inch of space per pole. The NA frame is a thick, standard-size breaker that requires 1 inch of space per pole. Both plug into Stab-Lok busbars, but you must verify your panel's available space and busbar configuration before selecting a replacement.
Are there modern aftermarket replacements for the Federal Pacific NC0230?
Yes. Connecticut Electric manufactures the UBIF0230N, which is an ETL-classified aftermarket replacement designed specifically to fit Federal Pacific Stab-Lok load centers requiring a thin 30A 2-pole breaker.
Are there safety concerns associated with Federal Pacific Stab-Lok panels?
Yes. Original Federal Pacific Electric (FPE) Stab-Lok breakers have a documented history of failing to trip during overload or short-circuit conditions, presenting a significant fire hazard. Many electrical professionals recommend upgrading the entire panel. When a full upgrade is not immediately feasible, replacing faulty units with tested or certified aftermarket breakers can temporarily restore circuit protection.
How is the NC0230 circuit breaker installed in the panel?
This breaker features a plug-in Stab-Lok connection. It snaps directly onto the E-shaped or F-shaped cutouts on the panel busbar without the need for mounting screws or specialized tools.
What types of loads is a 30A 2-pole Stab-Lok breaker typically used for?
A 30A, 240V circuit is standard for residential high-draw appliances. Common applications include electric clothes dryers, residential water heaters, and small air conditioning condensing units.
What wire sizes and materials are compatible with the NC0230 terminals?
The mechanical lug terminals on this breaker accept 14 AWG to 6 AWG conductors. The terminals are rated for both copper (Cu) and aluminum (Al) wiring.
