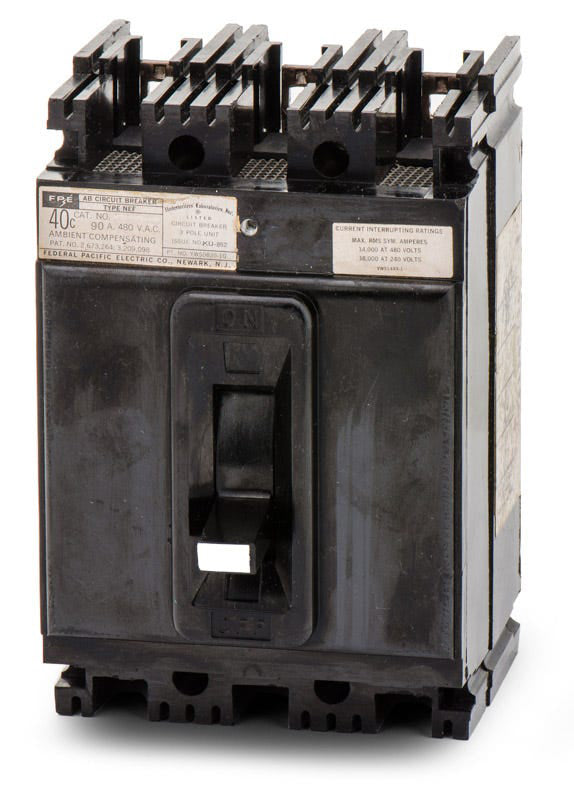

Federal Pacific NEF435090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Federal Pacific
NEF435090
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF435090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF435090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the classic N-Frame lineup, this 90A, 3-pole molded case circuit breaker provides essential overcurrent safety for commercial facilities. Designed specifically for legacy infrastructure, it mounts into Federal Pacific NEF panelboards without requiring adapters. Facility managers can use this unit to replace older NEF433090 or NEF437090 breakers. With a 14kAIC rating at 480VAC, it features fixed thermal-magnetic trip functions and an HACR rating for HVAC applications.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF435090 |
| Series | NEF |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | NEF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhat panelboards accept the Federal Pacific NEF435090?
This 3-pole breaker is designed exclusively for legacy Federal Pacific NEF panelboards. It requires a bolt-on connection and will not fit in panels designed for plug-on breakers.
Is the Federal Pacific NEF435090 still manufactured?
Federal Pacific Electric is no longer in business, making the NEF series obsolete. Exact replacements must be sourced specifically for existing NEF panelboards, as modern breaker frames from other manufacturers will not mount to the NEF bus without a complete panel retrofit.
What wire gauge is required for the NEF435090 terminals?
The included lugs are designed to accommodate wire sizes from 4 AWG up to 1/0 AWG. Ensure your conductors are sized appropriately for a 90-amp circuit according to the National Electrical Code.
Can the NEF435090 be used in DC applications?
Yes, in addition to its 240VAC and 480VAC ratings, this breaker is rated for 250VDC systems with an interrupting capacity of 10kA. When applying molded case circuit breakers in DC circuits, ensure proper wiring configurations are followed per the manufacturer guidelines.
Does the NEF435090 have an adjustable trip unit?
No, this breaker features a fixed thermal magnetic trip unit. Both the long time thermal and instantaneous magnetic trip functions are factory set and cannot be adjusted in the field.
