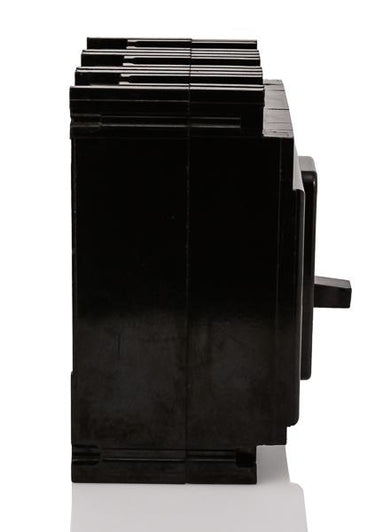

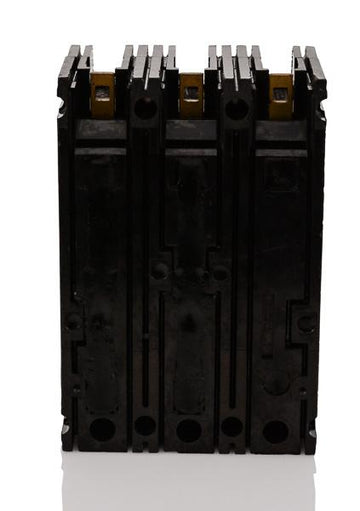

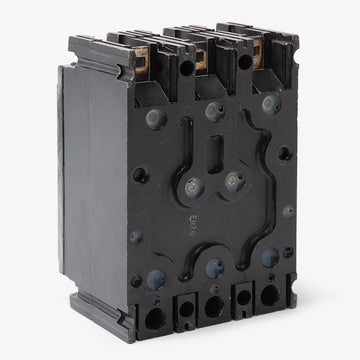

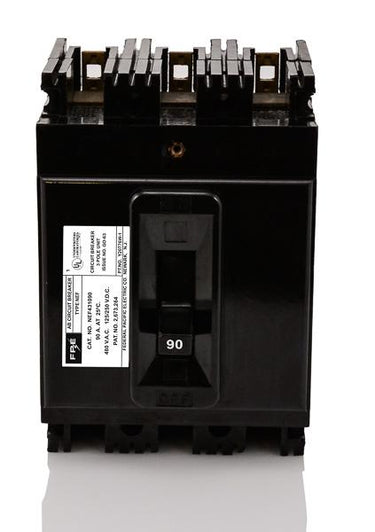

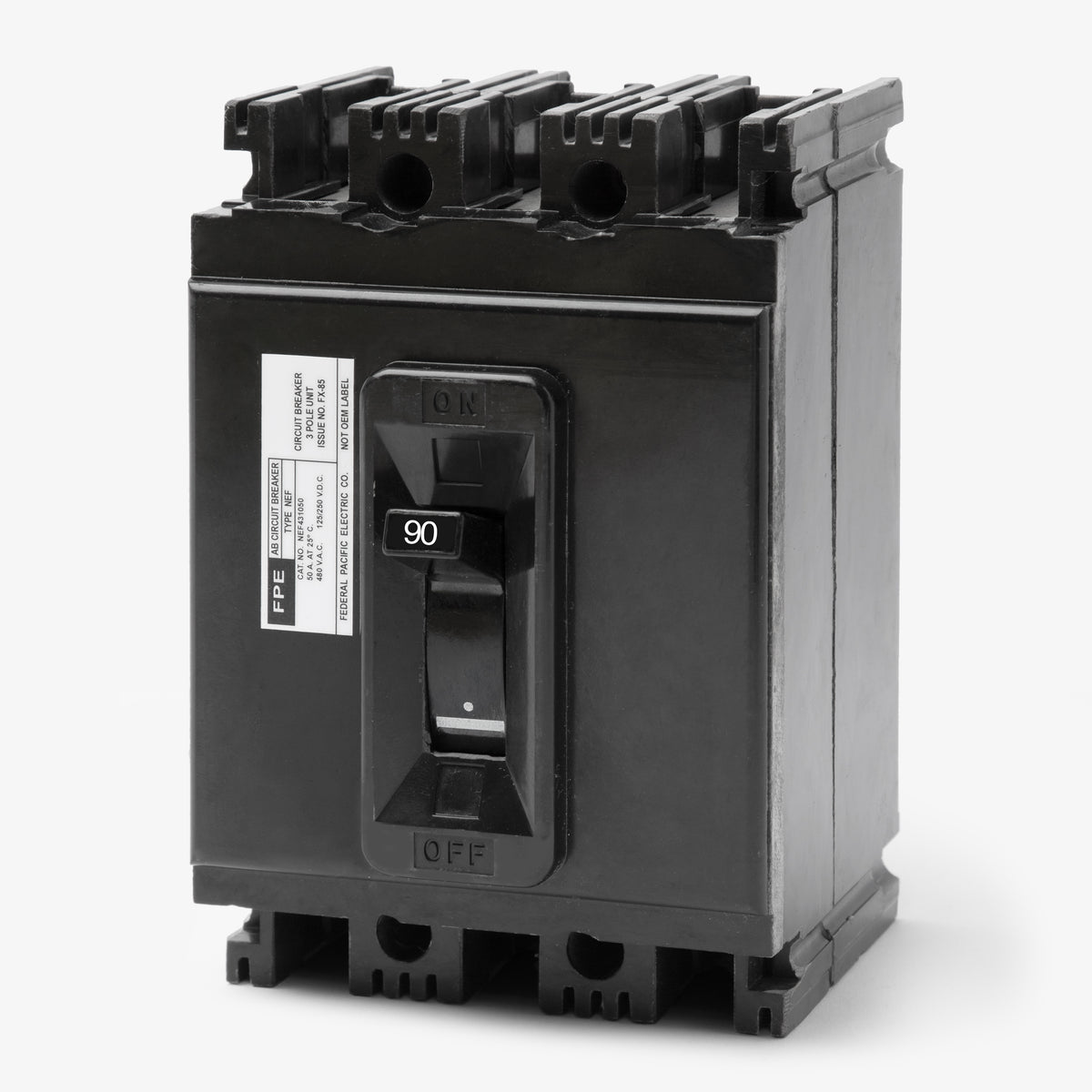

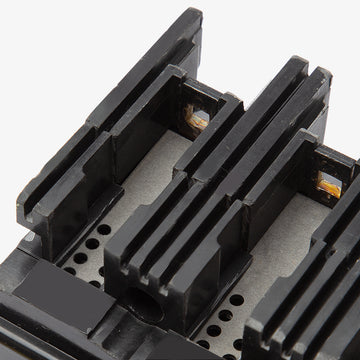

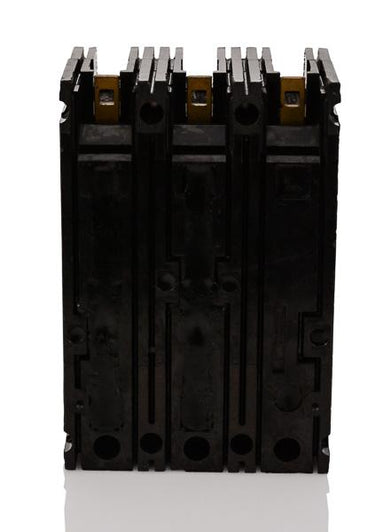

Federal Pacific NEF431090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Federal Pacific
NEF431090
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF431090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF431090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

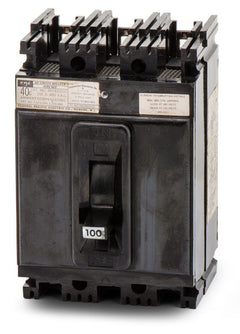

100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Federal Pacific / AmericanNEF431100
100A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for aging commercial systems, the Federal Pacific NEF431090 is a 3-pole, 90A molded case circuit breaker. It provides reliable thermal-magnetic protection for older industrial facilities. Designed specifically for legacy Federal Pacific panelboards, this bolt-on MCCB eliminates the need for retrofitting or adapters. It restores power safely to existing enclosures. Rated at 14kAIC for 480VAC, this unit features non-interchangeable trip elements and reverse feed capability.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF431090-R |
| Series | NEF |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
6 answersWhat panelboards accept the Federal Pacific NEF431090 circuit breaker?
This N-frame molded case circuit breaker is designed as a direct replacement for legacy Federal Pacific panelboards that utilize NEF series bolt-on breakers.
What wire sizes are supported by the terminals on the NEF431090?
The included load side lug terminals accept wire gauges ranging from 4 AWG up to 1/0 AWG.
What are the maximum fault current interrupting ratings for this breaker?
The NEF431090 provides a maximum interrupting capacity of 18kA at 240V AC, 14kA at 480V AC, and 10kA at 250V DC.
How does this breaker connect to the panelboard bus?
It utilizes a bolt-on mounting configuration, which provides a secure, vibration-resistant mechanical and electrical connection to the panelboard bus structure.
What type of trip protection does the NEF431090 provide?
It features a fixed thermal-magnetic trip unit that delivers both long-time overload and instantaneous short-circuit protection (LI functions). The trip elements are non-interchangeable.
Are Federal Pacific NEF series breakers still in active production?
Federal Pacific Electric (FPE) is no longer manufacturing new equipment. However, legacy NEF breakers remain available to service existing commercial and industrial FPE panelboards without the need for costly system retrofits.
