ABB / General ElectricTHQL2120ST1
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

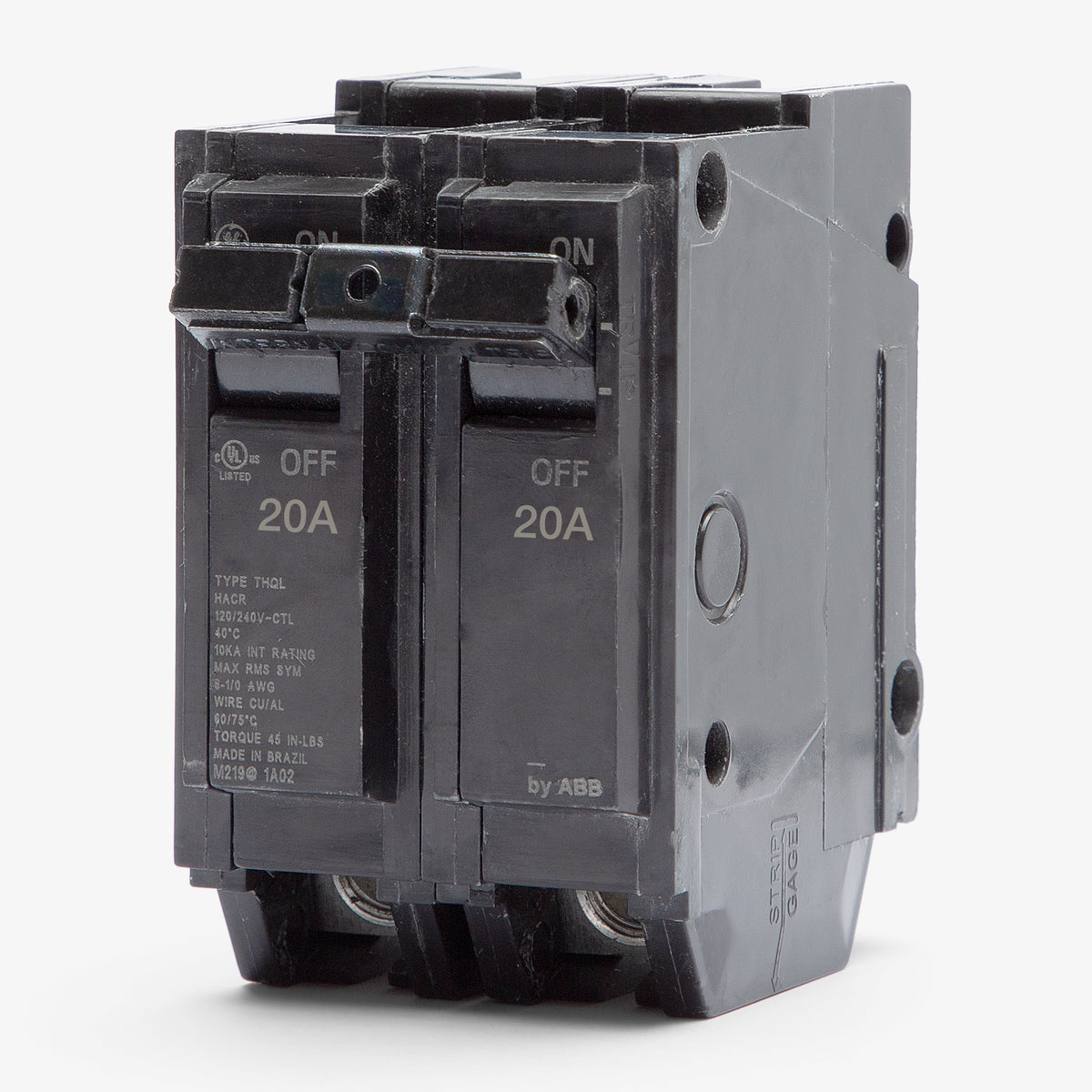

ABB / General Electric THQL2120 Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2120
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2120 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL2120 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2120 |
| Series | THQL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL2120 - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2120-R |
| Series | THQL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2125
25A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2115
15A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2130
30A 2 Pole Miniature Circuit Breaker
Description
Engineered for residential and commercial power distribution, this 20A two-pole breaker provides standard overload and short-circuit protection. It fits seamlessly into GE PowerMark Gold, ABB ReliaHome load centers, and AQ lighting panels. The unit carries a Switching Duty (SWD) rating for fluorescent lighting applications and features an internal common trip mechanism with a 10kAIC interrupt capacity for dependable everyday performance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2120 |
| Series | THQL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersAre ABB and GE THQL circuit breakers the same?
Yes. ABB acquired GE Industrial Solutions, so ABB ReliaHome and GE PowerMark Gold Q-Line breakers are identical and fully interchangeable. You may receive stock branded as either ABB or GE.
What is the difference between THQL and THQP breakers?
THQL breakers are full-size Q-Line breakers taking up 1 inch of space per pole. THQP breakers are half-size and require only 1/2-inch per pole. They mount differently and are not interchangeable. Your load center must specifically accept full-size THQL breakers to use this model.
Is the THQL2120 rated for HVAC equipment?
Yes. This breaker carries an HACR rating, meaning it has been tested and approved for use with heating, air conditioning, and refrigeration equipment motor loads.
Does this breaker provide arc-fault or ground-fault protection?
No. The THQL2120 is a standard thermal-magnetic breaker that provides traditional overload and short-circuit protection. It does not include AFCI or GFCI circuitry.
Does the THQL2120 require a pigtail or neutral connection?
No. Because this is a standard thermal-magnetic circuit breaker without GFCI or AFCI features, it does not require a neutral wire connection to the panel busbar.
