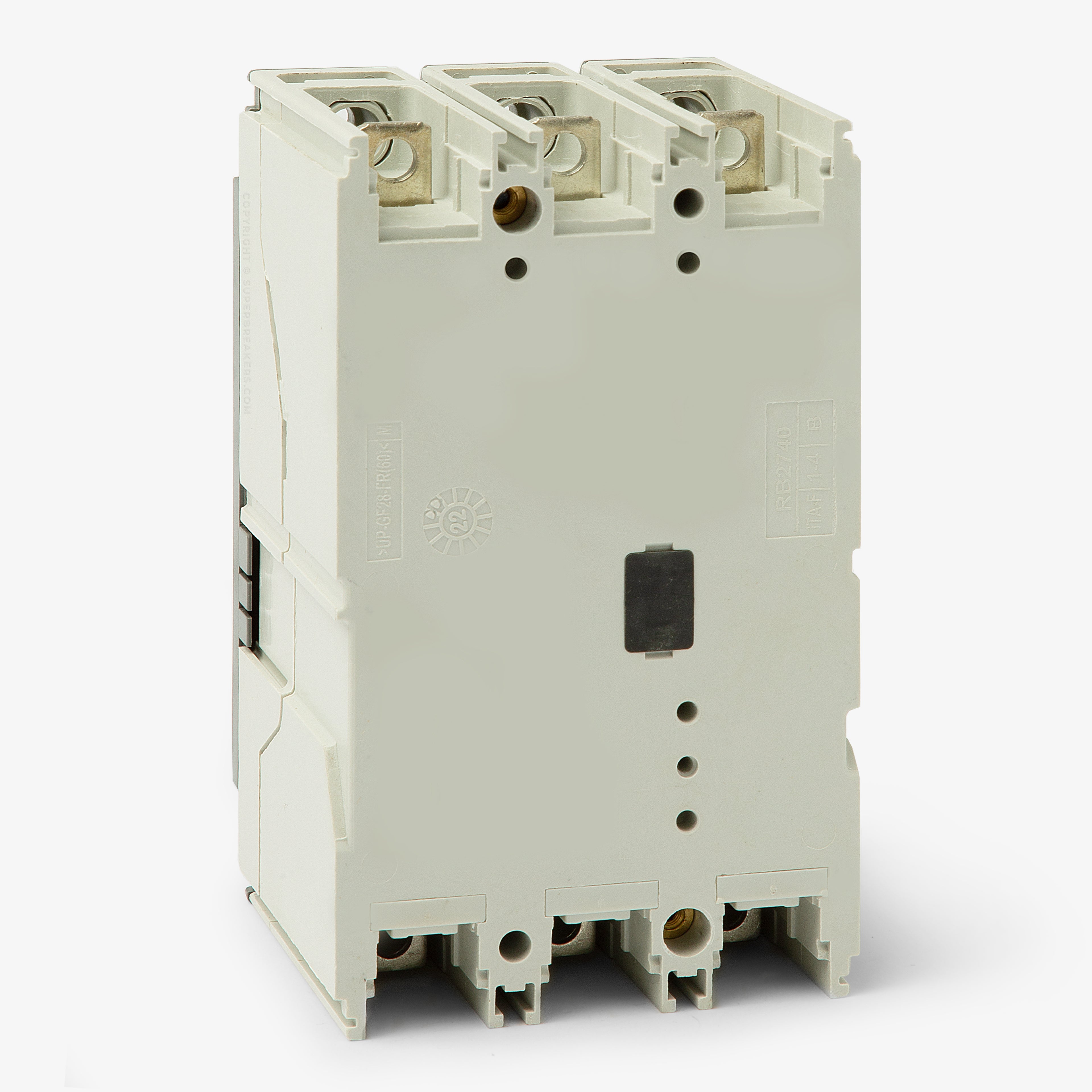

ABB XT1NU3060AAA000XXX Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
ABB
XT1NU3060AAA000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1NU3060AAA000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1NU3060AAA000XXX - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Part of the SACE Tmax XT family, the ABB XT1NU3060AAA000XXX is a 3-pole, 60A molded case circuit breaker. It is built to handle rigorous commercial and industrial power distribution tasks. This unit mount breaker is compatible with ABB ReliaGear neXT panelboards and ReliaGear SB switchboards. It serves as a replacement for the discontinued T1N060TL. Delivering 25 kAIC at 480VAC, it utilizes a fixed thermal-magnetic trip unit and includes front copper lugs for streamlined installation.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 36kA @ 250VDC, 36kA @ 500VDC |
| Frame Type | XT1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, SACE Tmax XT Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (FC Cu) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Double Insulated, Suitable for single phase application up to 347VAC |
Product FAQs
6 answersHow is the XT1NU3060AAA000XXX installed into ABB ReliaGear neXT panelboards?
While this breaker is compatible with ReliaGear neXT panelboards and ReliaGear SB switchboards, installing a Tmax XT1 frame requires a separate mounting rail. It does not plug directly into the bus stack without the appropriate rail adapter.
What legacy GE circuit breaker does the XT1NU3060AAA000XXX replace?
This XT1 frame breaker serves as a direct replacement for the discontinued GE T1N060TL molded case circuit breaker.
Is the thermal-magnetic trip unit on the XT1NU3060AAA000XXX adjustable?
No, this breaker features a fixed thermal and fixed magnetic (LI) trip unit. The long-time and instantaneous trip thresholds are factory set and cannot be adjusted in the field.
Can I use aluminum wire with the standard lugs on this breaker?
The standard front lugs provided with the XT1NU3060AAA000XXX are rated for copper (Cu) wire only, accepting sizes from 14 AWG to 1/0 AWG. If aluminum conductors are required, you must install compatible Cu/Al rated terminal lugs.
Is the XT1NU3060AAA000XXX suitable for reverse feed applications?
Yes, this SACE Tmax XT1 breaker is reverse feed capable, allowing line or load connections to be made at either the top or bottom terminals without compromising the protective functions.
What is the operating temperature range for the SACE Tmax XT1 breaker?
The XT1NU3060AAA000XXX is designed to operate safely in ambient air temperatures between -25 degrees Celsius and 70 degrees Celsius. For temperatures above the reference threshold, thermal trip variation and performance derating must be taken into account.
