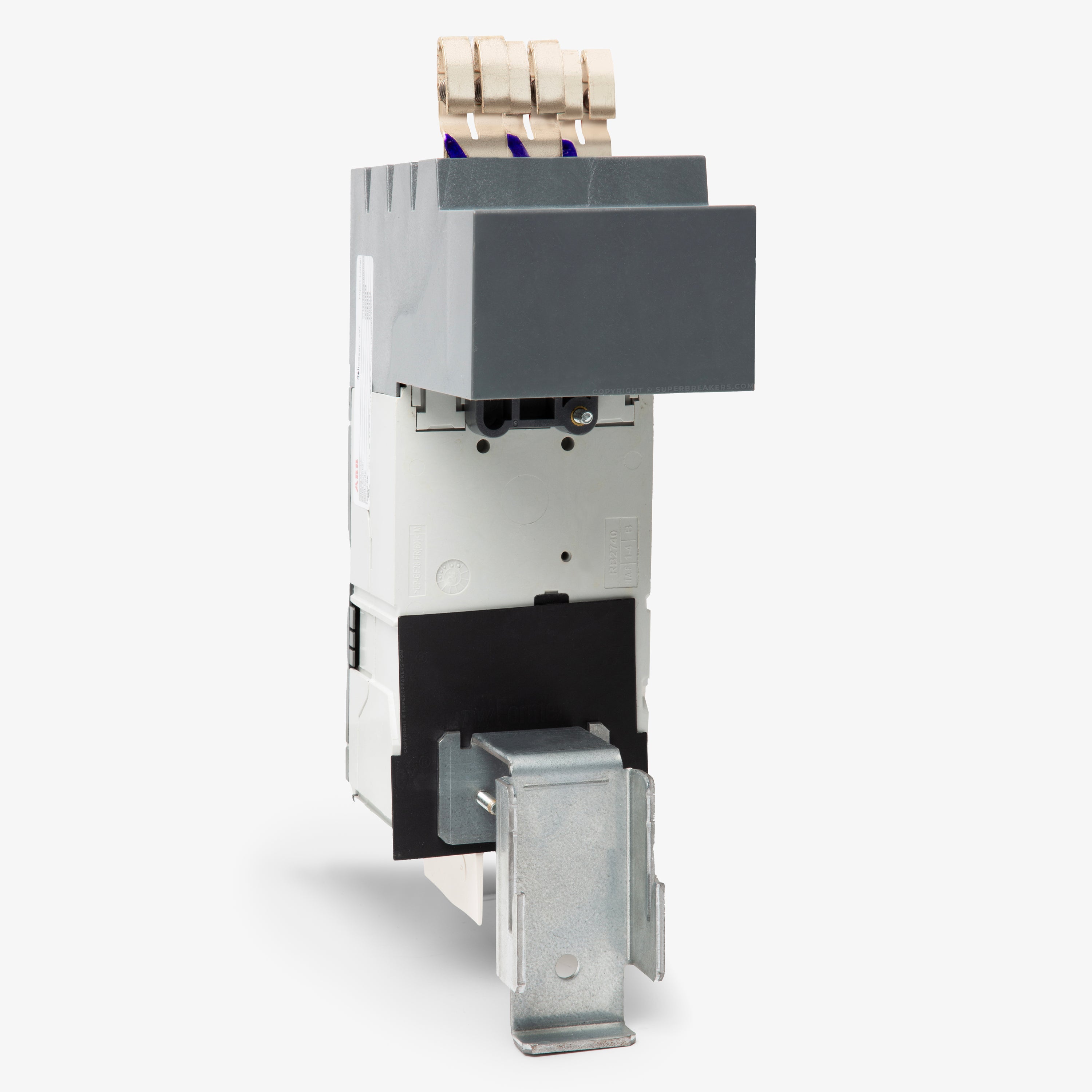

ABB XT1NU3110AYD000XXX Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
ABB
XT1NU3110AYD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1NU3110AYD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1NU3110AYD000XXX - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Built for rapid installation, the ABB XT1NU3110AYD000XXX is a 3-pole, 110A molded case circuit breaker. It belongs to the SACE Tmax XT family, offering advanced current-limiting protection for commercial and industrial electrical systems. This breaker features a specialized plug-in connection that mounts into ABB ReliaGear neXT panelboards and ReliaGear SB switchboards. Delivering 25kAIC at 480VAC, it utilizes a fixed thermal magnetic (TMF) trip unit and includes load side lugs.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | XT1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, SACE Tmax XT Panelboards |
| Wire Gauge | 10 AWG - 2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter |
|---|---|
| Accessories | Load Side Lugs (FC CuAl) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Double Insulated |
Product FAQs
7 answersWhat panelboards are compatible with the XT1NU3110AYD000XXX?
This breaker is designed for use in ABB ReliaGear neXT panelboards, ReliaGear SB switchboards, and SACE Tmax XT panelboards.
What wire gauge range do the factory lugs accept?
The included lugs accept wire sizes ranging from 10 AWG to 2/0 AWG. Ensure proper torque specifications are followed during installation.
Are the thermal and magnetic trip settings adjustable on this model?
No, this specific breaker features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings for Long-Time and Instantaneous (LI) protection.
Is the XT1NU3110AYD000XXX rated for direct current (DC) systems?
Yes, it is rated for use in DC applications up to 250VDC, providing a 35kA interrupting capacity at that voltage.
What mounting style does this XT1 frame breaker use?
It is a unit mount circuit breaker. It is designed to be bolted or fastened directly to the mounting surface or backpan rather than plugging onto a busbar.
What does the N in the XT1N prefix indicate?
The N designates the normal interrupting capacity tier for the SACE Tmax XT1 frame, which provides a 25kA rating at 480VAC.
What trip functions are included in the thermal magnetic unit?
This breaker provides Long-Time and Instantaneous (LI) protection, which safeguards electrical circuits against general overloads and short circuits.
