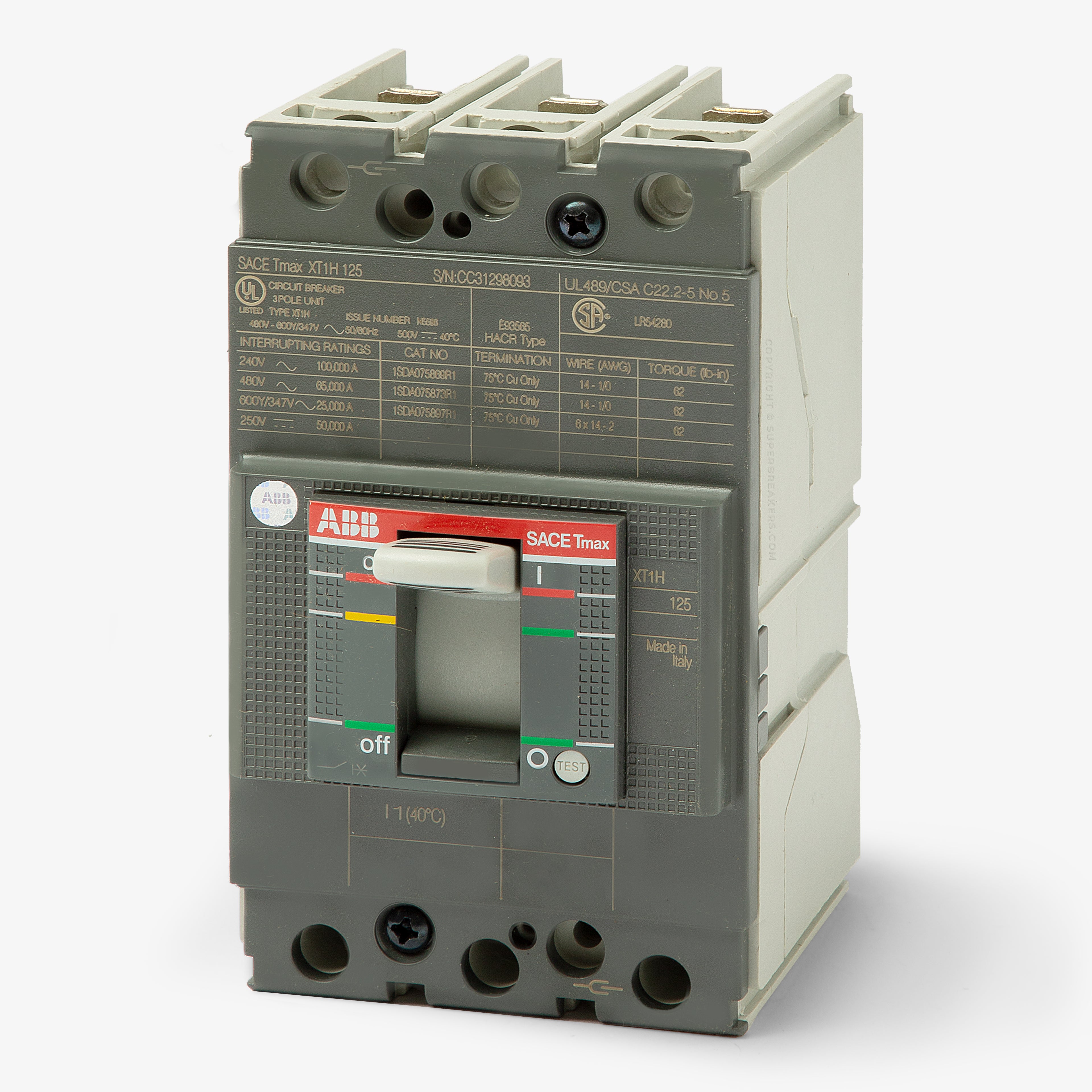

ABB XT1SU3060AFD000XXX Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
ABB
XT1SU3060AFD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1SU3060AFD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

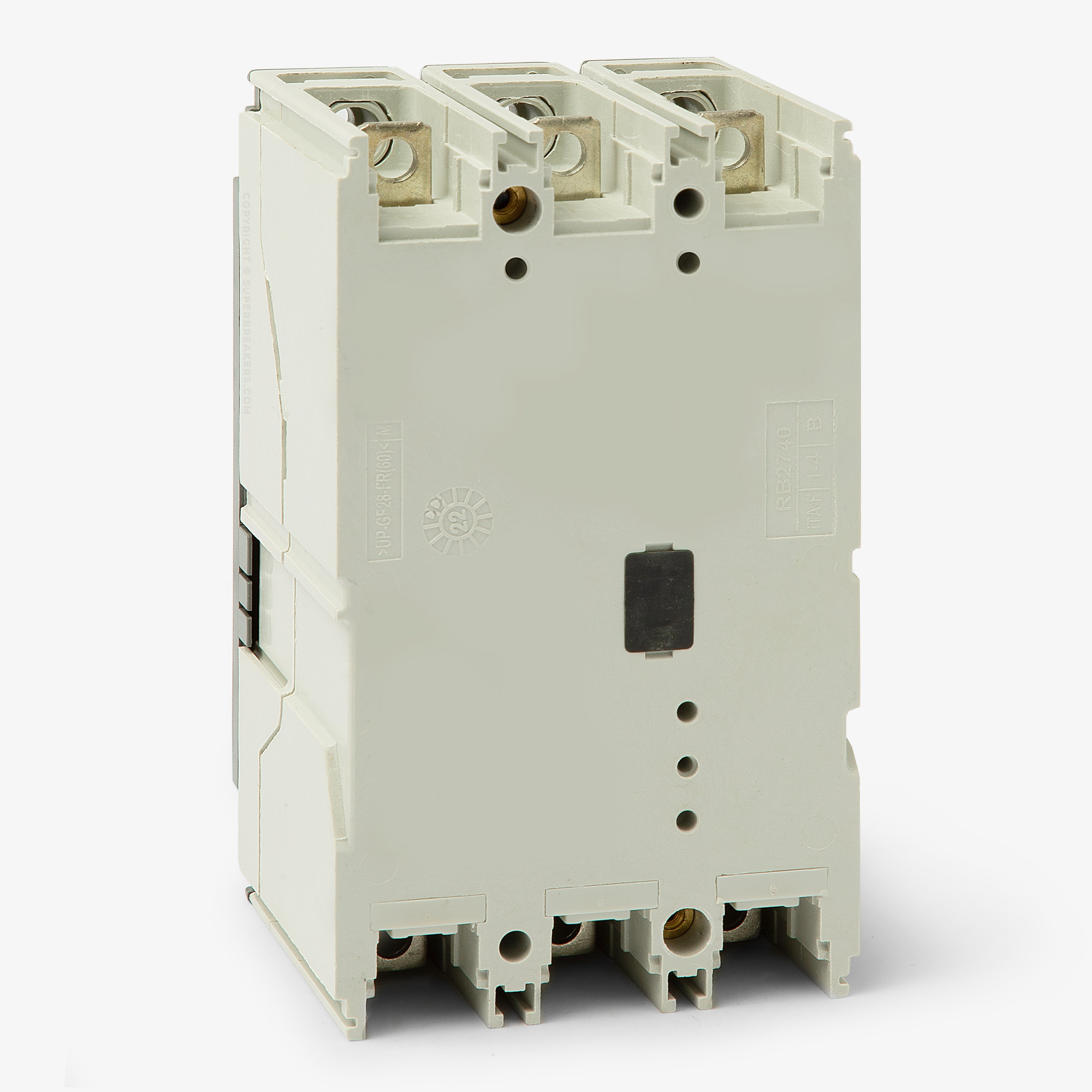

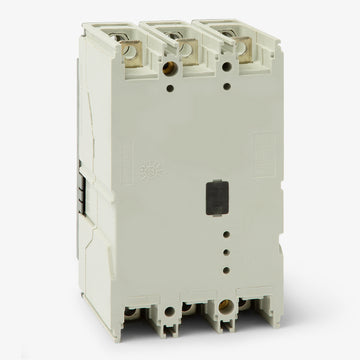

ABB XT1SU3060AFD000XXX - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, the ABB XT1SU3060AFD000XXX is a 3-pole, 60A unit mount MCCB belonging to the SACE Tmax XT1 series. It is designed to install into ReliaGear SB switchboards and compatible enclosures, offering a drop-in replacement for the legacy T1S060TL. This breaker delivers a 35 kAIC interrupt rating at 480VAC and includes factory-installed load side lugs. Additional features include current-limiting operation, reverse feed capability, and double insulation.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 42kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ReliaGear SB Switchboards, Enclosures |
| Wire Gauge | 10 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Double Insulated |
Product FAQs
7 answersWhat legacy ABB breaker does the XT1SU3060AFD000XXX replace?
This XT1 frame breaker serves as a modernized, drop-in replacement for the legacy Tmax T1S060TL.
Does this breaker come with lugs installed?

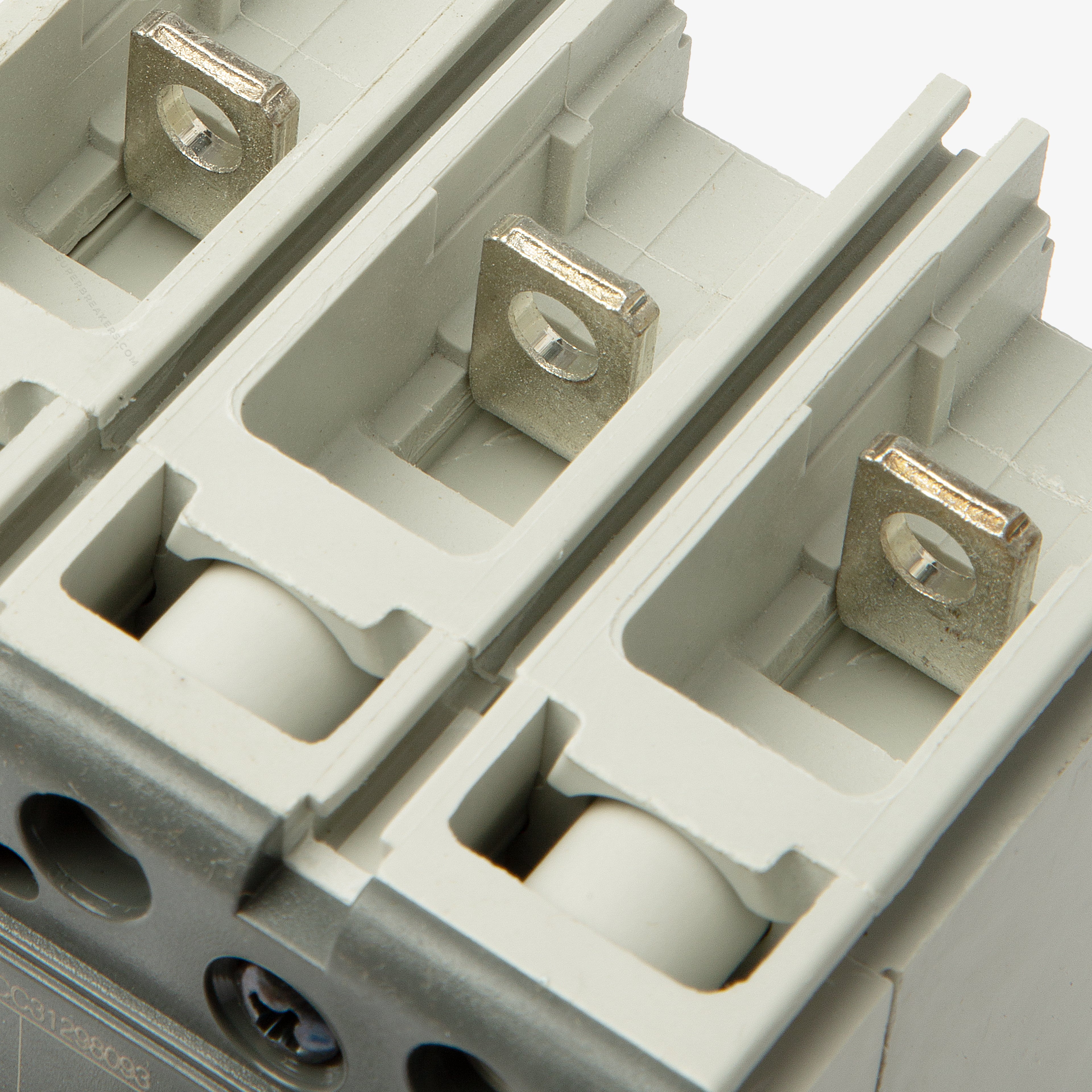

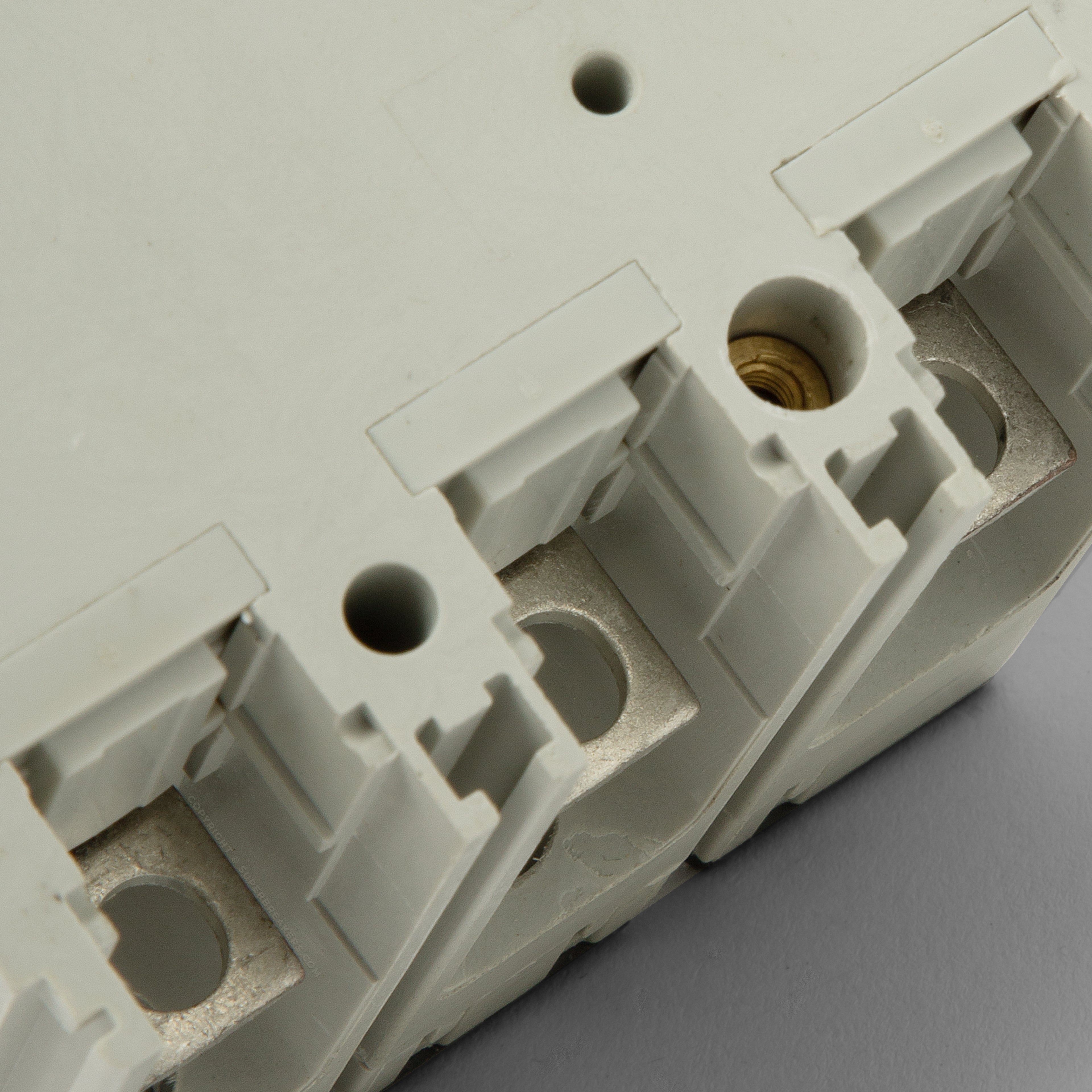

The XT1SU3060AFD000XXX includes factory-installed load side lugs that accept 10 AWG to 2/0 AWG copper or aluminum wire. The line side features front terminals with no lugs installed.
Can the XT1SU3060AFD000XXX be reverse fed?
Yes, this Tmax XT1 circuit breaker has reverse feed capability, allowing power to be supplied from either the line or load side terminals.
Is this breaker suitable for heating, air conditioning, and refrigeration applications?
Yes, the XT1SU3060AFD000XXX is HACR rated, making it suitable for protecting HVACR equipment.
Is this a current-limiting circuit breaker?
Yes, this SACE Tmax XT1 breaker features current-limiting operation to quickly interrupt faults and reduce let-through energy.
What does the S in the XT1SU3060AFD000XXX part number indicate?
The S designates the standard interrupting capacity tier for the XT1 frame, providing a 35kA rating at 480VAC and 65kA at 240VAC.
Can this breaker be used in DC applications?
Yes, it is rated for DC systems up to 250VDC with an interrupting capacity of 42kA.
