ABB / General Electric FBN26TE070RV Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
ABB / General Electric
FBN26TE070RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN26TE070RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

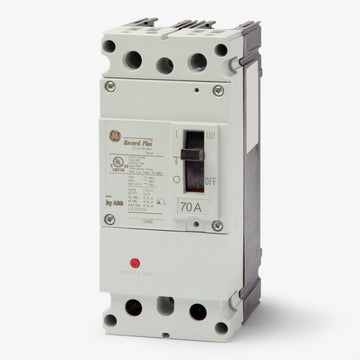

ABB / General Electric FBN26TE070RV - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN26TE060RV
60A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE090RV
90A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE050RV
50A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial environments, the GE FBN26TE070RV is a 70A, 2-pole molded case circuit breaker in the Record Plus FB frame series. It delivers consistent long-time and instantaneous trip functions. Designed to mount into GE Type AD panelboards, this breaker includes factory-installed load lugs and panel connections. It is a direct substitute for the discontinued TED124070. With a 150kAIC rating at 240VAC, it utilizes a double-break rotary contact design to minimize fault impact.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN26TE070RV |
| Series | FBN |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure |
Product FAQs
8 answersWhat panelboards are compatible with the FBN26TE070RV?
This FB frame breaker is designed specifically for GE Type AD panelboards, including A-Series lighting panels. The "RV" suffix in the catalog number indicates it includes factory-installed load lugs and the necessary line-side panel connections for bolt-on mounting.
Can the FBN26TE070RV replace older GE breakers?
Yes, this Record Plus FB100 frame breaker is a direct replacement for discontinued GE TED series breakers, such as the 70A TED124070, as well as other TED2, TED4, and TED6 models used in A-Series AD panelboards.
Is this circuit breaker suitable for reverse feed applications?
Yes, GE Record Plus FB frame breakers are not marked line and load, making them suitable for reverse feed applications.
What wire sizes do the load side lugs accept?
The included load side lugs accommodate 4 AWG to 1/0 AWG copper or aluminum (Cu/Al) conductors.
Is the FBN26TE070RV HACR rated?
Yes, this breaker is HACR marked, meaning it is approved for use with heating, air conditioning, and refrigeration equipment circuits.
What does the "N" in the FBN26TE070RV catalog number signify?
The "N" designates the specific interrupting rating tier for the Record Plus FB frame. It corresponds to a 65kAIC rating at 480VAC and a 150kAIC rating at 240VAC.
Does this breaker provide current limiting protection?
Yes, the GE Record Plus series utilizes a double-break rotary contact structure that provides current limiting performance. This design helps reduce arc flash energy and enhances overall system protection during a fault.
Are the trip settings adjustable on this breaker?
No, the FBN26TE070RV features a fixed thermal and fixed magnetic trip unit. Both the long time and instantaneous trip functions are factory set and cannot be adjusted in the field.
