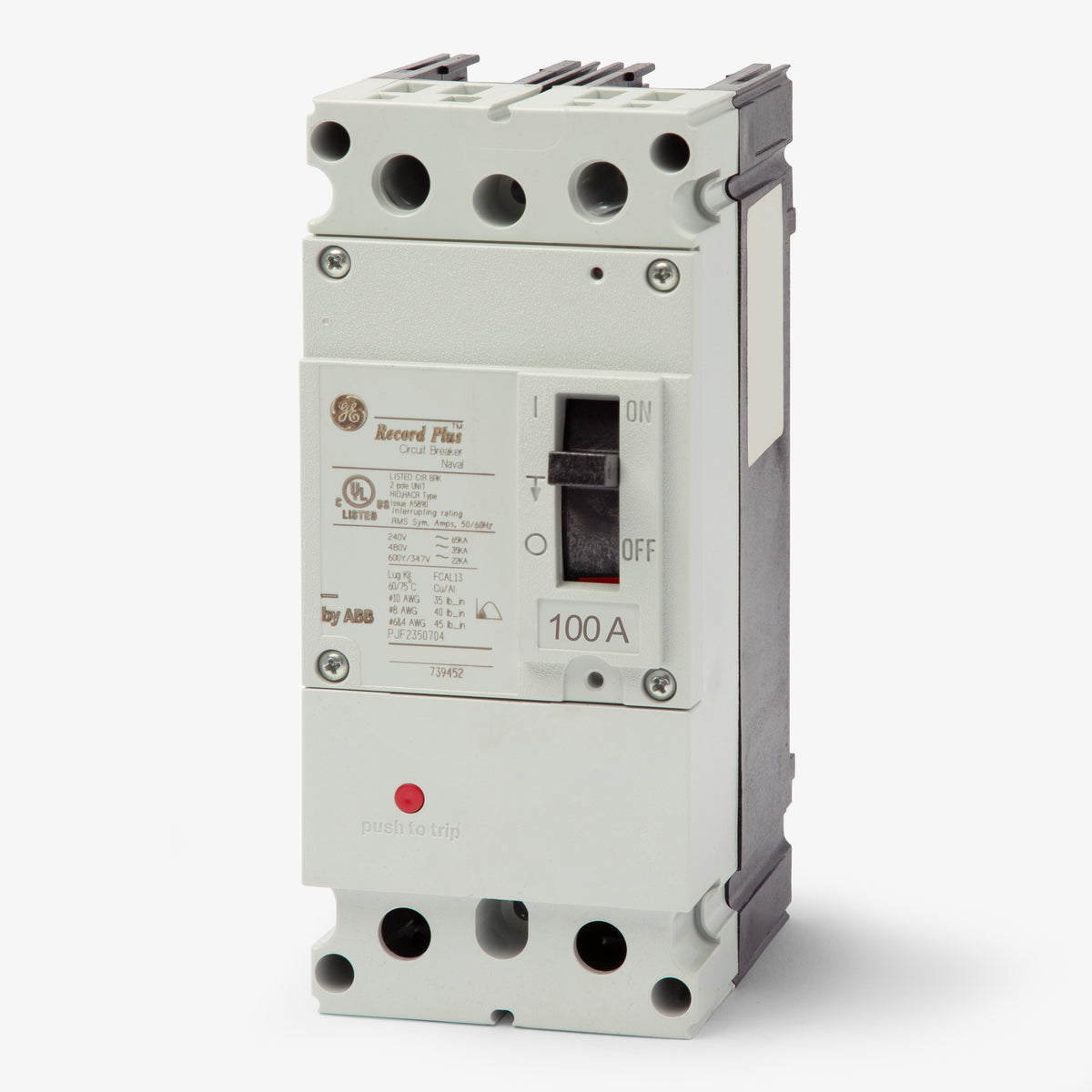

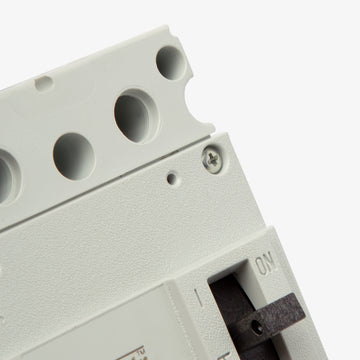

ABB / General Electric FBN26TE100RV Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
ABB / General Electric
FBN26TE100RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN26TE100RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN26TE100RV - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN26TE080RV
80A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE070RV
70A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN26TE060RV
60A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, this 100A Record Plus breaker offers reliable thermal-magnetic trip functions. Its double-break rotary contacts ensure rapid arc extinction and superior current limitation. The bolt-on configuration is engineered to install into GE Type AD panelboards. It provides an exact cross-reference to replace obsolete TED124100 breakers. With a 65kAIC rating at 480VAC, it safely clears high-level faults and features a non-interchangeable trip unit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN26TE100RV |
| Series | FBN |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
7 answersWhat obsolete GE circuit breaker does the FBN26TE100RV replace?
The FBN26TE100RV is a direct replacement for the obsolete GE TED124100 circuit breaker. It provides an exact cross-reference for 100A, 2-pole applications requiring a 65kAIC rating at 480VAC in GE Type AD panelboards.
What does the "RV" suffix indicate on this Record Plus circuit breaker?
The "RV" suffix indicates that the breaker is configured specifically for General Electric A-Series Type AD lighting panels. It comes factory-equipped with load-side lugs and bolt-on line connections designed exclusively for these panelboards.
Why might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this Record Plus FB frame breaker may feature either ABB or GE branding. The form, fit, function, and UL listings remain identical regardless of the label.
Can the trip settings on the FBN26TE100RV be adjusted in the field?
No, this breaker features a non-interchangeable, fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory-set and cannot be adjusted.
How is the FBN26TE100RV wired during installation?

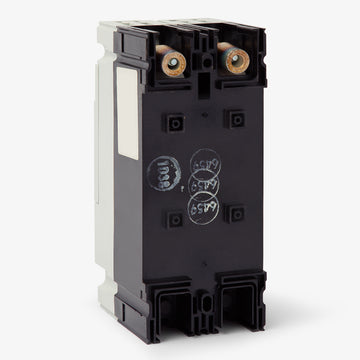

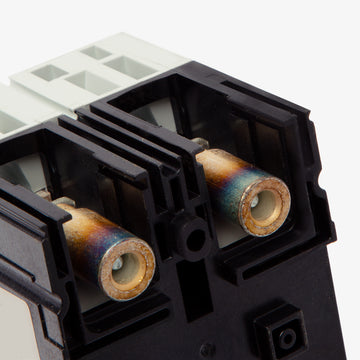

The line side features a bolt-on connection for direct mounting to the panelboard bus. The load side includes mechanical lugs that accept 4 AWG to 1/0 AWG copper or aluminum conductors.
Is the FBN26TE100RV suitable for reverse feed applications?
Yes, this Record Plus FB frame circuit breaker is suitable for reverse feed applications. It can be back-fed without affecting its thermal-magnetic trip characteristics or interrupting ratings.
Does this breaker carry an HACR rating?
Yes, the FBN26TE100RV is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific UL listing.
