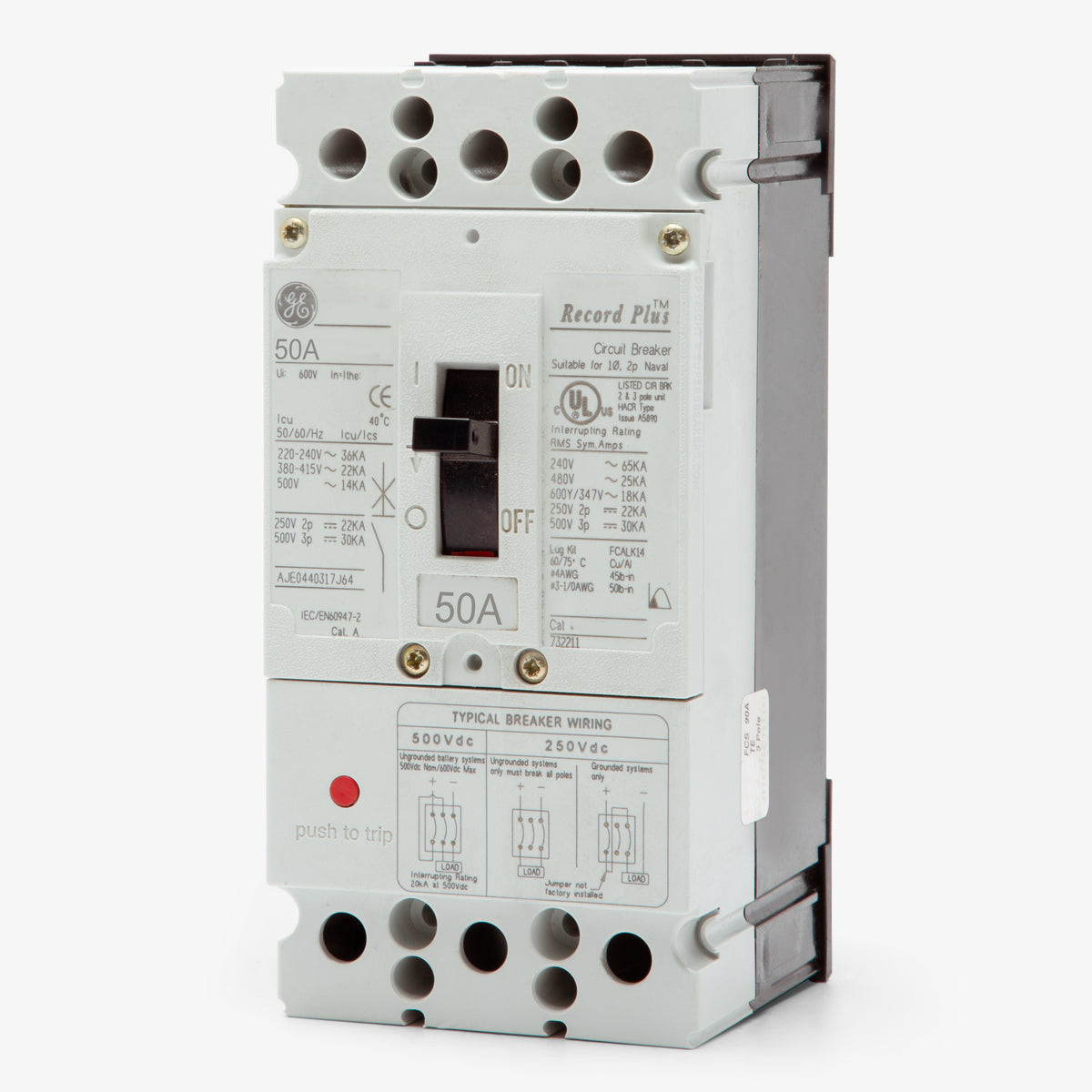

ABB / General Electric FCS36TE050R1 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Unit Mount
ABB / General Electric
FCS36TE050R1
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FCS36TE050R1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FCS36TE050R1 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFCS36TE030R
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE080R
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE020R
20A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable overcurrent protection, the GE FCS36TE050R1 is a 50A, 3-pole MCCB from the Record Plus family. It is engineered for demanding industrial and commercial power systems. This unit-mount breaker fits GE Record Plus switchboards and panelboards. When upgrading facilities, it crosses over to the ABB Tmax XT1 series (XT1NU3050AFF000XXX). It provides a 25kAIC interrupting capacity at 480VAC with a fixed thermal-magnetic LI trip. The "R1" suffix indicates lugs are pre-installed.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FCS36TE050R1 |
| Series | FCS |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 500VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Record Plus Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, HID, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Double-Break Rotary Contact Structure |
Product FAQs
6 answersWhat is the direct replacement for the GE FCS36TE050R1?
The GE FCS36TE050R1 has been replaced by the ABB Tmax XT1 series. The direct cross-reference is the ABB XT1NU3050AFF000XXX.
What does the "R1" suffix indicate on the FCS36TE050R1?

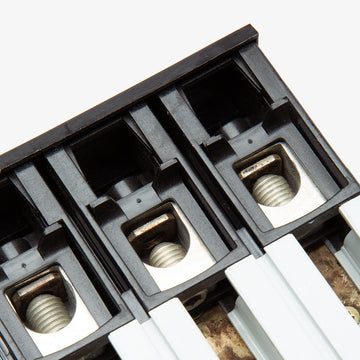

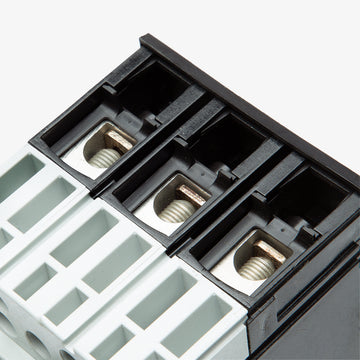

The "R1" suffix in the catalog number indicates that both line and load lugs are factory-installed on the breaker.
What does the "S" stand for in the FCS series designation?
In the GE Record Plus FC frame family, the "S" indicates standard interrupting capacity.
Is the FCS36TE050R1 suitable for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment circuits.
Can this breaker be used for high-intensity discharge lighting circuits?
Yes, the 50A Record Plus FC frame breakers are UL listed as HID, making them suitable for switching high-intensity discharge lighting loads.
Does this breaker feature current-limiting capabilities?
Yes, the Record Plus FC frame utilizes a double-break rotary contact structure that provides highly effective current-limiting performance during short-circuit events.
