ABB / General Electric FCS36TE030R Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
ABB / General Electric
FCS36TE030R
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FCS36TE030R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

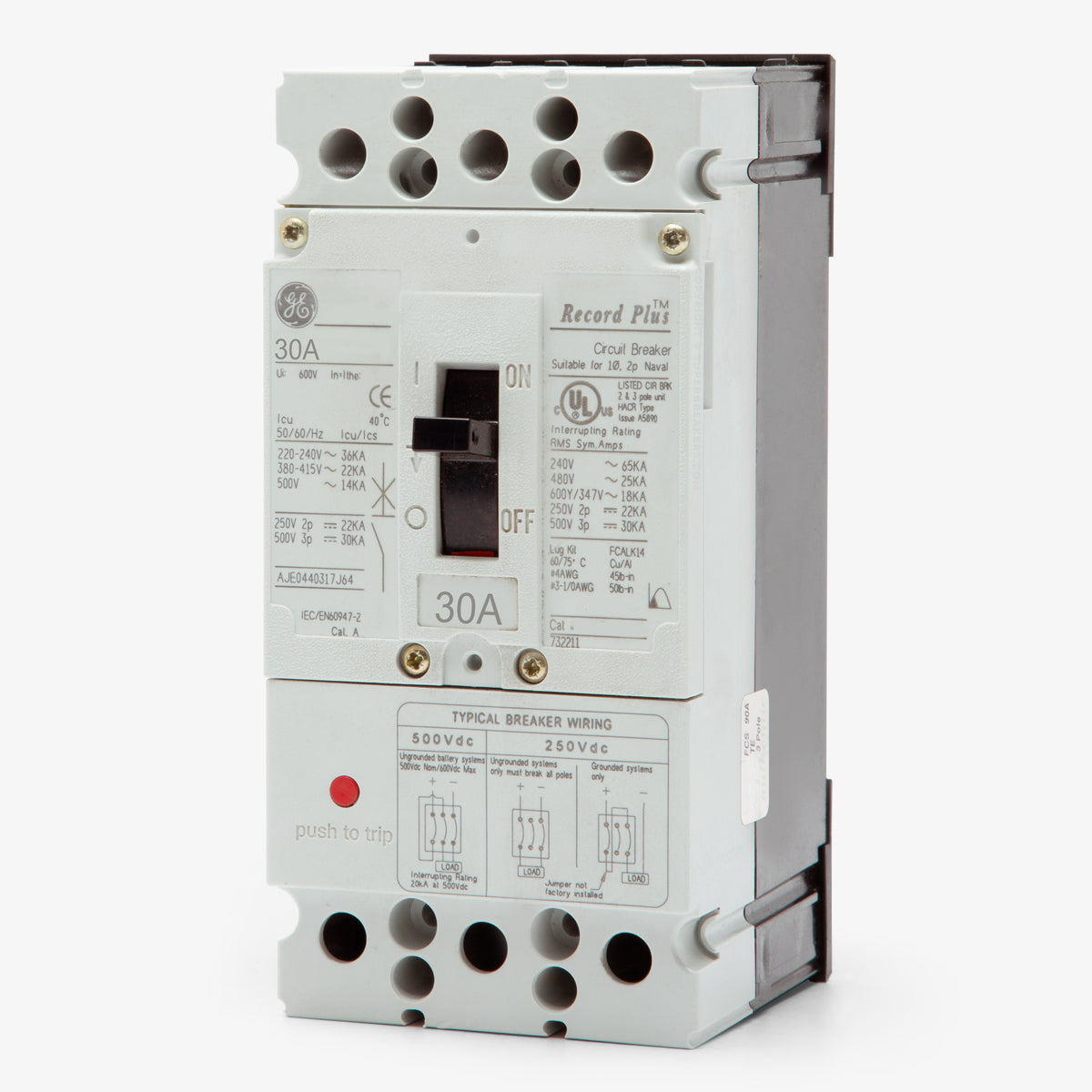

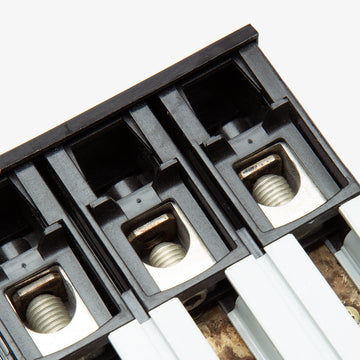

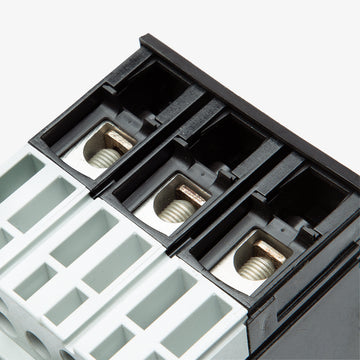

ABB / General Electric FCS36TE030R - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFCS36TE020R
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE015R
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE080R
80A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the FCS36TE030R features an advanced double-break rotary contact design that enhances current-limiting performance. The thermal-magnetic trip unit provides fixed long-time and instantaneous protection. This unit-mount breaker is engineered to fit GE Record Plus panelboards. For future upgrades, this 30-amp model is replaced by the ABB Tmax XT1NU3030AFF000XXX. With a 25 kAIC rating at 480VAC, it is both HACR and HID rated for specialized loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FCS36TE030R |
| Series | FCS |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Record Plus Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits (FCALK), Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Lugs Not Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, HID, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Double-Break Rotary Contact Structure |
Product FAQs
8 answersWhat wire size do the lugs on this 30A FC-frame breaker accept?
When equipped with standard 30A lugs (such as the FCALK13 kit), this breaker accepts #10 to #4 AWG copper or aluminum wire.
What does the 'R' suffix in the FCS36TE030R catalog number indicate?
In the GE Record Plus series, a catalog number ending in 'R' indicates that the breaker is supplied from the factory without lugs. If you need factory-installed line and load lugs, look for the R1 suffix (FCS36TE030R1), or purchase the appropriate FCALK lug kits separately.
What panelboards are compatible with the FCS36TE030R?
This FC-frame breaker is designed for use in GE Record Plus panelboards and switchboards.
Is the trip unit on the FCS36TE030R adjustable?
No, this breaker features a fixed thermal and fixed magnetic (LI) trip unit. It does not offer adjustable trip settings.
Can the FCS36TE030R be used in DC applications?
Yes, this thermal-magnetic breaker is rated for DC applications up to 500VDC, where it provides a 10kA interrupting capacity.
Is the FCS36TE030R HACR rated?
Yes, this GE Record Plus FC-frame breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Is this breaker suitable for high-intensity discharge (HID) lighting?
Yes, the FCS36TE030R is HID rated, meaning it can safely switch high-intensity discharge lighting loads.
What is the direct ABB replacement for the GE FCS36TE030R?
Since ABB acquired GE Industrial Solutions, the FCS36TE030R is being transitioned to the ABB Tmax XT1 series. The direct replacement for this 30A breaker is catalog number XT1NU3030AFF000XXX.
