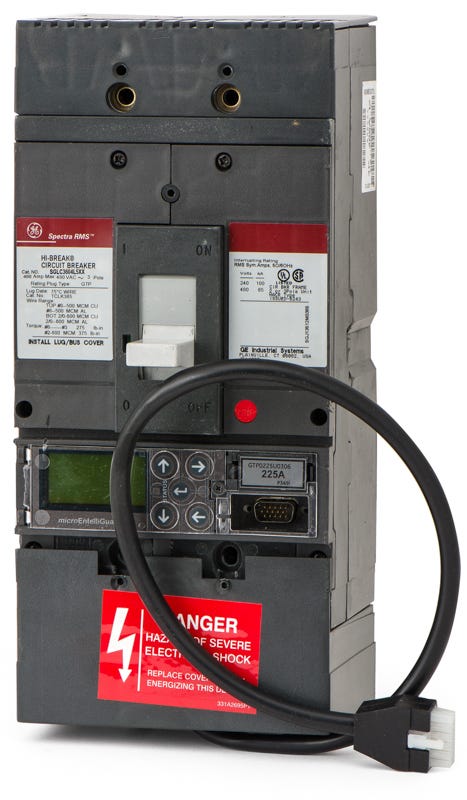

ABB / General Electric SGLC3604L5XX Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
ABB / General Electric
SGLC3604L5XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGLC3604L5XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGLC3604L5XX - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSGLC3604L4XX
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLA36AT0400
400A 3 Pole Molded Case Circuit Breaker Frame Only
ABB / General ElectricSGLB36BB0400
400A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical loads, the GE SGLC3604L5XX is a 100% rated molded case circuit breaker equipped with an advanced LSIA trip unit. This 3-pole, 400A device provides Long-Time, Short-Time, Instantaneous, and Ground Fault Alarm functions, allowing for critical system monitoring without initiating a trip. It mounts into GE Spectra Series panelboards, switchboards, and motor control centers. The SG frame breaker delivers a 65kAIC rating at 480V and features true RMS sensing.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLC3604L5XX |
| Series | SGLC |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | SGLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 2/0 AWG-500 kcmil or (1) 8 AWG-600 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIA |
| Trip Function | Long-Time, Short-Time, Instantaneous, Alarm |
| Trip Adjustability | Adjustable |
| Trip Unit Model | microEntelliGuard |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kit, Rating Plugs, Bell Alarm, Mechanism Operator |
|---|---|
| Accessories | Lugs Not Included, Rating Plug Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, HACR Rated, Reverse Feed, True RMS Sensing, Interchangeable Rating Plug, Ground Fault Alarm, Current Limiting |
Product FAQs
6 answersWhat enclosures are compatible with the SGLC3604L5XX?
This SG-frame breaker is designed for use in GE Spectra Series panelboards, switchboards, and motor control centers.
What does the LSIA trip function on this breaker indicate?
The LSIA designation means the electronic trip unit features adjustable Long-time, Short-time, and Instantaneous trip functions, along with a Ground Fault Alarm that alerts operators to a fault without tripping the breaker.
What type of trip unit is installed in the SGLC3604L5XX?
This breaker is equipped with a microEntelliGuard solid-state electronic trip unit, which provides highly accurate, adjustable protection.
Does this breaker provide true RMS sensing?
Yes, as part of the Spectra RMS family, this breaker utilizes true RMS sensing to accurately monitor current and provide reliable microprocessor-based protection.
Can the SGLC3604L5XX be reverse fed?
Yes, this solid-state molded case circuit breaker is suitable for reverse-fed applications.
What is the modern replacement for the GE Spectra SGLC3604L5XX?
The GE Spectra RMS family is a legacy product line. ABB has officially replaced these SG-frame breakers with the Tmax XT5 series.
