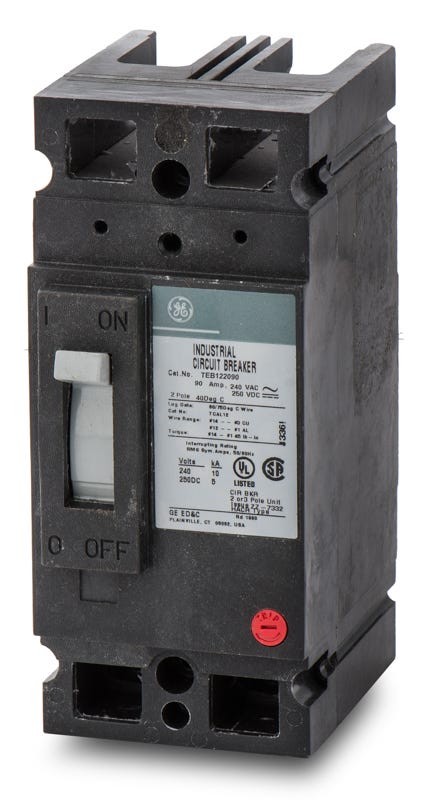

ABB / General Electric TEB122090WL Molded Case Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
ABB / General Electric
TEB122090WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB122090WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB122090WL - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEB122030WL
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB122020WL
20A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132090WL
90A 3 Pole Molded Case Circuit Breaker
Description
Designed for standalone applications, the GE TEB122090WL is a 2-pole, 90A unit mount circuit breaker. The WL suffix indicates it comes factory-equipped with line and load lugs, making it ready for wire termination. This E-Frame breaker mounts securely into industrial enclosures, switchboards, and motor control centers. It serves as an exact replacement for the legacy TE122090WL. Delivering 10kAIC at 240VAC, the breaker utilizes fixed thermal-magnetic trip technology and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122090WL |
| Series | TEB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhat does the WL suffix mean in the TEB122090WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with both line and load side copper or aluminum (Cu/Al) lugs, making it ready for feed-thru wire termination.
What equipment is the TEB122090WL designed to be installed in?
As a unit mount breaker with lugs on both ends, it is designed for standalone applications in compatible industrial enclosures, switchboards, and motor control centers.
Is the TEB122090WL a direct replacement for older TE series breakers?
Yes, this E150 line unit serves as an exact form, fit, and functional replacement for legacy TE122090 and TE122090WL circuit breakers.
Can I use the TEB122090WL for reverse feed applications?
Yes, all GE TEB, TED, and THED molded case circuit breakers are suitable for reverse feed installations.
Why might my TEB122090WL arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, your breaker may feature ABB or GE branding, but the physical dimensions and electrical specifications remain identical.
Is the TEB122090WL breaker HACR rated?
Yes, this thermal magnetic circuit breaker is HACR certified, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What wire sizes are accepted by the lugs on the TEB122090WL?
The factory-installed line and load lugs accept copper or aluminum wire ranging from 3 AWG to 3/0 AWG.
