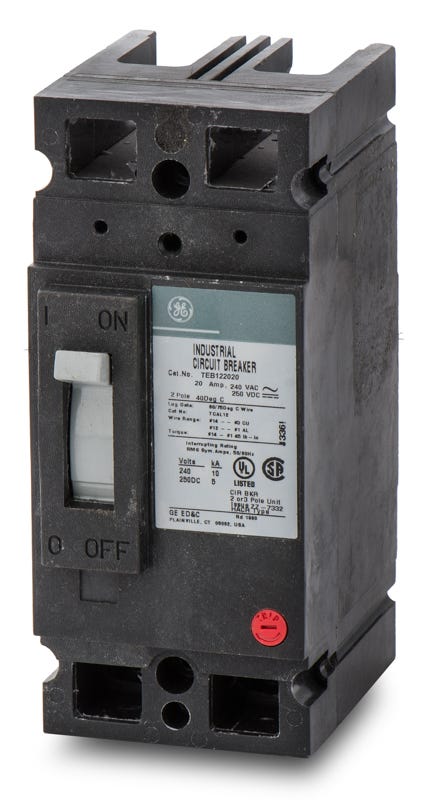

ABB / General Electric TEB122020WL Molded Case Circuit Breaker
- 20A
- 2 Pole
- Unit Mount
ABB / General Electric
TEB122020WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB122020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB122020WL - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TEB122020WL - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB122020WL |
| Series | TEB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB122020WL - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTEB122060WL
60A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111020WL
20A 1 Pole Molded Case Circuit Breaker
Description
Designed for versatile installation, the GE TEB122020WL is a 2-pole, 20A unit mount molded case circuit breaker. The "WL" designation indicates it comes factory-equipped with line and load lugs, making it perfect for switchboards, motor control centers, and individual enclosures. This E150 frame breaker provides reliable thermal-magnetic protection with a 10kAIC rating at 240VAC. It is HACR rated, reverse feed capable, and features a non-interchangeable trip unit for industrial safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat does the WL suffix indicate on the TEB122020WL catalog number?
The WL suffix indicates the breaker comes factory-equipped with lug terminals on both the line and load sides.
Which panelboards and enclosures are compatible with the TEB122020WL?
This breaker is designed for installation in GE A-Series panelboards, switchboards, motor control centers, and individual enclosures.
Is this circuit breaker rated for DC applications?
Yes, it carries a DC rating with an interrupting capacity of 5kA at 125/250VDC, in addition to its standard AC ratings.
Can the TEB122020WL be reverse fed?
Yes, this thermal magnetic breaker is reverse feed capable, allowing power to be supplied to either the line or load terminals.
What wire gauge range do the factory lugs accept?
The included lugs are rated for 14 AWG to 8 AWG wire and are compatible with both copper and aluminum conductors.
What frame family does the TEB122020WL belong to?
It is part of the GE E150 line and utilizes a standard E-Frame footprint.
How is the TEB122020WL mounted?
It utilizes a unit mount, feed-thru configuration, meaning it bolts directly into the enclosure or panel rather than using a plug-in connection.
