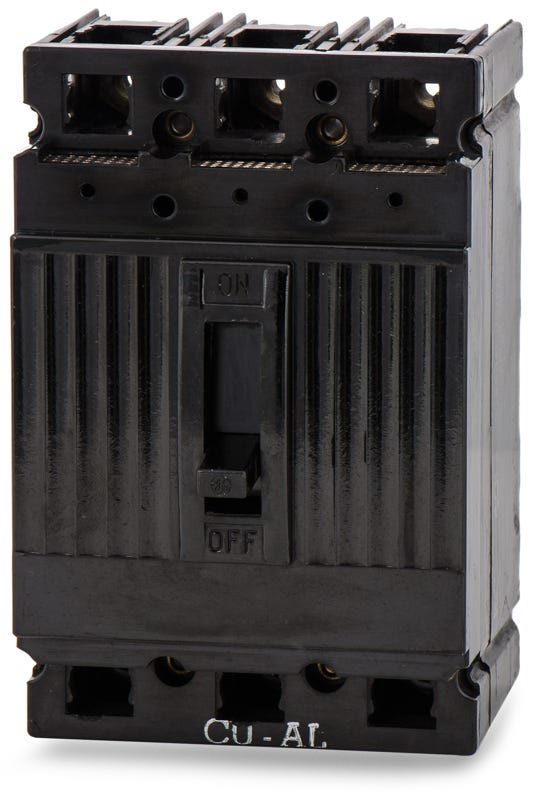

ABB / General Electric TEF136090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
TEF136090
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEF136090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEF136090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEF134050

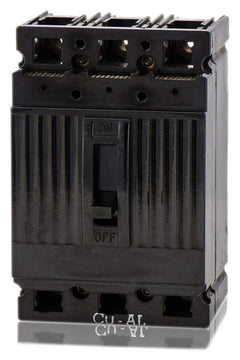

50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEF134030
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEF136030
30A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial applications, the TEF136090 delivers robust overcurrent protection within GE A-Series panelboards. This 90-amp, three-pole breaker utilizes fixed thermal-magnetic trip technology. As a legacy E-Frame component, it features bolt-on mounting for secure installation. Facilities maintaining older switchboards can utilize this unit, though it has been superseded by the TED136090 series. Rated for 14kA interrupting capacity at 480VAC, the device includes TCAL15 lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEF |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | TEF |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Includes TCAL15 Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhat types of equipment are compatible with the TEF136090 circuit breaker?
The TEF136090 is designed for use in GE A-Series panelboards, GE switchboards, and motor control centers. It features a bolt-on connection for secure mounting directly to the bus.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory lugs accept copper wire from 3 AWG to 3/0 AWG, or aluminum wire from 1 AWG to 3/0 AWG. Ensure proper torque specifications are followed during installation.
Can the TEF136090 be used in DC applications?
Yes, this breaker is rated for DC applications up to 250VDC, providing a maximum interrupting capacity of 10kA at that voltage.
Does this breaker have adjustable trip settings?
No, the TEF136090 features a fixed thermal and fixed magnetic trip unit. It does not offer adjustable settings for the long time or instantaneous trip functions.
Is the TEF136090 part of the GE E Frame family?
Yes, the TEF136090 belongs to the legacy General Electric E Frame molded case circuit breaker family. It is a direct replacement for existing 90A, 3-pole TEF breakers in GE systems.
What type of protection does the TEF136090 provide?
This breaker utilizes a thermal magnetic trip unit to provide both long time overload protection and instantaneous short circuit protection.
