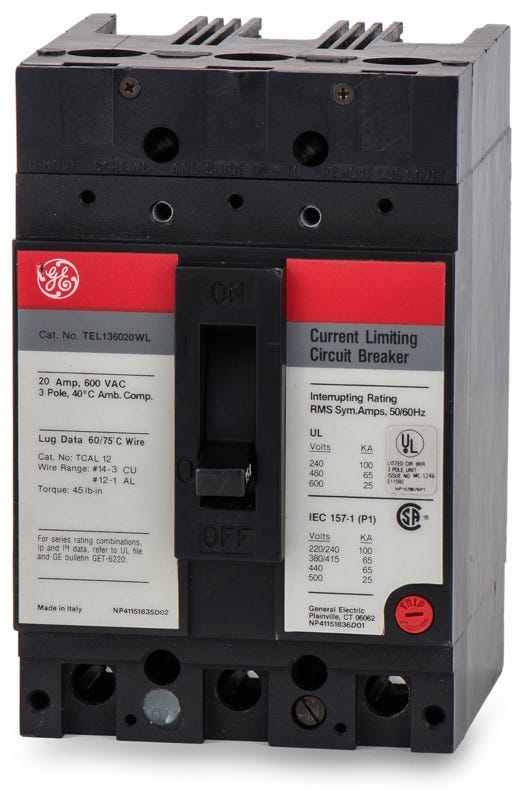

ABB / General Electric TEL134020WL Miniature Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL134020WL
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEL134020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL134020WL - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEL134025WL
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136015WL
15A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136050WL
50A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE TEL134020WL delivers current-limiting protection for heavy-duty systems. The thermal-magnetic trip unit ensures precise response to overloads and short circuits. This unit-mount breaker installs into GE A-Series panelboards, switchboards, and motor control centers. It serves as an upgrade for the standard TED134020WL and transitions to the Tmax XT1N series. Rated at 65 kAIC at 480V, it restricts let-through energy during faults.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL134020WL |
| Series | TEL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu) or 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
| Special Features | Current Limiting |
