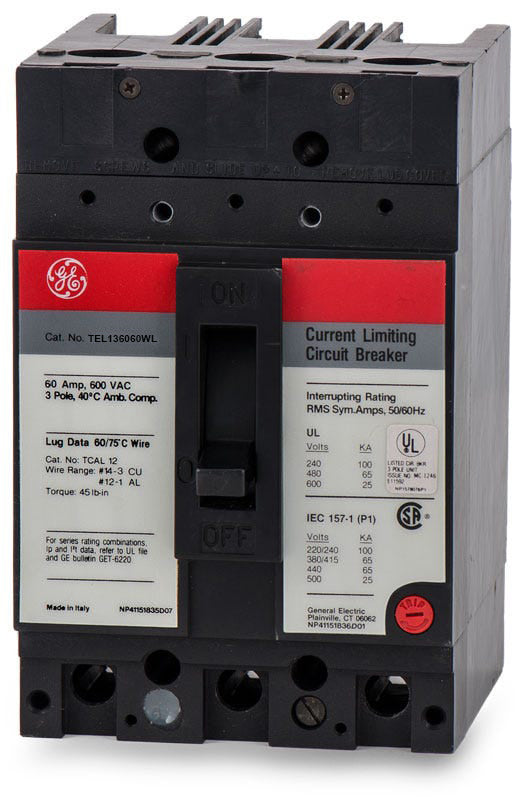

ABB / General Electric TEL136060WL Miniature Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136060WL
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136060WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136060WL - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEL136050WL
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL134025WL
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136100WL
100A 3 Pole Miniature Circuit Breaker
Description
Providing high interrupting capacity, this 60A current-limiting MCCB is essential for demanding environments. Its specialized design limits peak let-through energy, ensuring superior protection for downstream components. The unit-mount breaker integrates into GE A-Series panelboards and Spectra switchboards. While this legacy model is highly sought after, it is officially replaced by the Tmax XT2N series. Features include a 65kAIC rating at 480VAC and a quick-make/quick-break mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu) or 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
5 answersWhat equipment is the TEL136060WL breaker compatible with?
This E-frame breaker is designed for use in GE A-Series panelboards, Spectra switchboards, enclosures, and motor control centers.
What does the WL suffix in the TEL136060WL catalog number indicate?
The WL suffix means the breaker includes factory-installed copper and aluminum compatible lugs on both the line and load sides, allowing for immediate wiring without needing to order separate terminal kits.
Is the TEL136060WL a current-limiting circuit breaker?
Yes, the TEL frame is a high-interrupting, current-limiting molded case circuit breaker. It is designed to limit peak let-through energy during high fault current events to protect downstream components.
What frame family does the TEL136060WL belong to?
It is part of the GE 150A E-frame product line. While this specific unit has a 60A trip rating, it shares the same physical footprint as other E150 frame breakers for integration into compatible GE hardware.
Is the TEL136060WL still actively manufactured by GE?
This is a legacy GE Industrial Solutions product. Following the ABB acquisition of GE Industrial Solutions, this specific E-frame model is considered obsolete and is typically replaced by the ABB Tmax XT2N series for new installations.
