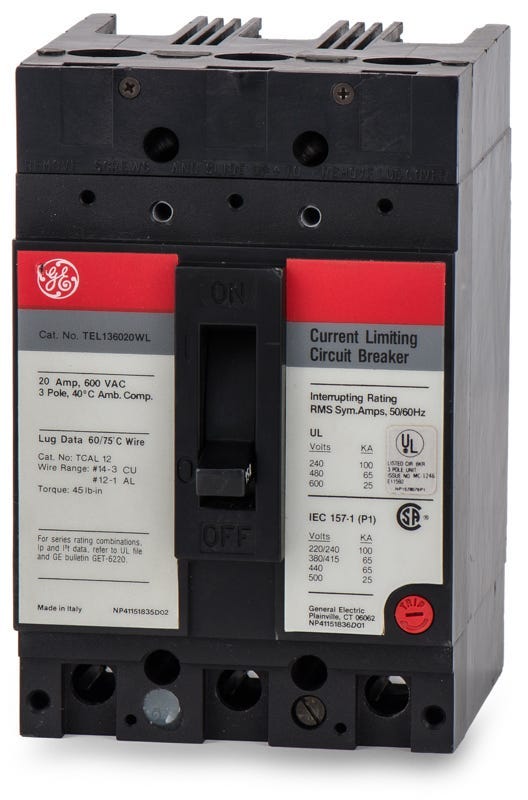

ABB / General Electric TEL136100WL Miniature Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136100WL
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136100WL - 100A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TEL136100WL - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136100WL |
| Series | TEL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
| Special Features | Current Limiting |
Quantity
ABB / General Electric TEL136100WL - 100A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
| Special Features | Current Limiting |
Similar Items
ABB / General ElectricTEL136070WL
70A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136150
150A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136050WL
50A 3 Pole Miniature Circuit Breaker
Description
Providing advanced fault protection, the TEL136100WL is a 100A, 3-pole current-limiting MCCB that includes both line and load lugs. It is designed to restrict let-through current during short circuits, effectively shielding downstream devices from damage. This breaker mounts into GE A-Series panelboards, enclosures, and switchboards. While it serves as a drop-in replacement for older TED and THED models, it is currently replaced by the modern ABB Tmax XT2N series for new installations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TEL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
| Special Features | Current Limiting |
Product FAQs
8 answersWhat equipment is compatible with the TEL136100WL circuit breaker?
This E-Frame breaker mounts into GE A-Series panelboards, Spectra Series switchboards, motor control centers, and standalone enclosures.
What does the "WL" suffix indicate in the TEL136100WL catalog number?
The "WL" suffix signifies that the breaker includes factory-installed copper/aluminum (Cu/Al) lugs on both the line and load sides for immediate wiring.
Can the TEL136100WL be used to upgrade older GE E-Frame breakers?
Yes, it serves as a direct drop-in replacement for older TED and THED frame models while providing upgraded current-limiting protection. For completely new installations, the ABB Tmax XT2 series is the modern equivalent.
How does the current-limiting feature of the TEL136100WL benefit a power system?
As a current-limiting molded case circuit breaker, it restricts the peak let-through current during a short circuit. This rapid interruption helps shield downstream devices and wiring from severe thermal and mechanical damage.
What are the conductor requirements for the TEL136100WL lugs?
The factory-installed lugs are rated for both copper and aluminum (Cu/Al) wire, accepting conductor sizes from 4 AWG up to 300 kcmil.
Is the TEL136100WL suitable for direct current (DC) systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for DC applications up to 500VDC, delivering a 10kA interrupting capacity at both 250VDC and 500VDC.
How is the TEL136100WL installed into a panelboard?
It utilizes a unit-mount, feed-thru connection. Instead of plugging onto a busbar, the breaker bolts directly to the equipment chassis or mounting pan, and conductors are landed on both the line and load lugs.
Can the trip curve be adjusted on the TEL136100WL?
No, this breaker is equipped with a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit (LI) trip functions are factory-set and non-interchangeable.
