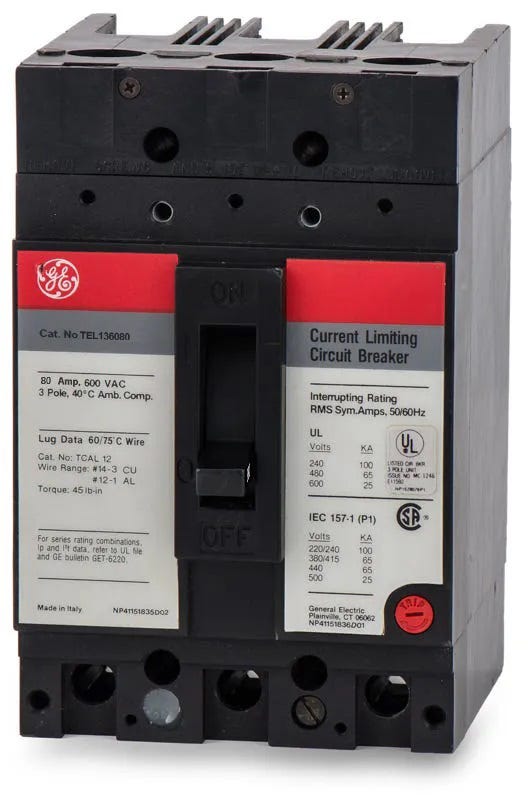

ABB / General Electric TEL136080 Miniature Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
ABB / General Electric
TEL136080
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEL136080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEL136080 - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEL136100
100A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136100WL
100A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEL136050WL
50A 3 Pole Miniature Circuit Breaker
Description
Delivering advanced fault protection, the GE TEL136080 is an 80A E-Frame breaker engineered to limit peak current using fixed thermal and magnetic elements. The unit-mount design is compatible with GE A-Series panelboards, Spectra switchboards, and motor control centers. It provides an upgraded alternative to TED136080 models. By restricting let-through energy, this 100kAIC-rated breaker minimizes stress on electrical infrastructure. It includes standard load lugs for secure termination.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136080 |
| Series | TEL |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu) or 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL12A) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip |
| Special Features | Current Limiting |
Product FAQs
6 answersWhich panelboards and switchboards are compatible with the TEL136080 breaker?
This E-frame breaker is designed for use in GE A-Series panelboards, GE Spectra switchboards, and compatible motor control centers.
What wire sizes are accepted by the lugs on the TEL136080?
The standard lugs accept 6 AWG to 2/0 AWG copper wire, or 4 AWG to 2/0 AWG aluminum wire. Ensure proper torque specifications are followed during installation.
Are the trip settings on this E-frame breaker adjustable?
No. The TEL136080 features a thermal magnetic trip unit with fixed thermal (long-time) and fixed magnetic (instantaneous) settings.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Legacy GE breakers like the TEL series are now manufactured and supported under the ABB brand, maintaining the exact same form factor and specifications.
Is the TEL136080 rated for DC applications?
Yes, in addition to its AC ratings, this breaker is rated for 10kA at 250VDC and 10kA at 500VDC, making it suitable for specific direct current control and distribution applications.
Can this breaker be used in current limiting applications?
Yes, the TEL series is specifically designed as a current limiting molded case circuit breaker. It provides high interrupting capacity to protect downstream equipment from severe short circuits.
