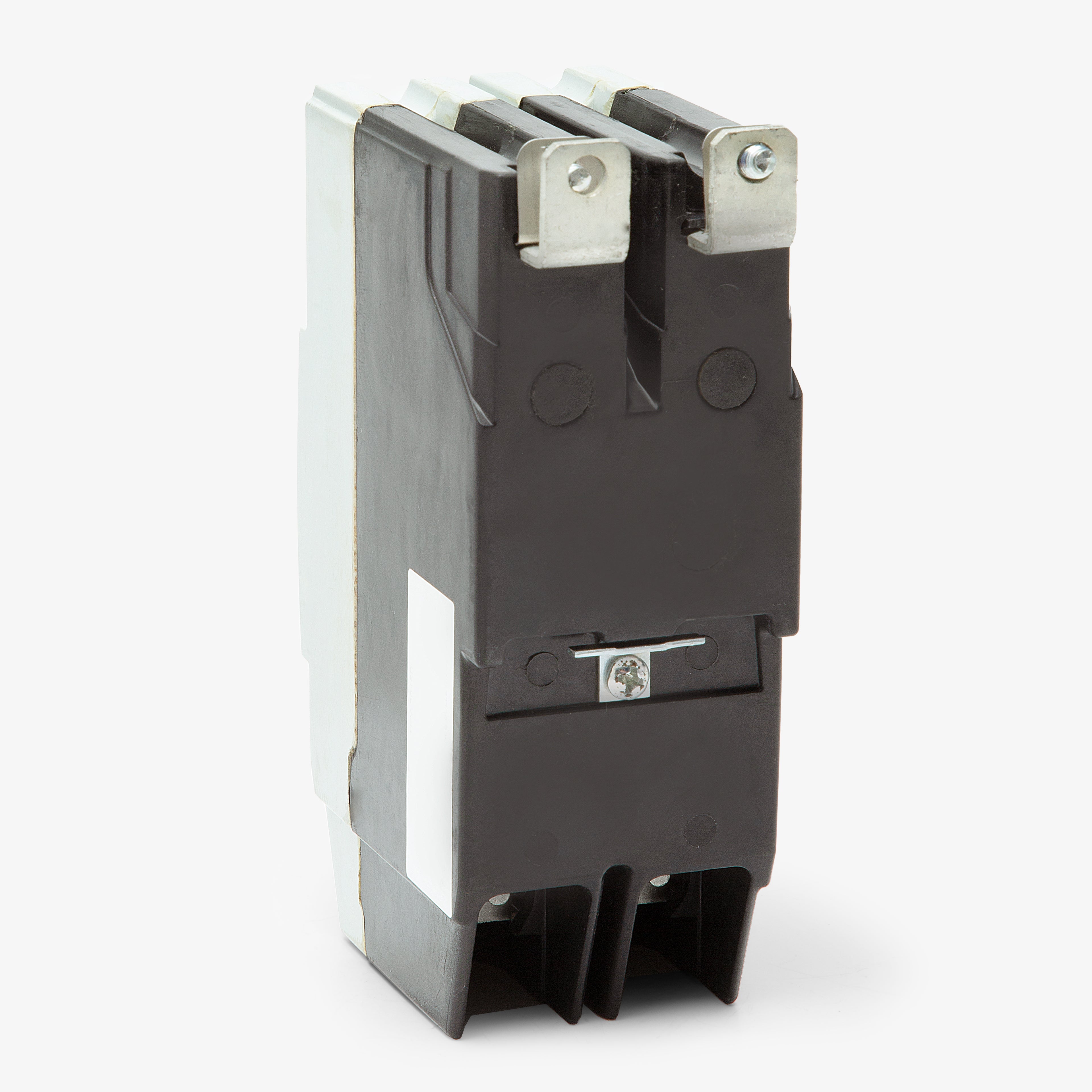

ABB / General Electric TEYH2060B Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
ABB / General Electric
TEYH2060B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYH2060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYH2060B - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYH2050B
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH2080B
80A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH2040B
40A 2 Pole Miniature Circuit Breaker
Description
Providing essential overcurrent defense, this 60A miniature breaker utilizes fixed thermal and magnetic trip elements. It features a common trip mechanism to ensure both poles open simultaneously during a fault. The device fastens securely into GE A-Series lighting panelboards via a standard bolt-on connection. It accepts a wide range of wire sizes from 10 to 4 AWG through reliable load lugs. Rated at 35kAIC for 480Y/277VAC systems, it meets rigorous commercial standards and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYH |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the TEYH2060B breaker?
This bolt-on breaker is designed specifically for use in GE A-Series lighting panelboards. It mounts directly to the panelboard bus.
What is the difference between standard TEY and TEYH breakers?
The H in the TEYH prefix indicates a high interrupting capacity. While standard TEY breakers offer 14kAIC at 277/480VAC, the TEYH series provides an upgraded 35kAIC rating at the same voltage.
What wire sizes and materials are accepted by the lugs?
The terminal lugs on this breaker accept 10 AWG to 4 AWG wire. They are rated for use with either copper (Cu) or aluminum (Al) conductors.
Why might this breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the exact manufacturing date, the TEYH2060B may feature either GE or ABB branding. The physical dimensions, specifications, and UL listings are identical regardless of the logo.
How is this breaker secured inside the panel?
The TEYH2060B is a bolt-on breaker. It features a mounting bracket that screws directly into the chassis and bus bars of an A-Series panelboard. Always ensure the panel is completely de-energized before installation.
