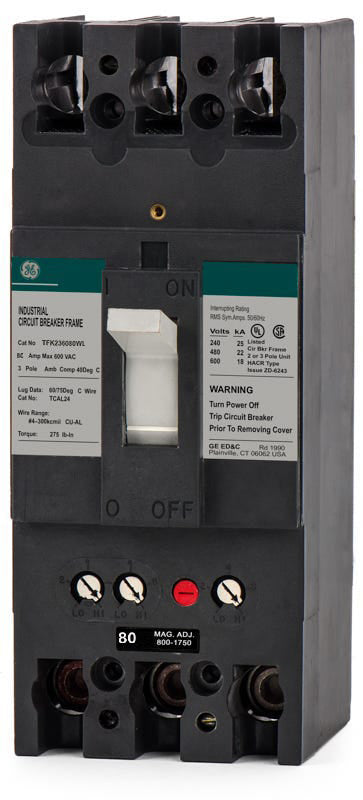

ABB / General Electric TFK236080WL Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
ABB / General Electric
TFK236080WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFK236080WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFK236080WL - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items

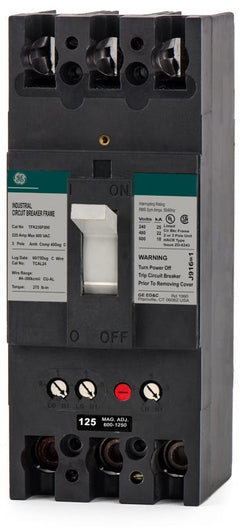

ABB / General ElectricTFK236125WL
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236175WL
175A 3 Pole Molded Case Circuit Breaker
Description
Tailored for industrial power systems, the TFK236080WL is a unit-mount molded case circuit breaker providing essential long-time and instantaneous protection. This 3-pole, 80-amp device handles heavy-duty commercial applications. The unit-mount configuration installs into GE A-Series panelboards and switchboards where bolt-on bus connections are not utilized. It is replaced by the Tmax XT4 series via a retrofit kit. With a 22 kAIC rating at 480VAC, it features line and load lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236080WL |
| Series | TFK |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | TFK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
6 answersWhat panelboards are compatible with the TFK236080WL circuit breaker?
This breaker is designed for use in GE A-Series panelboards, switchboards, motor control centers, and individual enclosures that accept unit-mount F-Frame breakers.
Is the GE TFK236080WL still manufactured, or is there a direct replacement?
As a legacy GE F-Frame breaker, the TFK236080WL is often replaced by the ABB Tmax XT4 series using a specific retrofit kit for modern panelboard upgrades.
Does the TFK236080WL come with lugs installed?
Yes, this feed-thru circuit breaker includes standard line and load lugs that accept 4 AWG to 300 kcmil copper or aluminum wire.
Can the trip unit on the TFK236080WL be adjusted?
This breaker features a thermal-magnetic trip unit with fixed thermal protection for long-time overloads and an adjustable magnetic setting for instantaneous short-circuit protection.
Can I use the TFK236080WL in a DC application?
Yes, this 3-pole breaker is rated for up to 250VDC with an interrupting capacity of 10 kAIC, making it suitable for specific direct current systems.
Does the TFK236080WL have an interchangeable trip unit?
Yes, the TFK frame features an interchangeable trip unit design, allowing for flexibility if the amperage requirements of your system change in the future.
