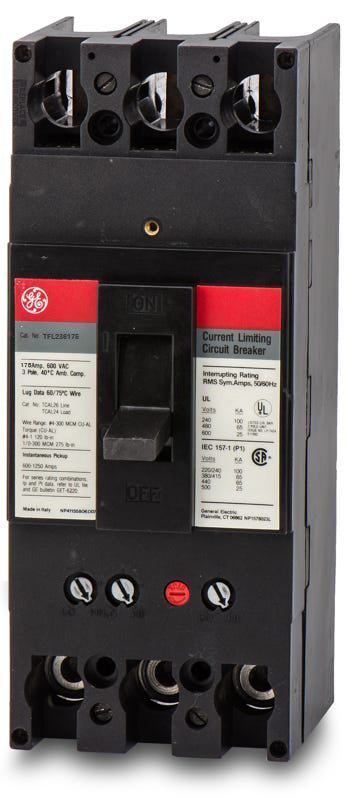

ABB / General Electric TFL236175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
ABB / General Electric
TFL236175
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFL236175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFL236175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
Eaton / Cutler-HammerJGH3175FAG
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
A dependable solution for commercial facilities, the GE TFL236175 is a 3-pole, 175A legacy circuit breaker. It belongs to the F-Frame family. The unit-mount design allows installation into GE A-Series panelboards and switchboards. When replacing this model, use the XT4HU3175BFF000XXX with the required lug and retrofit kits. Equipped with an adjustable magnetic trip, it delivers a 65 kAIC rating at 480VAC. This current-limiting breaker includes TCAL25 lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFL236175 |
| Series | TFL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (TCAL25) |
| Standards | NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, Common Trip, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat types of electrical equipment are compatible with the TFL236175 breaker?
This F-frame breaker is designed for use in GE A-Series panelboards, switchboards, and motor control centers. It features a bolt-on unit mount configuration for secure installation in these enclosures.
How does the adjustable magnetic trip function work on this breaker?
The TFL236175 features a fixed thermal and adjustable magnetic (LI) trip unit. While the continuous current rating is fixed at 175 amps, the instantaneous magnetic trip can be adjusted to coordinate with downstream protective devices and prevent nuisance tripping during motor inrush currents.
What wire sizes are accepted by the standard lugs on the TFL236175?
The standard lugs accept copper or aluminum conductors ranging from 4 AWG to 300 kcmil. Always verify the specific torque requirements printed on the breaker label to ensure a safe and compliant termination.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, legacy GE F-frame molded case circuit breakers like the TFL236175 may be branded as either GE or ABB depending on the manufacturing date, but they are physically and electrically identical.
Can this breaker be used in direct current applications?
Yes, the TFL236175 is rated for DC applications up to 250VDC, providing an interrupting capacity of 10kA. It is suitable for both AC and DC systems within its specified voltage limits.
What safety procedures are required when installing this F-frame breaker?
Installation must be performed by a licensed electrician. Ensure all power sources to the panelboard or switchboard are completely de-energized, tested with a reliable voltage meter, and locked out before mounting the breaker or terminating the conductors.
