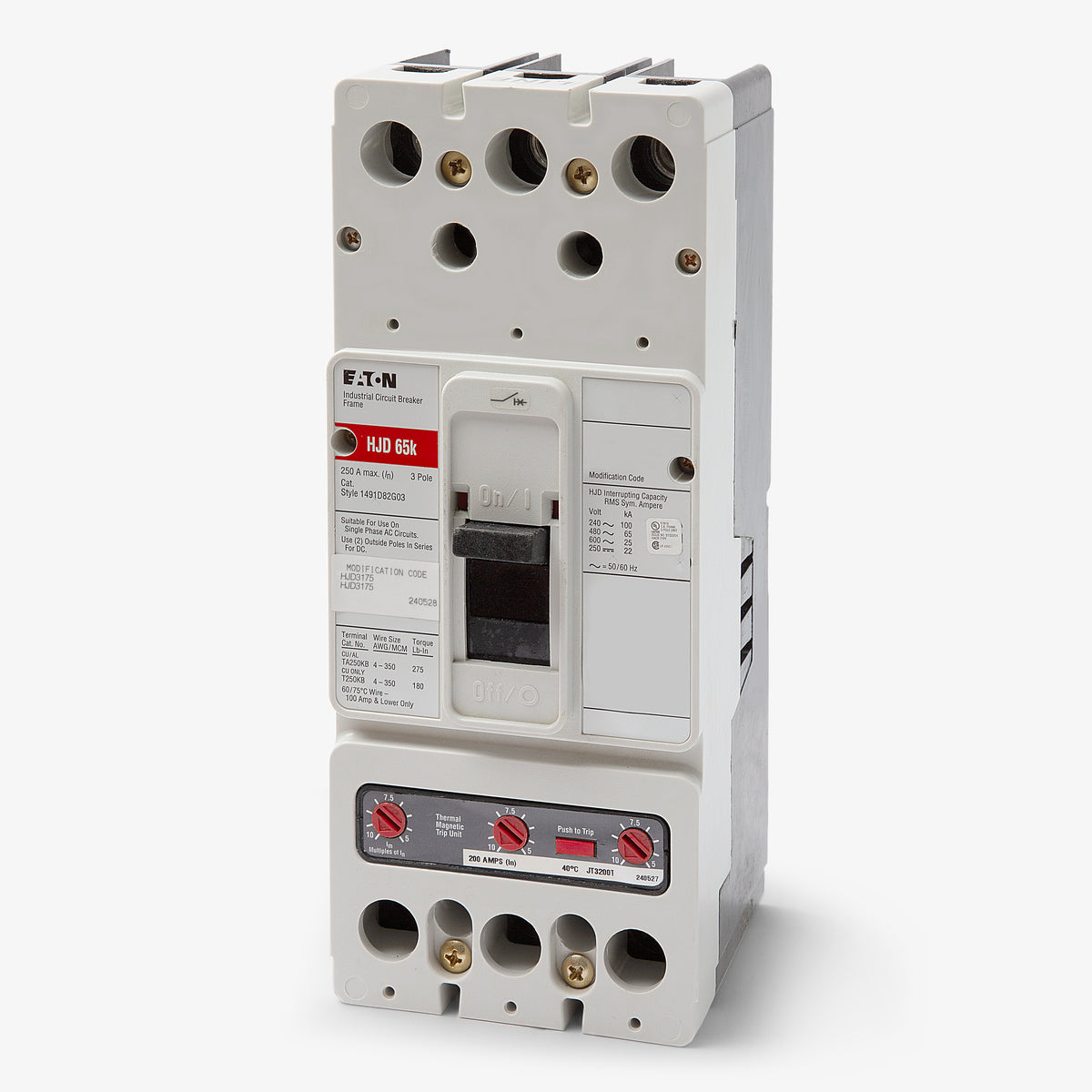

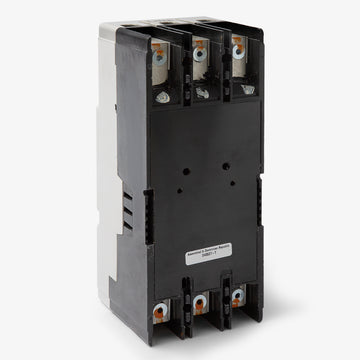

Eaton / Cutler-Hammer HJD3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HJD3175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HJD3175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HJD3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HJD3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3175 |
| Series | HJD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Quantity
Eaton / Cutler-Hammer HJD3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3175-R |
| Series | HJD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Eaton HJD3175 provides 175A of reliable thermal-magnetic protection. This 3-pole Series C breaker utilizes a rugged J-Frame architecture, delivering long-time and instantaneous (LI) trip functions to safeguard critical commercial and industrial circuits. Designed for unit mount configurations, it fits perfectly into Eaton switchboards, panelboards, and motor control centers. The breaker comes equipped with TA250KB lugs for standard Al/Cu wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3175 |
| Series | HJD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs
6 answersWhat equipment is the HJD3175 designed to be installed in?
This unit mount breaker is engineered for Eaton Series C panelboards, switchboards, and motor control centers.
What does the H in the HJD3175 catalog number indicate?
The H designates a high interrupting capacity frame. This model provides up to 65kA of fault protection at 480VAC, which is higher than standard JD frame breakers.

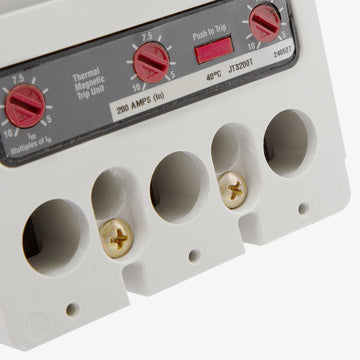

How is the trip unit configured on this breaker?
It comes with a factory-installed, non-interchangeable thermal-magnetic trip unit. The thermal element is fixed for long-time overload protection, while the magnetic instantaneous trip can be adjusted to coordinate with other devices in your system.

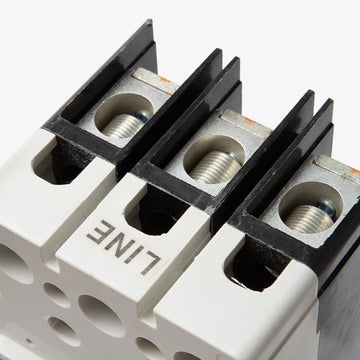

Are lugs included with the HJD3175, and what wire sizes do they accept?
Yes, it includes line and load side lug terminals that accept 4 AWG to 350 kcmil aluminum or copper conductors.
Will this breaker replace an older Cutler-Hammer or Westinghouse HJD3175?
Yes. Eaton manufactures the Series C line, making this a direct drop-in replacement for legacy Cutler-Hammer and Westinghouse breakers sharing the HJD3175 catalog number.
Is this breaker suitable for direct current applications?
Yes, the HJD3175 is rated for DC systems up to 250VDC with a 22kA interrupting capacity, making it suitable for specific industrial DC control and power circuits.
