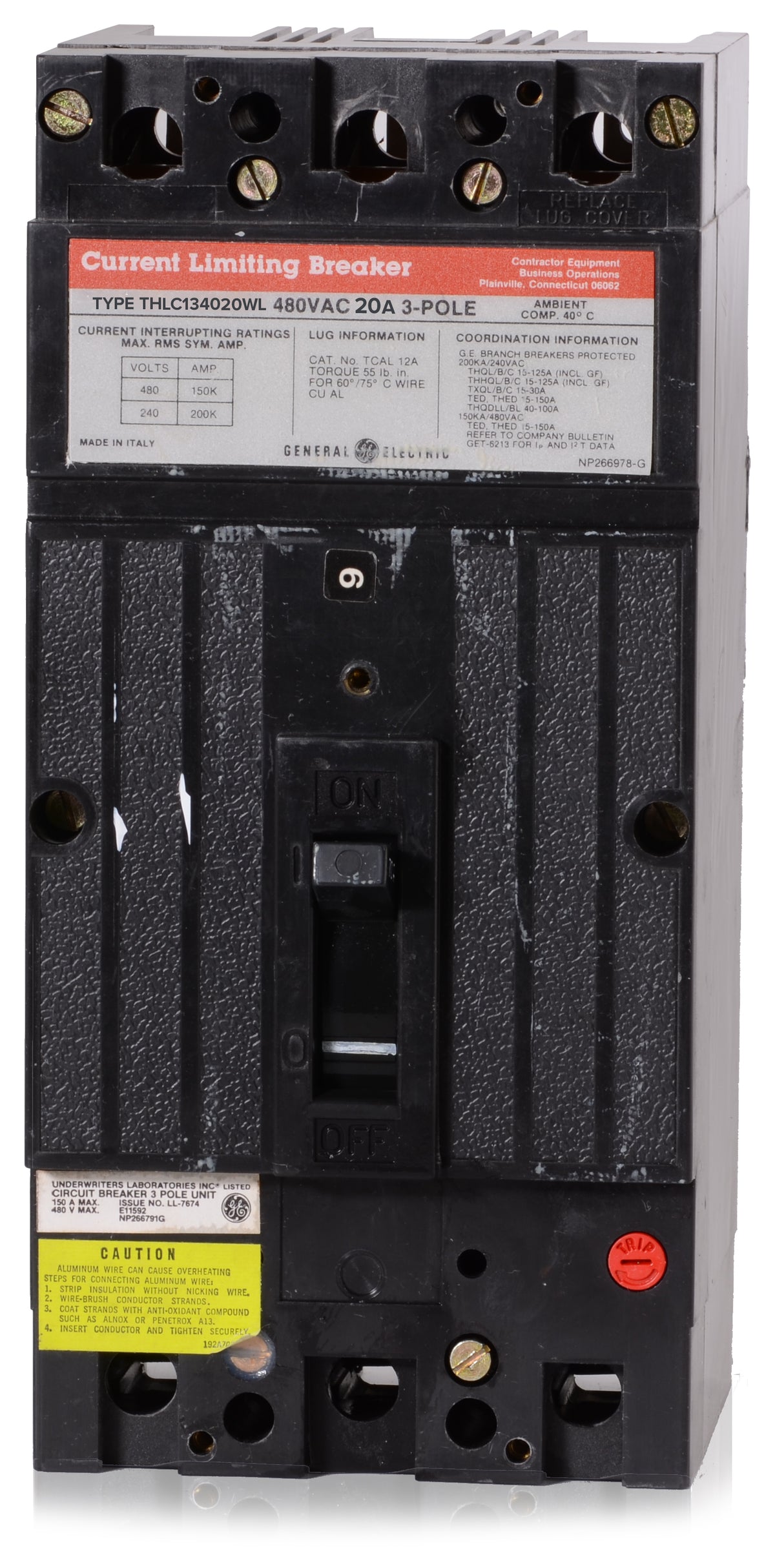

ABB / General Electric THLC134020WL Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
ABB / General Electric
THLC134020WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC134020WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC134020WL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHLC134015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC136015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC134030WL
30A 3 Pole Molded Case Circuit Breaker
Description
Providing exceptional short-circuit protection, this 3-pole 20A current-limiting MCCB restricts let-through energy to defend sensitive equipment. The thermal-magnetic trip unit delivers reliable fault response. Unlike bolt-on models, this unit-mount breaker features line and load lugs for flexible installation in enclosures, switchboards, and motor control centers. It serves as a robust feed-thru solution.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC134020WL |
| Series | THLC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Frame Type | THLC1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip |
| Special Features | Current Limiting |
Product FAQs
7 answersWhat types of equipment is the THLC134020WL circuit breaker compatible with?
This unit mount circuit breaker is designed for use in enclosures, switchboards, and motor control centers that accommodate the THLC1 frame.
Does the THLC134020WL include terminal lugs for installation?
Yes, this feed-thru circuit breaker comes equipped with line and load lugs. It accepts 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
What does the current limiting feature of the THLC134020WL do?
As a current limiting breaker, it restricts the let-through energy during a short circuit, providing enhanced protection for downstream sensitive electrical equipment.
Can I use the TCAL12A lug kit with this circuit breaker?
Yes, the TCAL12A lug terminal kit is compatible with the THLC1 frame, which includes the THLC134020WL.
What type of trip unit is installed in the THLC134020WL?
It features a non-interchangeable thermal magnetic trip unit with fixed thermal and fixed magnetic settings, providing long-time and instantaneous trip functions.
Is the THLC134020WL suitable for high fault current applications?
Yes, it is rated for up to 200kAIC at both 240VAC and 480VAC, making it highly capable of safely interrupting severe electrical faults in commercial and industrial distribution systems.
Which shunt trip accessory is compatible with the THLC134020WL?
The ABB or GE TEDST12 shunt trip is compatible with the THLC1 frame for internally mounted signaling and controlling functions at 120/240VAC or 125VDC.
