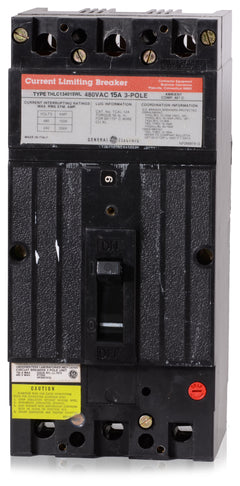

ABB / General ElectricTHLC134015WL
Free Shipping Over $99

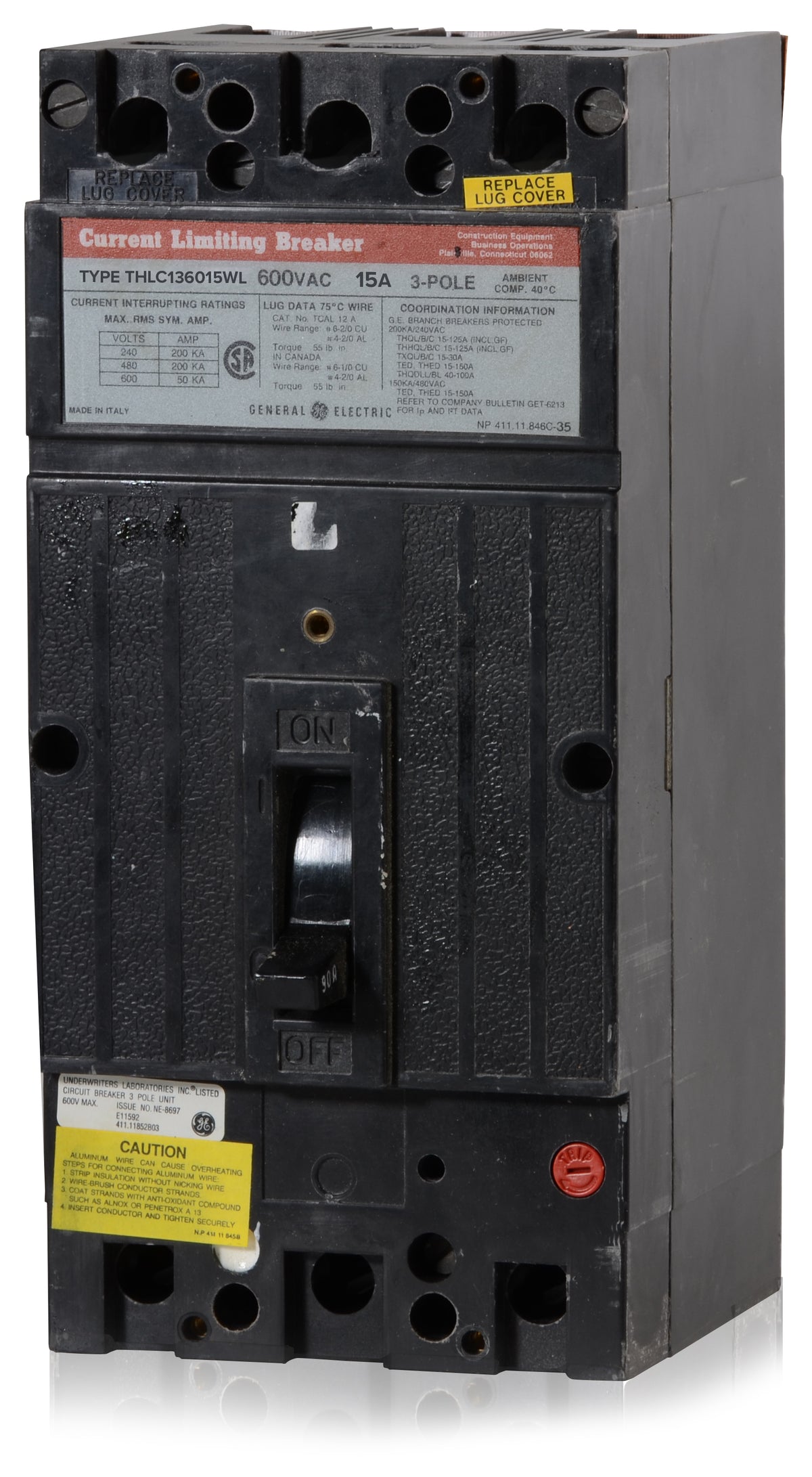

ABB / General Electric THLC136015WL Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
ABB / General Electric
THLC136015WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC136015WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THLC136015WL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHLC136020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC134020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC136030WL
30A 3 Pole Molded Case Circuit Breaker
Description
Delivering high-performance protection, the THLC136015WL is a 15-amp, 3-pole molded case circuit breaker from GE. It features fixed thermal and magnetic trip elements to provide reliable defense for commercial circuits. This unit mount MCCB is designed for installation in standalone enclosures and switchboards, coming factory-equipped with line and load side lugs. The current-limiting architecture achieves a 200 kAIC rating at 480VAC and 50 kAIC at 600VAC to restrict let-through energy.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC136015WL |
| Series | THLC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 50kA @ 600VAC |
| Frame Type | THLC1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL12) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
5 answersWhy is the THLC136015WL listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions, integrating GE's electrical distribution products into their portfolio. This breaker retains its original GE design, footprint, and THLC1 frame specifications while being manufactured and supported under the ABB brand.
What does the "WL" suffix mean in the THLC136015WL part number?
The "WL" suffix indicates that the breaker is supplied with factory-installed line and load lugs. For installations where line lugs are not required, the base THLC136015 catalog number is used.
How does the current limiting feature of the THLC136015WL benefit my electrical system?
As a current limiting breaker, it is engineered to interrupt severe fault currents in less than half an AC cycle. This rapid response significantly reduces the peak let-through current and energy, minimizing potential thermal and mechanical damage to downstream circuits and equipment.
Is the THLC136015WL compatible with standard GE residential load centers?
No. This is a unit-mount, feed-thru molded case circuit breaker designed for use in industrial switchboards, motor control centers, and standalone NEMA enclosures. It does not plug or bolt into standard residential or light commercial panelboards.
Can I adjust the trip settings on the THLC136015WL?
No. This breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory-calibrated for 15 amps and cannot be modified in the field.
