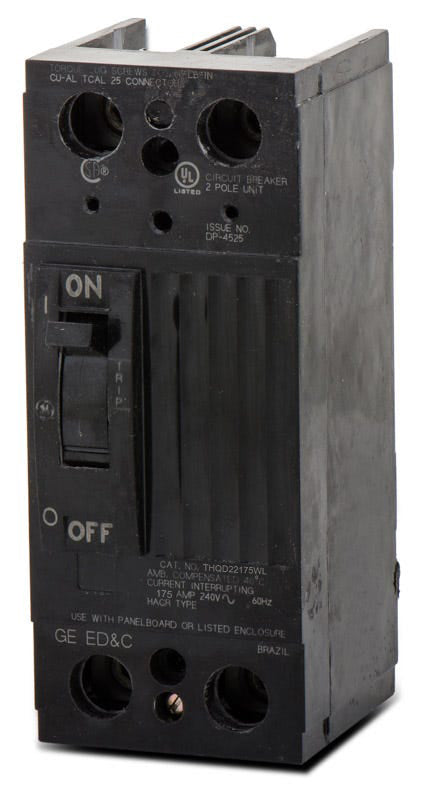

ABB / General Electric THQD22175WL Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
ABB / General Electric
THQD22175WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD22175WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD22175WL - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQD22200
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22225
225A 2 Pole Molded Case Circuit Breaker
Description
Designed for standalone applications, the GE THQD22175WL is a 2-pole, 175A molded case circuit breaker. The 'WL' designation indicates it comes equipped with factory-installed line and load lugs for immediate wiring. This unit mount breaker is ideal for individual enclosures and switchboards rather than standard panelboards. It serves as a replacement for older Q-Line models and is replaced by the Formula A2 series (A2N175TW-2). It features a 22kAIC rating at 240VAC and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22175WL |
| Series | THQD |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Individual Mounting, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Product FAQs
4 answersWhy is the THQD22175WL listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this Q-Line circuit breaker may ship with either ABB or GE branding. Both versions are identical in form, fit, and function.
What does the "WL" suffix indicate on the THQD22175WL?
The "WL" catalog suffix designates that the breaker is factory-equipped with both line and load lugs. This configuration is required for feed-thru wiring in standalone applications.
Is the THQD22175WL compatible with standard GE load centers?
No. This is a unit-mount, feed-thru breaker designed for individual enclosures, switchboards, and custom control panels. It does not plug in or bolt onto a standard panelboard bus.
What is the difference between GE THQD and TQD circuit breakers?
The difference lies in the short-circuit interrupting rating. The THQD22175WL is a high-interrupting breaker rated at 22kAIC at 240V, whereas the standard TQD equivalent is rated at 10kAIC.
