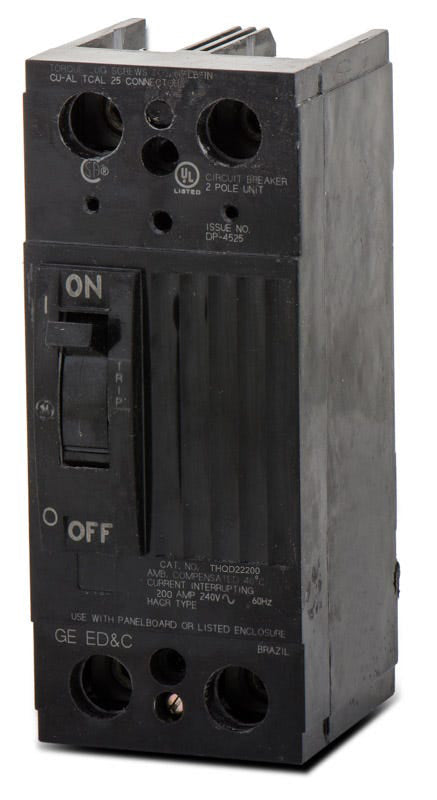

ABB / General Electric THQD22200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
ABB / General Electric
THQD22200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD22200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD22200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD22200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22200 |
| Series | THQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQD22200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22200-R |
| Series | THQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Similar Items
ABB / General ElectricTHQD22175
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22125WL
125A 2 Pole Molded Case Circuit Breaker
Description
Built for high-capacity power distribution, the GE THQD22200 is a 2-pole, 200A molded case circuit breaker. It delivers consistent thermal-magnetic protection for residential, commercial, and industrial electrical systems. This unit mount MCCB easily installs into GE A-Series and Spectra Series panelboards, as well as compatible enclosures. It features a fixed trip unit and includes standard load lugs for secure connections.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22200 |
| Series | THQD |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the THQD22200 circuit breaker?
This breaker is designed for installation in GE A-Series and Spectra Series panelboards, as well as compatible individual enclosures.
What is the difference between the GE TQD22200 and the THQD22200?
The primary difference is the short circuit interrupting rating. The THQD22200 has a higher interrupting capacity of 22kAIC at 240V, while the standard TQD22200 is rated at 10kAIC. Both share the same physical frame and mounting style.
Why is the THQD22200 listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Q-Line breakers like the THQD22200 may feature either GE or ABB branding. They are the exact same component and are fully interchangeable.
How does the THQD22200 mount into an electrical system?
It is a unit mount, feed-thru molded case circuit breaker. It utilizes a lug-in and lug-out connection rather than snapping or bolting directly onto a panelboard bus.
Are lugs included with the THQD22200, and what wire sizes do they accept?
Yes, the breaker comes with factory-installed lugs. The terminals accept copper or aluminum conductors ranging from 4 AWG to 300 kcmil.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the THQD22200 features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Can the THQD22200 be applied on a 120V single-phase system?
Yes. While it carries a maximum voltage rating of 240V AC, this 2-pole breaker is fully rated for use on 120V, 240V, and 120/240V single-phase AC systems.
