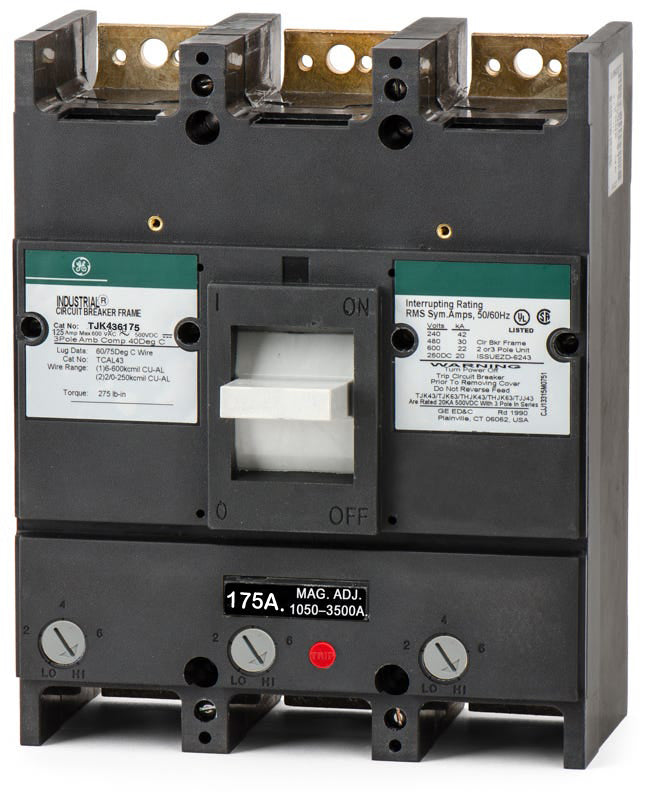

ABB / General Electric TJK436175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
ABB / General Electric
TJK436175
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK436175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK436175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJK436250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436300
300A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the GE TJK436175 is a 3-pole, 175A molded case circuit breaker from the J600 frame family. It provides reliable overcurrent protection for heavy-duty electrical systems. This bolt-on breaker installs into GE J600 panelboards, switchboards, and motor control centers. It serves as an exact replacement for older TJK series installations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436175 |
| Series | TJK |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (TCAL43) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
6 answersWhat panelboards and equipment is the TJK436175 compatible with?
This breaker is designed for use in GE J600 series panelboards, as well as compatible GE switchboards and motor control centers.
What frame size is the TJK436175 built on?
It is built on the GE 400A TJK frame, which is part of the J Frame family. Even though it has a 175A trip unit, it uses the physical dimensions and mounting footprint of the 400A J600 line breakers.
What wire sizes are accepted by the lugs on this breaker?
The standard lugs accept either a single conductor from 6 AWG to 600 kcmil or dual conductors from 2/0 AWG to 250 kcmil. They are rated for both copper and aluminum wire.
Can the trip unit be replaced or upgraded on this breaker?
Yes, the TJK436175 features an interchangeable trip unit design. The 175A trip unit can be removed and replaced with other compatible TJK trip units within the 400A frame limit if your load requirements change.
How does the adjustable magnetic trip work on the TJK436175?
The thermal element is fixed for the 175A continuous rating, while the magnetic instantaneous trip can be adjusted in the field. This allows you to coordinate with downstream loads and prevent nuisance tripping during inrush currents.
Is the TJK436175 an ABB or GE breaker?
This breaker is part of the legacy General Electric molded case circuit breaker line. Following the acquisition of GE Industrial Solutions by ABB, these breakers may be branded as either GE or ABB depending on the manufacturing date. They are physically and electrically identical.
