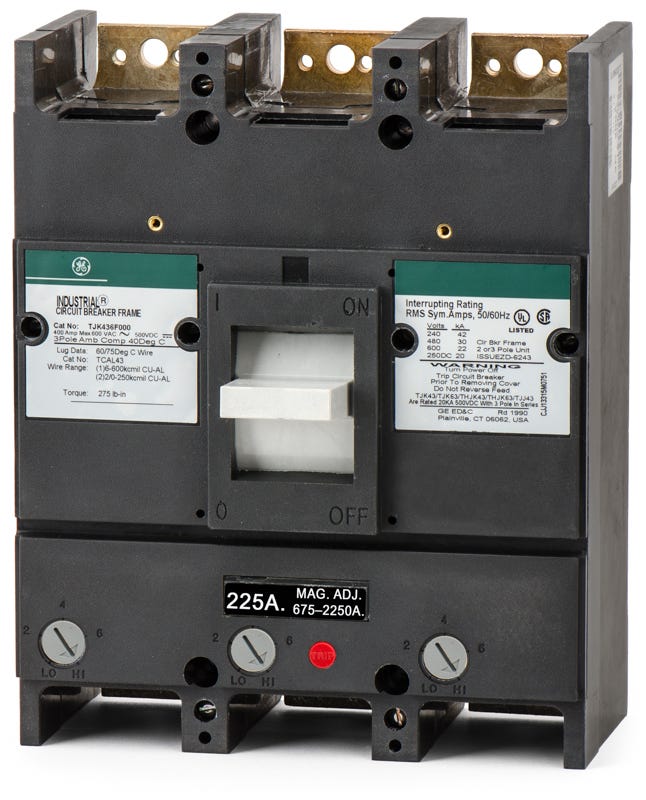

ABB / General Electric TJK436225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
ABB / General Electric
TJK436225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK436225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK436225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJK636250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436300
300A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436225WL
225A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial environments, the GE TJK436225 delivers 225 amps of robust power distribution. This 3-pole MCCB utilizes thermal-magnetic technology to provide precise LI trip functions. Designed for secure bolt-on installation, it mounts into GE J600 panelboards, switchboards, and enclosures. This legacy frame is officially replaced by the Tmax XT4 series. Delivering a 30 kAIC rating at 480VAC, it features an interchangeable trip unit and comes with TCAL43 lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436225-R |
| Series | TJK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers, J-Frame Enclosures |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL43) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards and enclosures are compatible with the TJK436225 breaker?
This J-Frame breaker is designed for bolt-on installation in GE J600 panelboards, GE switchboards, motor control centers, and standalone J-Frame enclosures.
What wire sizes are accepted by the standard lugs on this 225A breaker?
The standard lugs accommodate either a single copper or aluminum conductor from 6 AWG to 600 kcmil, or two conductors ranging from 2/0 AWG to 250 kcmil.
Does the TJK436225 feature adjustable trip settings?
Yes, it features a thermal magnetic trip unit with fixed thermal protection for long time overloads and an adjustable magnetic trip for instantaneous short circuit protection.
Is the ABB TJK436225 the same as the legacy General Electric version?
Yes. ABB acquired GE Industrial Solutions, so the current ABB TJK436225 is a direct, exact replacement for the legacy General Electric TJK436225 molded case circuit breaker.
Can the TJK436225 be utilized in direct current systems?
Yes, this breaker is rated for DC applications up to 500VDC, providing an interrupt capacity of 20kA at both 250VDC and 500VDC.
