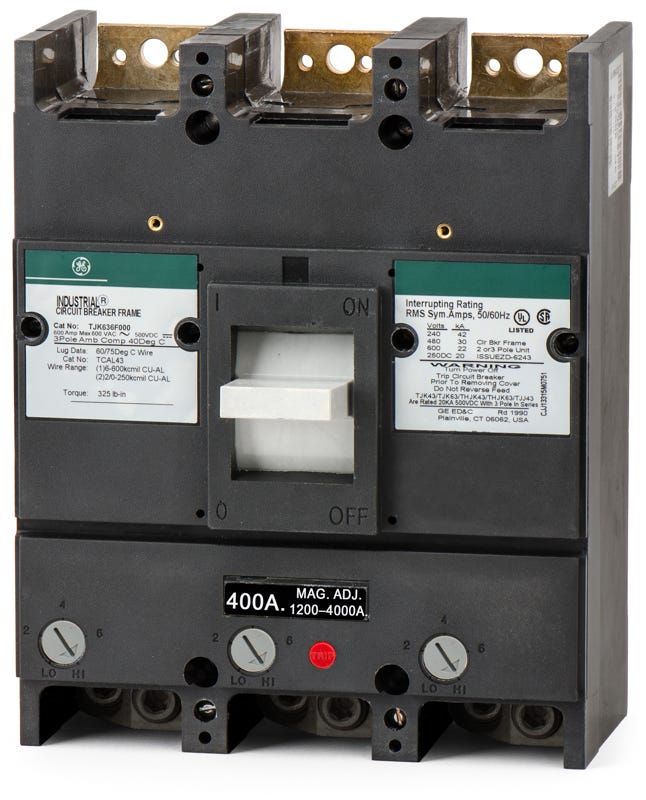

ABB / General Electric TJK636400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Bolt-On
ABB / General Electric
TJK636400
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK636400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK636400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJK436250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436225
225A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE TJK636400 is a 400A, 3-pole molded case circuit breaker from the legacy J600 line. It provides robust thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This bolt-on MCCB mounts into GE J600 panelboards, switchboards, and motor control centers. It features an interchangeable trip unit for flexible configuration. Rated at 30 kAIC at 480VAC, this J-Frame breaker ensures high-capacity fault interruption.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636400-R |
| Series | TJK |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300 kcmil-500 kcmil (Al) |
| Max Wire | 350 kcmil (Cu) or 500 kcmil (Al) |
| Min Wire | 4/0 AWG (Cu) or 300 kcmil (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL63) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat enclosures or panelboards are compatible with the TJK636400?
The TJK636400 is designed for unit-mount configurations and fits legacy GE J600 and A-Series panelboards, as well as compatible switchboards and motor control centers.
What is the difference between the GE TJK636400 and THJK636400 circuit breakers?
Both are 400A, 3-pole J-Frame breakers, but they have different interrupting ratings. The TJK636400 has a standard interrupting capacity of 30kAIC at 480V, while the THJK636400 features a higher interrupting capacity for systems with greater available fault current.
Is the GE TJK636400 still actively manufactured?
Following ABB acquiring GE Industrial Solutions, the TJK series was transitioned to a limited legacy status. Facilities looking to modernize or replace this breaker can transition to the ABB Tmax XT series, specifically the XT5 frame, using a retrofit kit.
Can the TJK636400 be used in direct current applications?
Yes, this thermal-magnetic breaker is rated for DC systems. It provides an interrupting rating of 20kAIC at both 250VDC and 500VDC.
How is the trip unit configured on the TJK636400?
This breaker features an interchangeable thermal-magnetic trip unit with LI functions. The thermal long-time protection is fixed at 400 amps, while the magnetic instantaneous protection is adjustable to coordinate with your specific system requirements.
What wire sizes are accepted by the standard lugs on the TJK636400?
When equipped with standard lugs, the breaker accepts either two 4/0 AWG to 350 kcmil copper wires, or two 300 kcmil to 500 kcmil aluminum wires per phase.
