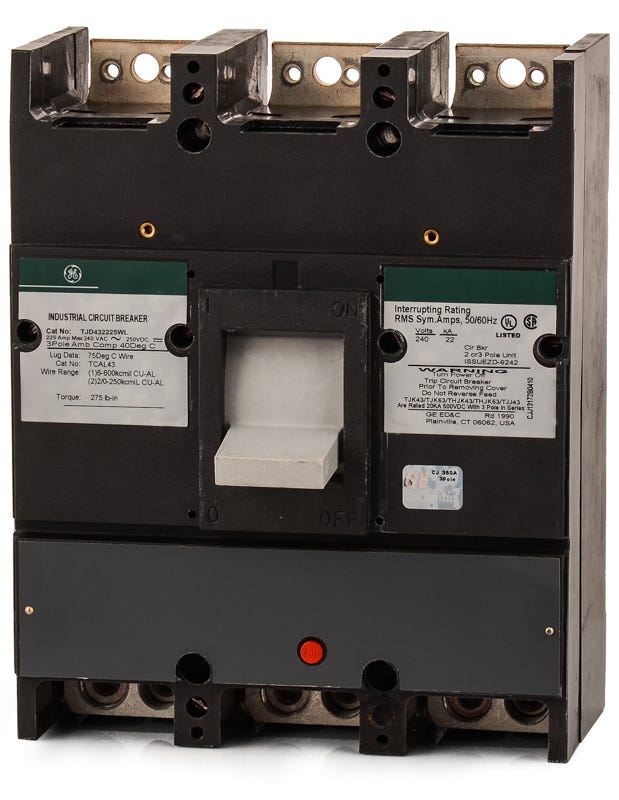

ABB / General Electric TJD432225WL Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
ABB / General Electric
TJD432225WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJD432225WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJD432225WL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric TJD432225WL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432225WL |
| Series | TJD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J-Frame Enclosures, Switchboards |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Common Trip |
Sold out
Quantity
ABB / General Electric TJD432225WL - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432225WL-R |
| Series | TJD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J-Frame Enclosures, Switchboards |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Common Trip |
Similar Items
ABB / General ElectricTJD432300WL
300A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432350WL
350A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432400WL
400A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the GE TJD432225WL 3-pole, 225A molded case circuit breaker belongs to the legacy J-Frame family. This unit-mount breaker installs into GE J-Frame enclosures and switchboards. It includes factory-installed line and load lugs (TCAL43) for straightforward wiring. For future upgrades, it crosses over to the ABB Tmax XT4 series. Rated for 22kAIC at 240VAC, this thermal-magnetic breaker features fixed long-time and instantaneous (LI) trip functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432225WL |
| Series | TJD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J-Frame Enclosures, Switchboards |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Common Trip |
Product FAQs
6 answersWhat does the "WL" suffix mean in the TJD432225WL catalog number?
The "WL" suffix indicates that the circuit breaker comes factory-equipped with both line and load lugs. If the breaker is ordered without this suffix, it typically does not include line-side lugs.
Which panelboards and enclosures are compatible with the TJD432225WL circuit breaker?
This legacy J-Frame breaker is designed for use in GE A-Series panelboards, Spectra Series panelboards, switchboards, and motor control centers.
Can the TJD432225WL be reverse fed?
Yes, this thermal-magnetic molded case circuit breaker is suitable for reverse feed applications, allowing you to wire the line connections to either the top or bottom terminals.
Can I install internal accessories like a shunt trip or auxiliary switch in the TJD432225WL?
Yes, GE J-Frame breakers support field-installable internal accessories, including shunt trips, undervoltage releases, and auxiliary switches. These mount internally and the control leads can be routed through the side or back of the breaker.
Is the TJD432225WL a 100% rated or standard 80% rated circuit breaker?
The TJD432225WL is a standard 80% rated circuit breaker. Continuous loads should not exceed 80% of its 225A nominal rating, which is 180 amps, in accordance with standard National Electrical Code (NEC) requirements.
Does the TJD432225WL have adjustable trip settings?
No, this specific breaker features a non-interchangeable trip unit with fixed thermal and fixed magnetic settings. It does not offer adjustable long-time or instantaneous pickup dials.
