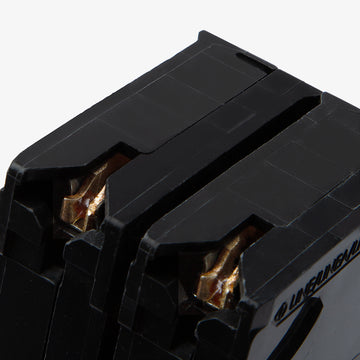

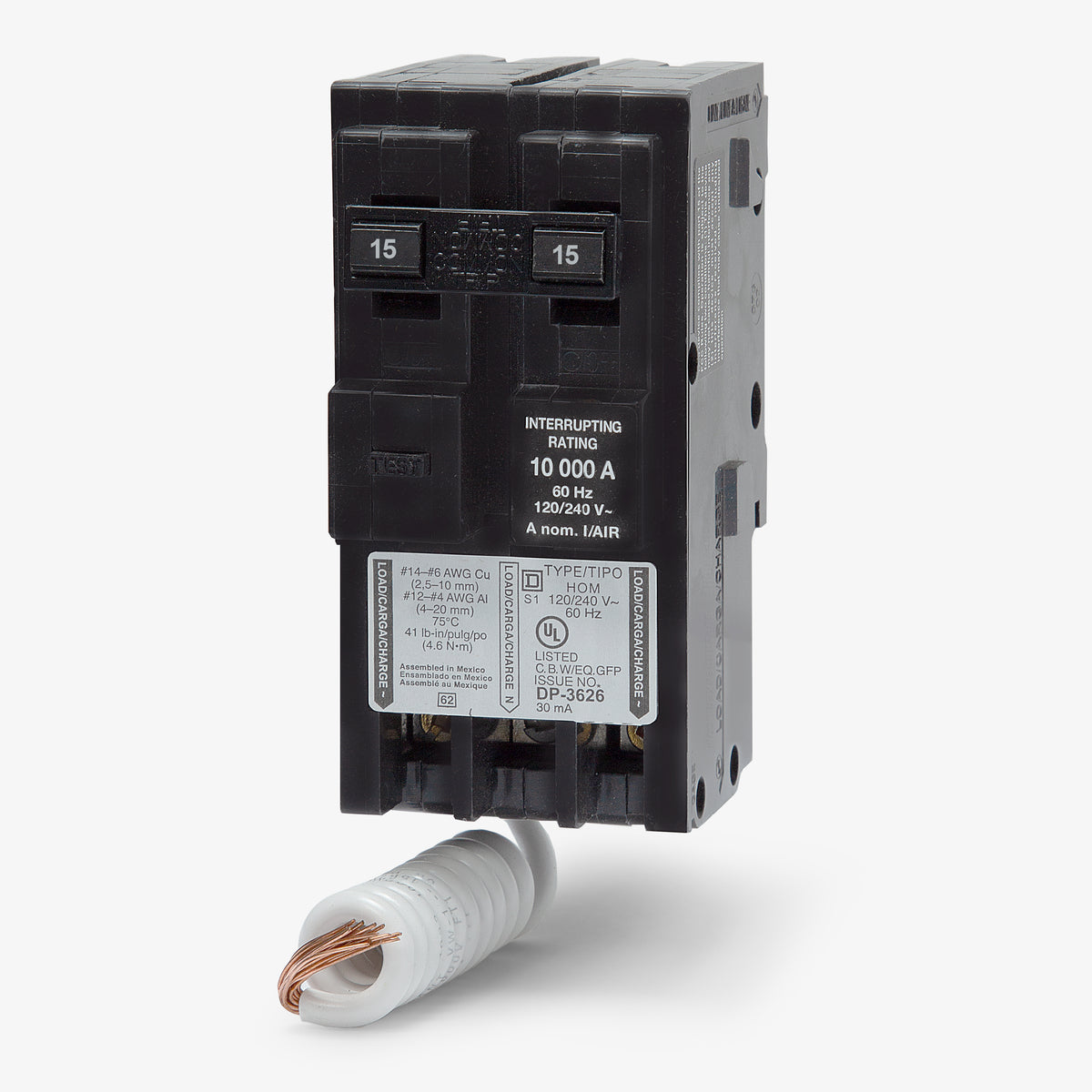

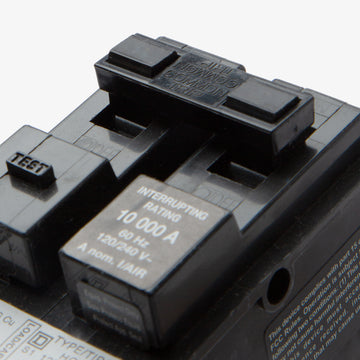

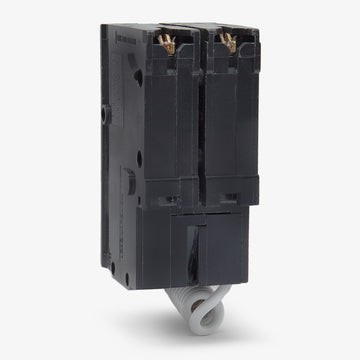

Square D HOM215EPD GFEP Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Square D
HOM215EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
HOM215EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM215EPD - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFEP Miniature Circuit Breaker
40A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Built to safeguard 240V machinery, the Square D HOM215EPD is a 15A, two-pole equipment protection breaker. It provides a 30mA ground-fault trip threshold, making it ideal for heat tracing, snow melting equipment, or dedicated motor circuits. The device mounts into standard Square D Homeline load centers via a plug-on connection and includes a pigtail neutral. With a 10kAIC rating, it combines reliable thermal-magnetic overcurrent defense with specialized Class B ground-fault monitoring.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM215EPD |
| Series | HOM |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat is the ground fault trip threshold for the HOM215EPD?
The HOM215EPD is an Equipment Protection Device (EPD) that trips at a 30mA ground fault threshold. It is designed to protect equipment from damage, not for personnel shock protection, which requires a 5mA Class A GFCI breaker.
Can I install this Homeline breaker in a Square D QO load center?
No. Homeline breakers like the HOM215EPD are only compatible with Square D Homeline load centers. They have a 1-inch per pole format and will not physically fit or connect to the bus bars in QO panels.
How is the neutral connected on the HOM215EPD?
This breaker features a pigtail neutral. The coiled white pigtail wire must be connected directly to the neutral bus bar in the load center to power the internal ground fault circuitry.
What types of applications require a 30mA EPD breaker?
A 30mA Equipment Protection Device is typically used for heat tracing, snow melting equipment, and certain well pumps. The higher 30mA threshold prevents nuisance tripping while still protecting the equipment from ground faults.
How many panel spaces does the HOM215EPD require?
As a 2-pole Homeline breaker, it requires two standard 1-inch spaces in a Square D Homeline load center.
