Square D HOM2110 Miniature Circuit Breaker
- 110A
- 2 Pole
- Plug-On
Square D
HOM2110
Miniature Circuit Breaker
Brand
Square D
SKU
HOM2110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

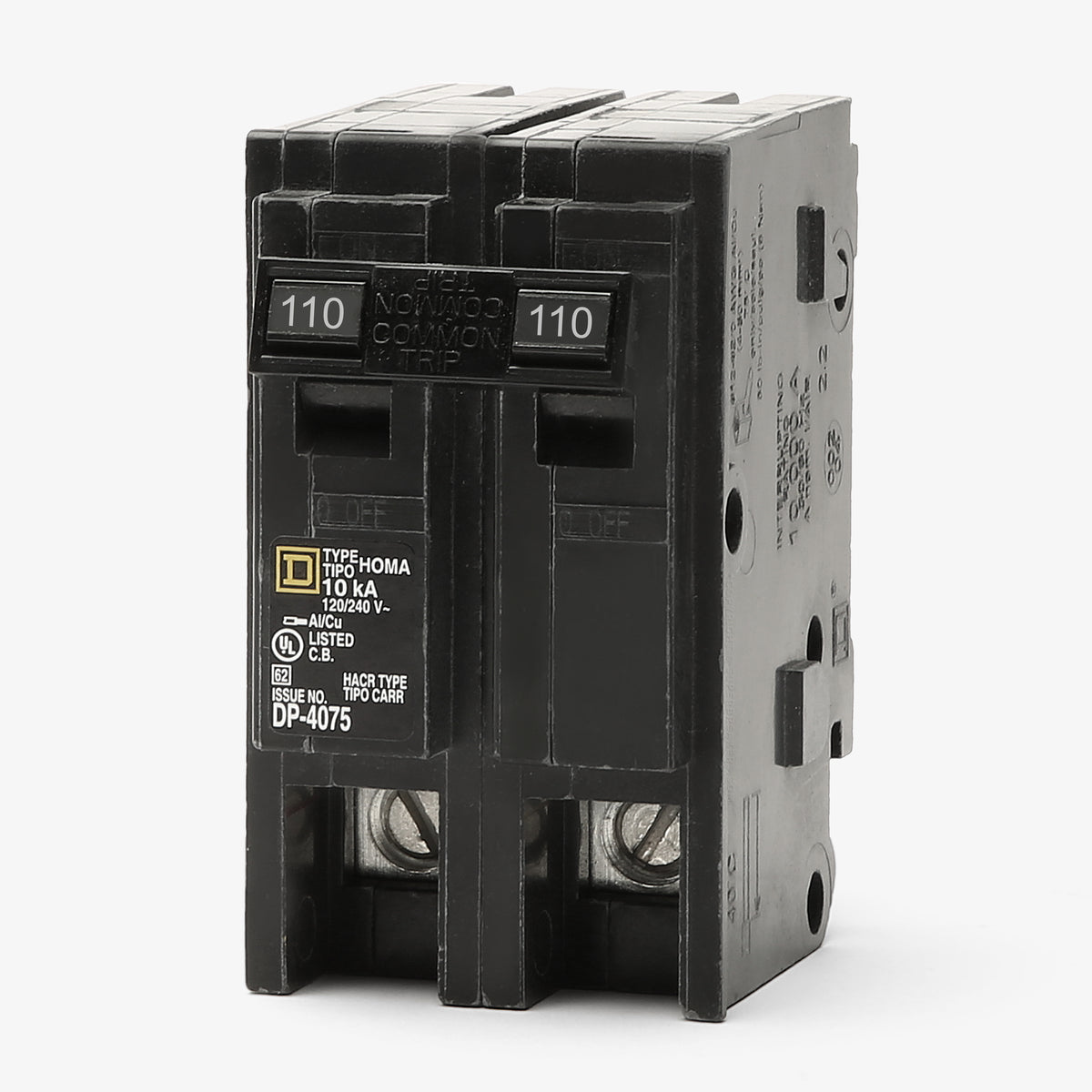

Square D HOM2110 - 110A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Part of the Homeline series, the HOM2110 delivers 110 amps of thermal-magnetic protection for residential systems. This two-pole breaker safeguards heavy-duty appliances and subpanels. It features a plug-on design that snaps securely into Square D Homeline load centers. The box lug terminals accept 4 AWG to 2/0 AWG aluminum or copper wiring. Rated for 10kAIC at 120/240VAC, this unit is HACR rated for use with HVAC equipment and meets UL 489 standards.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM2110 |
| Series | HOM |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|

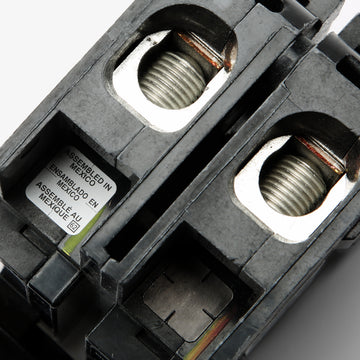

| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Mercury Free, RoHS Compliant |
Product FAQs
6 answersCan I install the HOM2110 in a Square D QO load center?
No, the HOM2110 is a Homeline series breaker and is not interchangeable with Square D QO panels. It features a 1-inch per pole format and fits exclusively in Square D Homeline load centers.
How many panel spaces does the HOM2110 require?
The HOM2110 requires two standard 1-inch spaces in a Homeline load center.
What is the recommended tightening torque for the HOM2110 box lugs?
The standard tightening torque for the HOM2110 box lugs is 42.5 lb-in (4.8 N.m) for 4 AWG to 2/0 AWG wire. Always verify the exact torque specifications printed on the breaker label before installation.
Can the HOM2110 be used as a back-fed main breaker?
Yes, the HOM2110 can be used as a back-fed main breaker in compatible Homeline load centers. When installed as a back-fed main, the NEC requires a breaker retaining kit (such as the HOM4RK2LA or HOM1RK, depending on your specific panel model) to secure it to the interior.
Is the HOM2110 HACR rated for HVAC equipment?
Yes, the HOM2110 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
What is the difference between the HOM2110 and HOM2110CP?
The HOM2110 and HOM2110CP are the exact same 110A circuit breaker. The "CP" suffix simply indicates commercial packaging (bulk bar-coded packaging) used for retail distribution.
