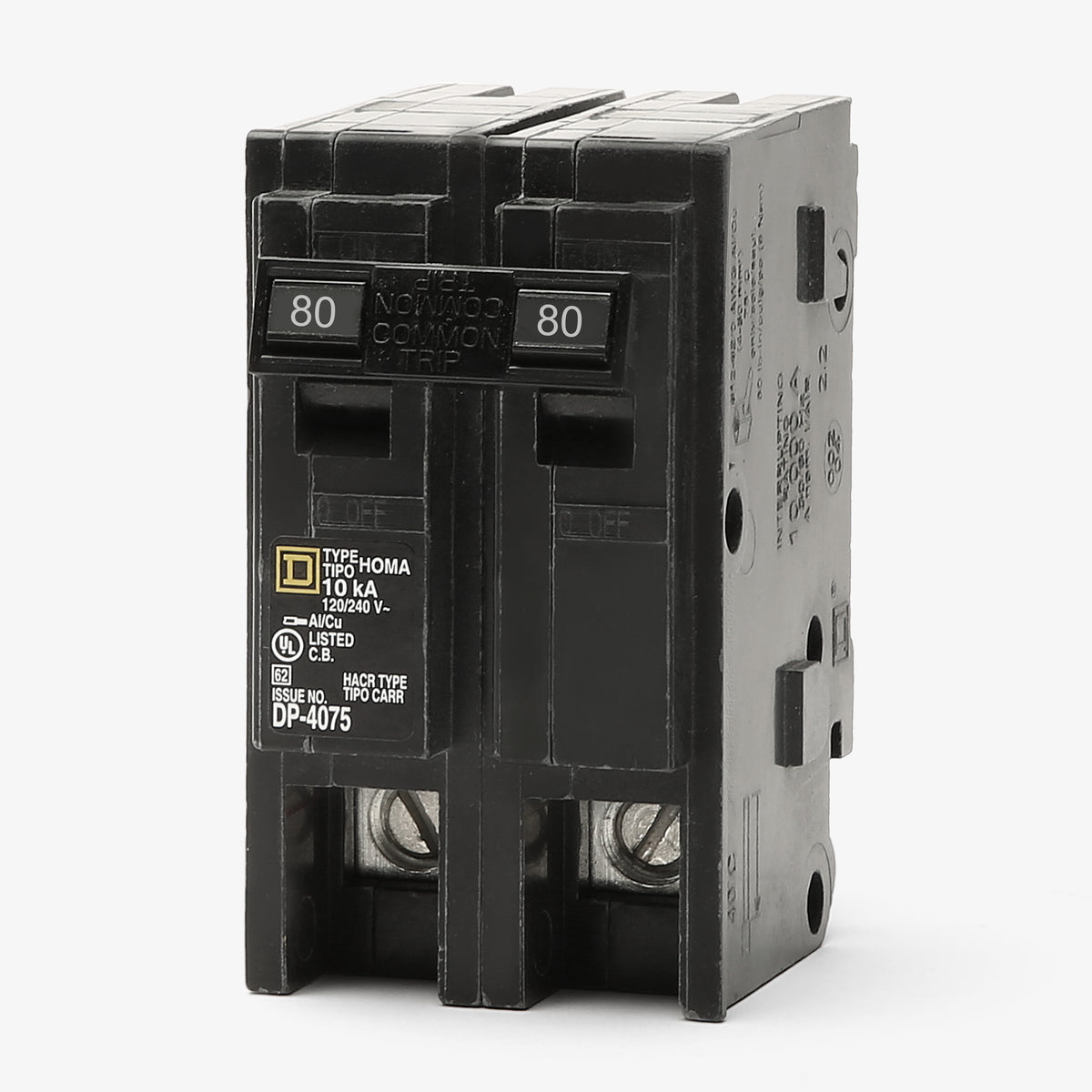

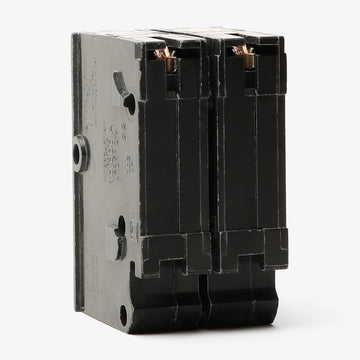

Square D HOM280 Miniature Circuit Breaker
- 80A
- 2 Pole

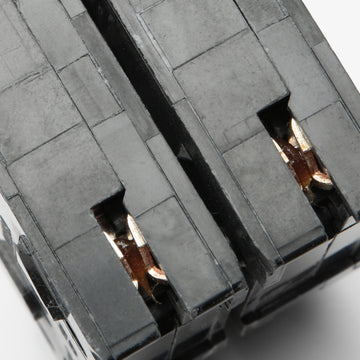

- Plug-On
Square D
HOM280
Miniature Circuit Breaker
Brand
Square D
SKU
HOM280
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM280 |
| Series | HOM |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|

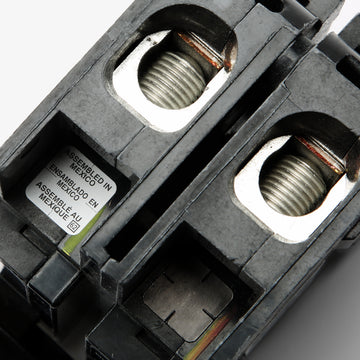

| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM280 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM280-R |
| Series | HOM |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Built to support substantial residential loads, this 80A two-pole device is ideal for feeding subpanels or large electric heating appliances. Designed exclusively for Square D Homeline load centers, the plug-on format allows for quick integration into the busbar. It features spacious box lugs that accommodate 4 AWG to 2/0 AWG conductors. Rated for 10kAIC at 120/240VAC, it complies with standard residential fault current requirements and carries an HACR certification for dedicated HVAC circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM280 |
| Series | HOM |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
7 answersCan I install the HOM280 in a Square D QO load center?
No. Square D Homeline (HOM) breakers are 1 inch per pole and are only compatible with Homeline load centers. QO breakers are 3/4 inch per pole and use a different busbar connection.
Is this breaker compatible with panels from other manufacturers?
No. The HOM280 is UL listed exclusively for use in Square D Homeline load centers. Using it in other brands voids the UL listing and violates NEC guidelines.
How much panel space does the HOM280 require?
As a 2-pole Homeline breaker, it requires two standard 1-inch spaces, taking up a total of 2 inches on the busbar.
What is the recommended tightening torque for the box lugs?
The box lugs on the HOM280 should be torqued to 42.5 lb-in (4.8 N-m) for 4 AWG to 2/0 AWG copper or aluminum wire.
Is the HOM280 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Can the HOM280 be used as a back-fed main breaker?
Yes, it can be back-fed. However, the National Electrical Code (NEC) requires a breaker retaining kit when used as a back-fed main. Check your specific Homeline panel wiring diagram for the correct retaining kit part number.
Does this breaker require a neutral connection?
No. The HOM280 is a standard thermal-magnetic breaker, not a GFCI or AFCI device. It does not require a neutral connection or pigtail to operate.
