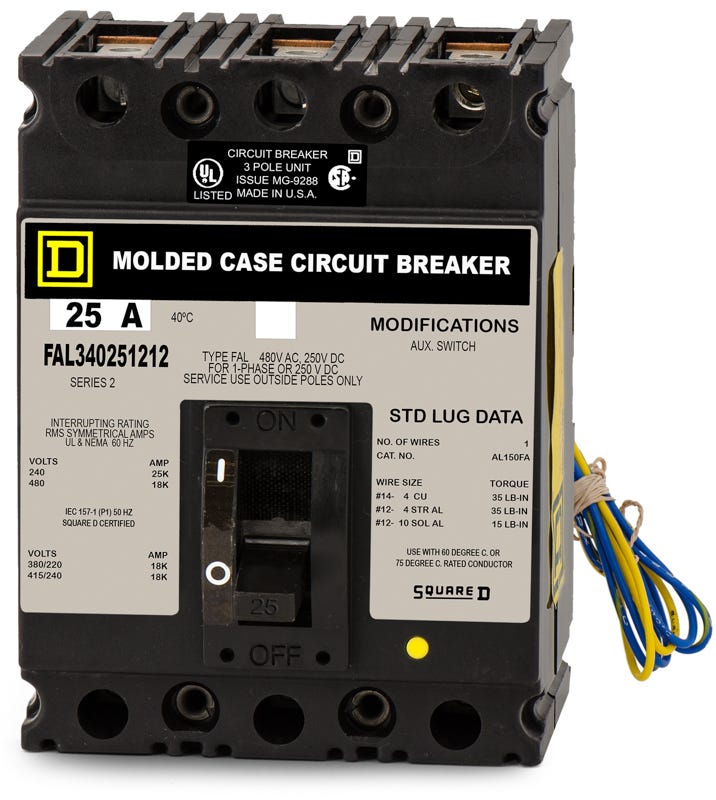

Square D FAL340251212 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Unit Mount
Square D
FAL340251212
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL340251212
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL340251212 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power systems, this 3-pole, 25A MCCB delivers robust thermal-magnetic protection. The legacy F-Frame design ensures consistent performance with long-time and instantaneous trip functions. This unit-mount breaker installs into Square D enclosures and switchboards. When upgrading, it is replaced by the BDL36025. Delivering an 18kAIC rating at 480V, it includes a factory-installed 1A/1B auxiliary switch and a Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL340251212-R |
| Series | FAL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Auxiliary Switch (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat types of panels accept the FAL340251212 circuit breaker?
This legacy F-Frame device is a unit-mount breaker. It is designed to be hard-mounted into traditional Square D enclosures, switchboards, and unit-mount panelboards, rather than plugging onto a busbar.
What is the direct replacement for the legacy FAL340251212?
For modern installations or upgrades, the Square D PowerPact B-Frame BDL36025 is the standard replacement for 25A, 3-pole F-Frame breakers. Note that any auxiliary or shunt trip accessories must be ordered separately for the new B-Frame unit.
What wire gauges are supported by the terminals on this breaker?
The included line and load lugs accommodate 14 to 4 AWG copper wire or 12 to 4 AWG aluminum wire, providing flexibility for standard 25A branch circuit or feeder connections.
Can the trip curve on the FAL340251212 be adjusted in the field?
No, this thermal-magnetic breaker utilizes fixed thermal (long-time) and fixed magnetic (instantaneous) trip elements. The trip thresholds are factory-set and cannot be modified.
Is this breaker rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this breaker is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for specific industrial DC control or power circuits.
