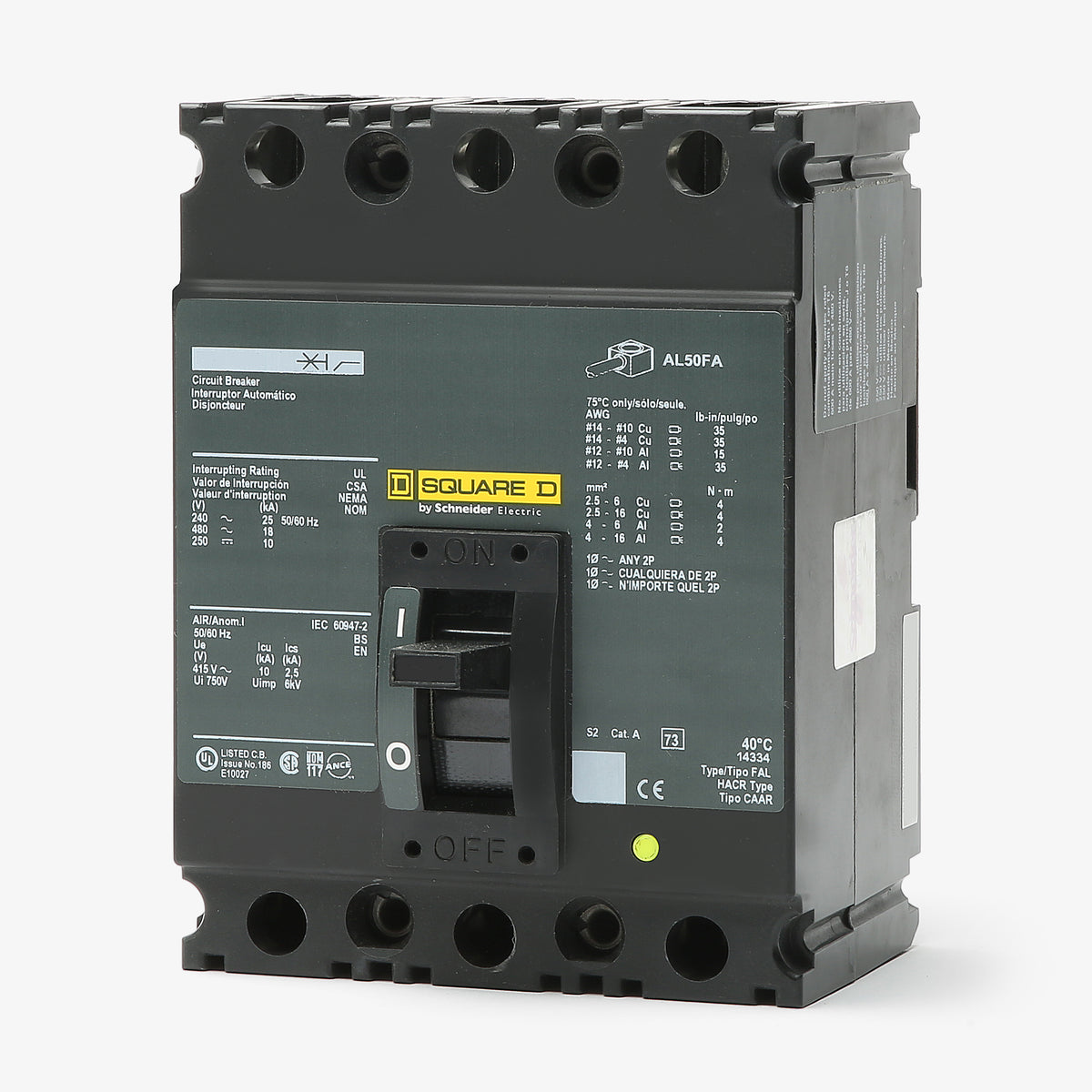

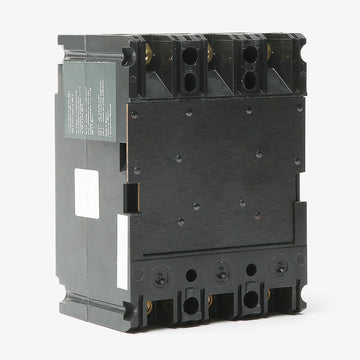

Square D FAL34035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Square D
FAL34035
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL34035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL34035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FAL34035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL34035 |
| Series | FAL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Includes AL100FA Mechanical Lug Kit |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL34035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | FAL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Includes AL100FA Mechanical Lug Kit |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the FAL34035 is a 3-pole, 35A molded case circuit breaker from Square D. This unit-mount breaker installs into compatible Square D enclosures and switchboards. As part of the legacy F-Frame family, it is replaced by the modern PowerPact BDL36035. Rated at 18 kAIC at 480VAC, it features fixed thermal and magnetic trip settings. The breaker includes AL100FA mechanical lugs and carries a HACR rating for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Series | FAL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Includes AL100FA Mechanical Lug Kit |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWill the FAL34035 fit in an I-Line panelboard?
No. The FAL34035 is a unit-mount, feed-thru circuit breaker designed for standard Square D enclosures, switchboards, and unit-mount panelboards. It does not have the plug-on jaw brackets required for I-Line distribution panels.
What is the modern replacement for the discontinued FAL34035?
The legacy Square D F-frame series has been discontinued. For new installations or panel upgrades, Schneider Electric recommends crossing this over to the modern PowerPact B-Frame or H-Frame series. Verify panel mounting requirements before substituting.
Is this breaker HACR rated for HVAC applications?
Yes. As a UL 489 listed molded case circuit breaker, the FAL34035 is HACR rated by default. It is approved for use with heating, air conditioning, and refrigeration equipment that requires group motor protection.
Is the FAL34035 rated for direct current (DC) applications?
Yes, this breaker is rated for 250VDC applications with a 10kA interrupting capacity. This makes it suitable for industrial DC control panels, battery systems, and specific solar applications.
Can the FAL34035 be backfed in a panelboard?
Yes. Because it features a fixed thermal-magnetic trip unit without electronic directional monitoring, it can be safely reverse fed. When used as a backfed main, the National Electrical Code (NEC) requires proper labeling and mechanical hold-down kits.

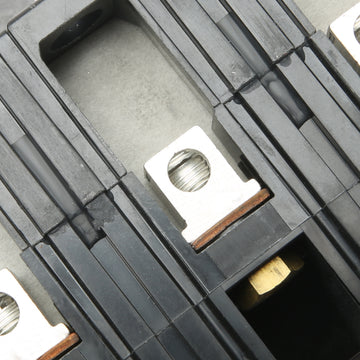

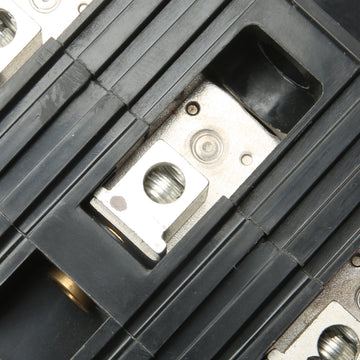

Do the standard lugs on the FAL34035 accept aluminum wire?
Yes, the factory-installed line and load lugs are dual-rated for both copper and aluminum conductors. They accept copper wire from 14 to 1/0 AWG and aluminum wire from 12 to 1/0 AWG.
