Square D PGA36080CU31A Molded Case Circuit Breaker
- 800A
- 3 Pole
- I-Line
Square D
PGA36080CU31A
Molded Case Circuit Breaker
Brand
Square D
SKU
PGA36080CU31A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

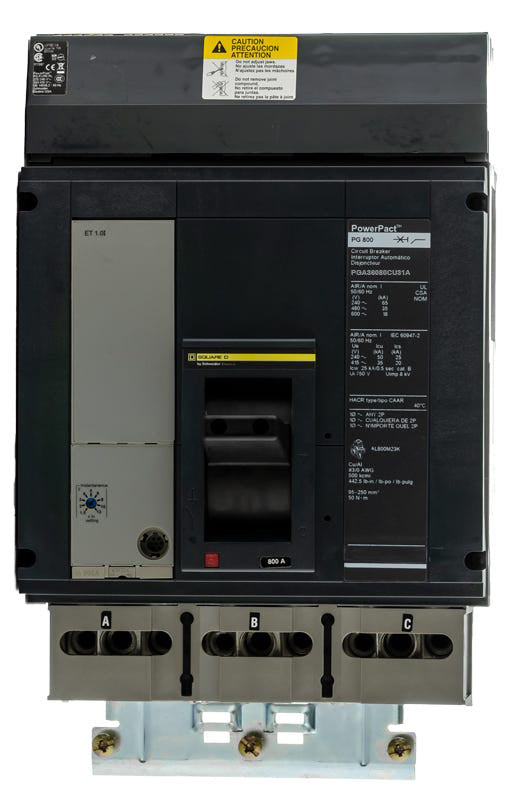

Square D PGA36080CU31A - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
800A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial facilities, the Square D PGA36080CU31A is an 800A electronic trip molded case circuit breaker. As part of the PowerPacT P-Frame series, it provides configurable LI protection. The breaker utilizes an I-Line connection, allowing for rapid installation into compatible Square D I-Line panelboards and switchboards. Equipped with a Micrologic 3.0 trip unit, this model is 100% rated to maximize capacity. It delivers 35 kAIC at 480V and true RMS sensing.Specifications
| Brand | Square D |
|---|---|
| Part Number | PGA36080CU31A |
| Series | PGA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 320-800A |
|---|
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 3.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Micrologic 3.0 Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | 100% Rated, HACR Rated, True RMS Sensing |
Product FAQs
9 answersWhat does the C in the PGA36080CU31A catalog number indicate?
The C signifies that this circuit breaker is 100% rated. This allows the breaker to carry its full 800A continuous current rating without the standard 80% derating requirement.
What type of enclosures will accept the PGA36080CU31A circuit breaker?
This breaker features an I-Line style plug-in connection on the line side and is designed exclusively for installation in compatible Square D I-Line panelboards and switchboards. It cannot be used in standard unit-mount or drawout applications.
What specific protection functions does the Micrologic 3.0 trip unit provide?
The factory-installed Micrologic 3.0 electronic trip unit provides adjustable Long-Time (L) and Instantaneous (I) protection to safeguard against overloads and short circuits.
What wire sizes are accepted by the load-side lugs on this breaker?
The factory-installed load-side mechanical lugs accept three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
How is the line-side connection made on the PGA36080CU31A?
The line side utilizes Square D I-Line plug-on jaws that snap directly onto the busbar stack in an I-Line panelboard. This allows for rapid installation and phase balancing without the need for bolted bus connections.
Does this PowerPacT P-frame breaker include a manual testing feature?
Yes, it includes an integral push-to-trip button on the front cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the tripping mechanism during maintenance.
Can the trip unit on the PGA36080CU31A be replaced in the field?
Yes, PowerPacT P-frame circuit breakers feature interchangeable Micrologic trip units. The included Micrologic 3.0 trip unit can be removed and upgraded in the field if your application requires advanced metering or different protection functions.
What is the phase connection arrangement for this I-Line breaker?
This 3-pole breaker features a standard ABC phase connection for the I-Line busbar stack.
Does the PGA36080CU31A utilize true RMS sensing?
Yes, the Micrologic 3.0 electronic trip unit utilizes true RMS sensing to accurately measure current and provide reliable protection, even in electrical systems with harmonic distortion.
