Square D PGA36080CU33A Molded Case Circuit Breaker
- 800A
- 3 Pole
- I-Line
Square D
PGA36080CU33A
Molded Case Circuit Breaker
Brand
Square D
SKU
PGA36080CU33A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

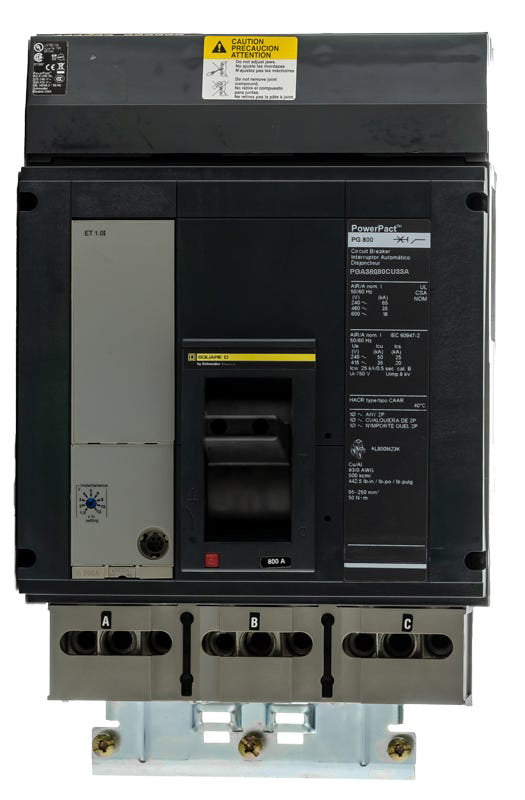

Square D PGA36080CU33A - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
800A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
Description
Designed for complex systems, the Square D PGA36080CU33A is an 800A electronic trip molded case circuit breaker. This PowerPacT P-Frame model offers LSI protection for superior coordination. Featuring an I-Line mounting style, it integrates seamlessly into Square D I-Line panelboards and switchboards for reliable industrial power distribution. This 100% rated breaker includes a Micrologic 5.0 trip unit with adjustable settings. It provides 35 kAIC at 480V and current-limiting capabilities.Specifications
| Brand | Square D |
|---|---|
| Part Number | PGA36080CU33A |
| Series | PGA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 320-800A |
|---|
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 5.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Micrologic 5.0 Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, True RMS Sensing, 100% Rated |
Product FAQs
6 answersHow much mounting space does the PGA36080CU33A require in an I-Line panelboard?
This PowerPacT P-Frame circuit breaker utilizes 9 inches of available I-Line bussing space in compatible Square D I-Line panelboards and switchboards.
Is the PGA36080CU33A rated for 100 percent continuous current?
Yes, the C in the catalog number indicates this is a 100 percent rated circuit breaker, allowing it to carry its full 800A rating continuously without derating.
What specific trip unit is included with the U33A suffix?
The U33A suffix designates a Micrologic 5.0 electronic trip unit. This provides LSI protection, allowing you to adjust the Long-Time pickup and delay, Short-Time pickup and delay, and Instantaneous pickup settings for precise system coordination.
What is the wire capacity for the lugs on this breaker?
The mechanical lugs are designed to accept three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
Can the PGA36080CU33A replace older Square D circuit breakers?
Yes, the PowerPacT P-Frame series serves as a replacement for legacy Square D M-Frame breakers, such as the MA36800, in I-Line panelboards and switchboards.
Can the trip unit on the PGA36080CU33A be changed in the field?
Yes, PowerPacT P-Frame circuit breakers feature interchangeable trip units, allowing you to upgrade or change the Micrologic trip unit in the field without replacing the entire breaker.
