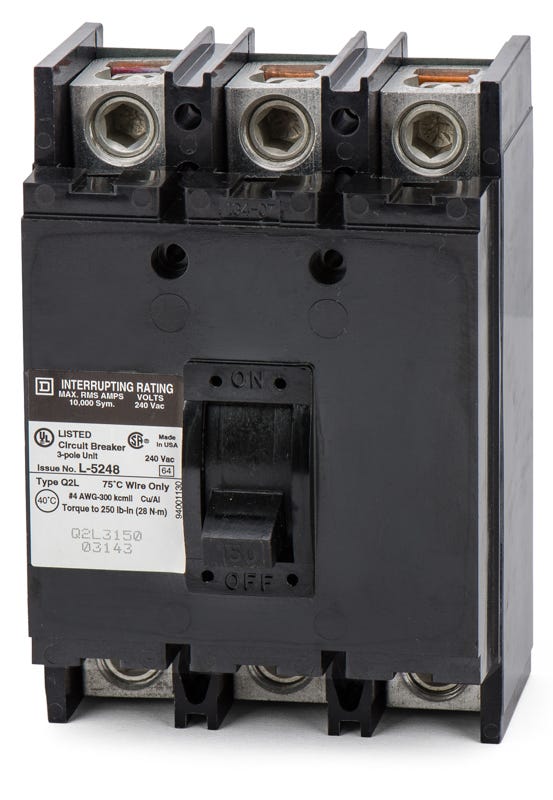

Square D Q2L32150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
Q2L32150
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2L32150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2L32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Square D Q2L32150 is a 3-pole, 150A molded case circuit breaker. This legacy Q-Frame component delivers reliable thermal-magnetic protection for 240VAC systems. This unit mount breaker is engineered to install into Square D switchboards, enclosures, and NQOD panelboards. Facilities can use the QBL32150 as a modern replacement. With a 10kAIC interrupt capacity, it includes a Visi-Trip indicator and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2L32150 |
| Series | Q2L |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the modern replacement for the Q2L32150?
The Q2L series is a legacy product. The modern equivalent is the Square D QBL32150. However, if you are replacing a main breaker in a legacy NQOD panelboard, using the original Q2L32150 preserves the panel's UL listing, which was evaluated specifically for Q2 frames.
Can I install the Q2L32150 in a standard QO or Homeline load center?
No. This is a Q-Frame molded case circuit breaker designed for Square D NQOD panelboards, commercial switchboards, and individual enclosures. It will not fit in residential QO or Homeline load centers.
Does this breaker plug onto a panel busbar?
No. The Q2L32150 is a unit-mount (feed-thru) breaker. It is secured with mounting hardware and uses wire lugs on both the line and load sides rather than connecting directly to a busbar.
Is the Q2L32150 suitable for HVAC applications?
Yes. This breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
What does the "LI" trip function indicate?
The LI code means this thermal-magnetic breaker provides Long-Time (L) and Instantaneous (I) protection. The thermal mechanism protects against sustained overloads, while the magnetic mechanism trips instantly in the event of a short circuit. Both settings are fixed on this model.
Does this breaker feature a tripped indicator?
Yes, the Q2L32150 includes Square D's Visi-Trip indicator. When the breaker trips, a highly visible red indicator appears, allowing you to quickly identify the faulted circuit in a multi-breaker panel.
