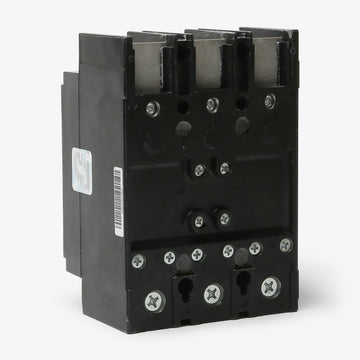

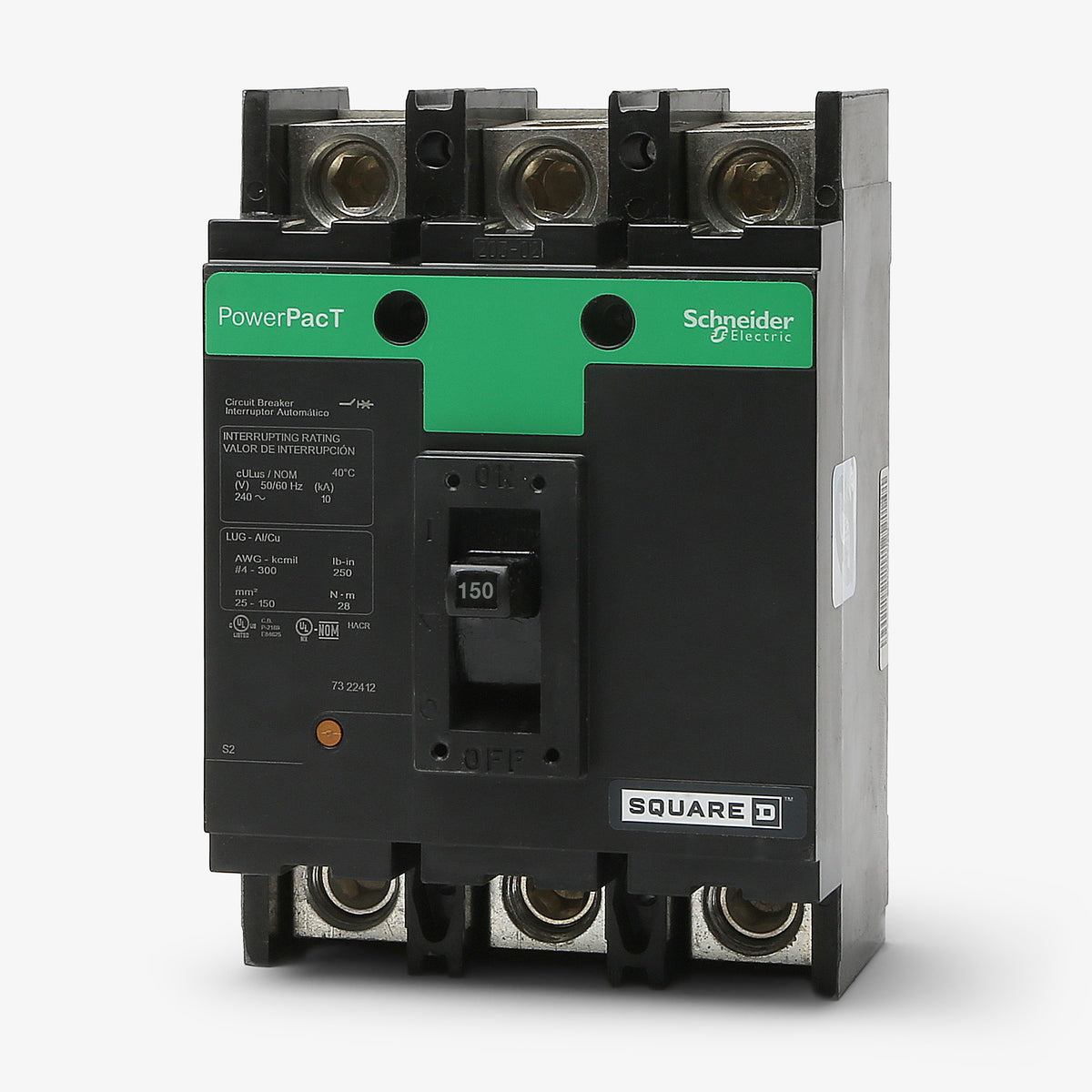

Square D QBL32150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
QBL32150
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL32150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBL32150 |
| Series | QBL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Panelboards (as Main/Sub-feed) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QBL32150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBL32150-R |
| Series | QBL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Panelboards (as Main/Sub-feed) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the PowerPacT Q family, the Square D QBL32150 serves as a 3-pole, 150A molded case circuit breaker. Designed for commercial and industrial applications, it provides dependable overcurrent protection for 240V systems. This unit-mount MCCB features feed-thru lugs for installation in enclosures, switchboards, and panelboards. It serves as an exact replacement for legacy Q23150 breakers. Rated at 10kAIC, it utilizes a fixed thermal-magnetic trip unit and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBL32150 |
| Series | QBL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Panelboards (as Main/Sub-feed) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat legacy circuit breaker does the QBL32150 replace?
The QBL32150 is a direct, exact-fit replacement for the obsolete Square D Q23150 molded case circuit breaker. The QBL model brings this 150A configuration into the current PowerPacT Q-Frame family.
What is the difference between the Square D QBL32150 and the QDL32150?
The difference is the short-circuit interrupting rating. The QBL32150 is rated for 10kA at 240VAC (the B interrupting tier), whereas the QDL32150 is rated for 25kA at 240VAC (the D interrupting tier). Both are 150A, 3-pole, unit-mount breakers with identical physical dimensions.
Which Square D panelboards and switchboards accept the QBL32150 circuit breaker?
This unit-mount Q-Frame breaker is designed for individual enclosures, metering devices, switchboards, and NQ series panelboards. When installing this as a main breaker in an NQ panelboard, you will need a specific main breaker adapter kit, such as the NQMB2Q.
Is the QBL32150 compatible with standard I-Line panelboards?
No. The QBL32150 is a unit-mount circuit breaker that features feed-thru lugs on both ends for cabled connections. It lacks the plug-on I-Line mounting bracket, so it cannot be installed on I-Line bus stacks. For I-Line panelboard mounting, you would need a QBA, QDA, or QGA frame breaker.
What do the letters 'L' and 'I' signify in this circuit breaker's trip function code?
The 'LI' code means this thermal-magnetic trip unit provides Long-Time (L) protection for sustained overloads and Instantaneous (I) protection for sudden short circuits. Both trip thresholds are fixed at the factory and cannot be field-adjusted.

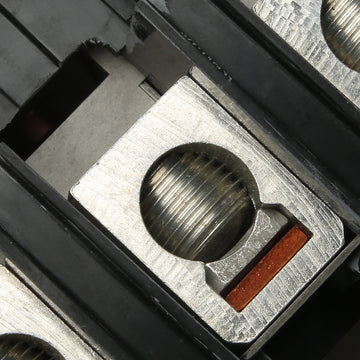

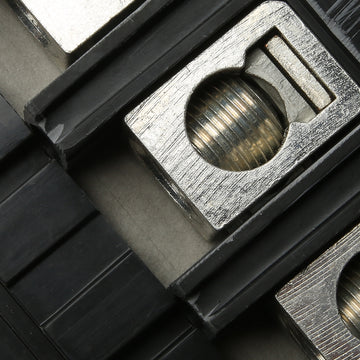

Are wire lugs included with the QBL32150?
Yes, the QBL32150 is shipped with mechanical lugs factory-installed on both the line and load sides, making it ready for standard cabled connections right out of the box.
