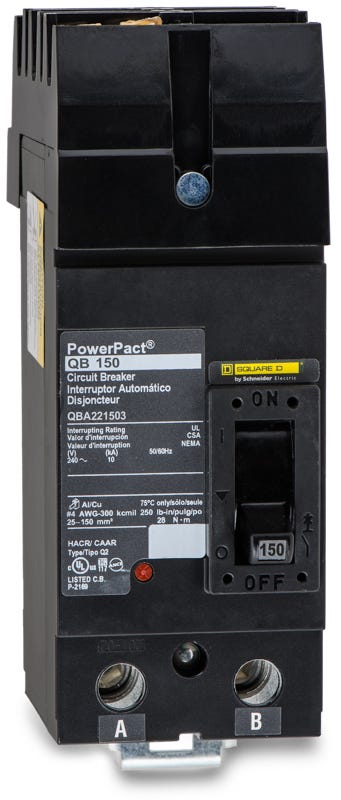

Square D QBA221503 Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
QBA221503
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA221503
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA221503 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D QBA221503 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA221503 |
| Series | QBA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection BA, 80% Rated |
Sold out
Quantity
Square D QBA221503 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA221503-R |
| Series | QBA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection BA, 80% Rated |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Providing 150 amps of thermal-magnetic protection, the QBA221503 is a 2-pole MCCB from the Square D PowerPacT Q-Frame lineup. It offers reliable LI trip functions. This unit installs into Square D I-Line panelboards. It features a BA phase connection and serves as a replacement for legacy Q22150 breakers, ensuring seamless upgrades. Capable of handling 10kAIC at 240VAC, the breaker includes a Visi-Trip indicator for rapid fault detection. It substitutes for the QDA221503.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA221503 |
| Series | QBA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection BA, 80% Rated |
Product FAQs
6 answersWhat panelboards accept the QBA221503 circuit breaker?
This PowerPacT Q-Frame breaker is designed specifically for installation in Square D I-Line panelboards and switchboards. It utilizes an I-Line style plug-in connection.
Can the QBA221503 be used to replace legacy Square D breakers?
Yes, this breaker serves as a direct replacement for legacy Square D Q22150 circuit breakers, providing a seamless upgrade path for older I-Line systems.
What specific phase connection does the QBA221503 utilize?
This 2-pole breaker is configured for a BA phase connection. In the Square D I-Line catalog numbering system, the terminal digit 3 designates the BA phasing.
What wire gauge range is supported by the QBA221503 lugs?
The standard lugs on this breaker accommodate wire sizes from 4 AWG up to 300 kcmil.
How does the QBA221503 indicate a tripped condition?
It is equipped with a Visi-Trip indicator. When the breaker trips due to an overload or short circuit, this visual indicator provides rapid fault detection without needing to test the circuit.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic trip unit includes Long-Time and Instantaneous (LI) functions. The thermal component protects against sustained overloads, while the magnetic component responds immediately to short circuits.
