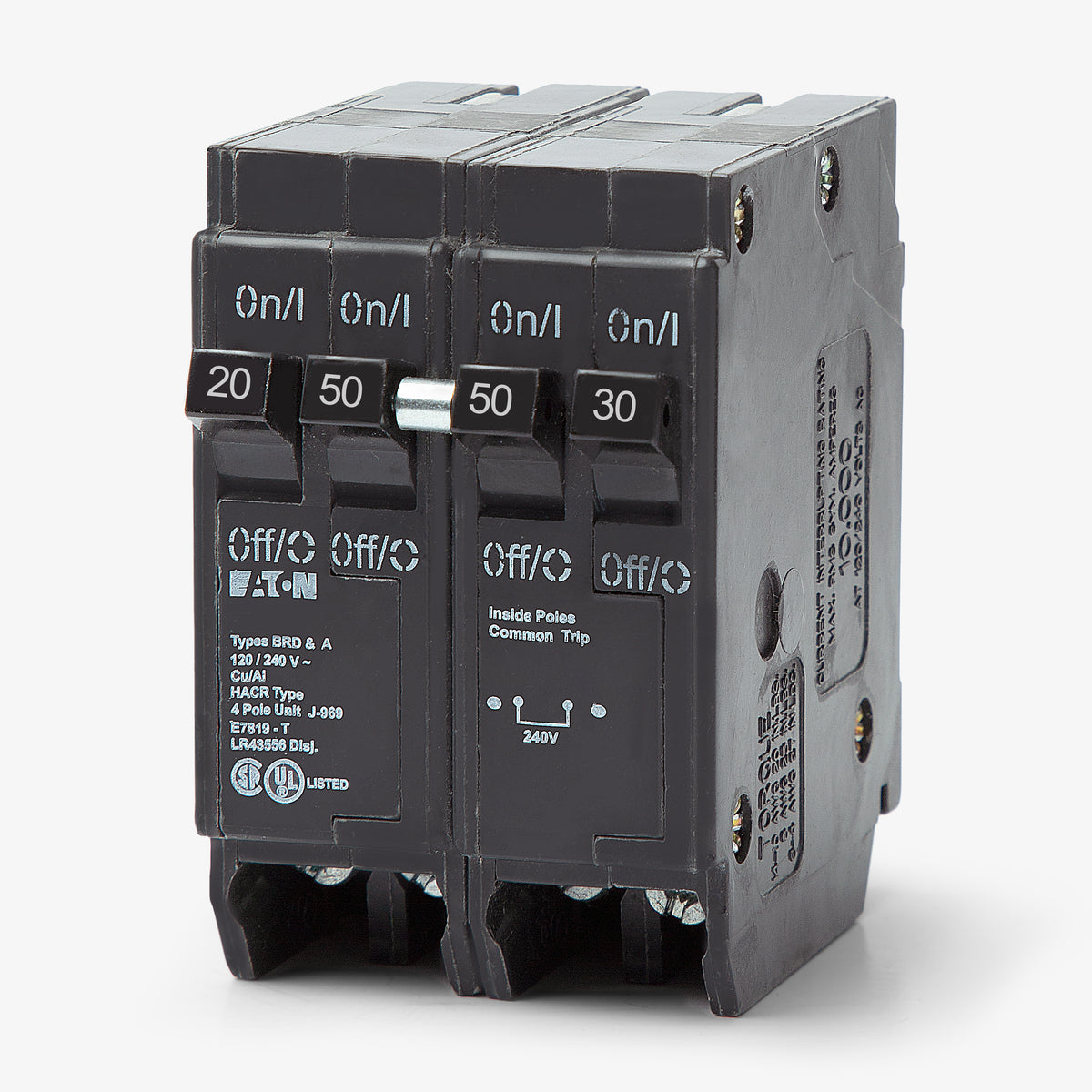

Eaton / Cutler-Hammer BQC2502030 20/50/30A Quadplex Miniature Circuit Breaker
- 20/50/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC2502030
20/50/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2502030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2502030 - 20/50/30A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC220250
20/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC230250
30/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC240250
40/50A Quadplex Miniature Circuit Breaker
Description
Designed for residential and commercial applications, the Eaton BQC2502030 provides space-saving quadplex protection. It features a 2-pole 50A center configuration with common trip, flanked by independent 1-pole 20A and 30A outer poles. This CTL-style breaker installs into Eaton Type BR load centers, requiring two standard 1-inch spaces. It includes a rejection tab and accepts 14-4 AWG wiring. Rated for 10kAIC at 120/240VAC, it delivers reliable thermal-magnetic protection and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 20/50/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, SWD, UL |
| Temp Rating | 60C to 75C |
Product FAQs
7 answersWhat is the pole configuration of the Eaton BQC2502030 quad breaker?
This quadplex breaker features a 2-pole 50A center configuration with a common trip, flanked by independent 1-pole 20A and 1-pole 30A outer poles. It fits into a standard two-pole footprint.
Which load centers are compatible with the BQC2502030 circuit breaker?
This breaker is designed for use in Eaton Type BR load centers that accept CTL (Circuit Total Limiting) plug-on breakers. It requires two standard 1-inch spaces for installation.
What wire gauge is accepted by the terminals on the BQC2502030?
The box lug terminals accept 14 AWG to 4 AWG copper or aluminum conductors.
Is the Eaton BQC2502030 rated for HVAC equipment?
Yes, this breaker carries an HACR rating, making it suitable for heating, air conditioning, and refrigeration branch circuits.
Does the BQC2502030 include a rejection tab?
Yes, it features a CTL rejection tab to prevent installation in panel slots that are not designed to accept tandem or quad breakers.
How do the trip functions operate on the BQC2502030?
The center 50A poles feature a common trip mechanism, ensuring both legs trip simultaneously. The outer 20A and 30A poles operate as independent trips. All poles utilize fixed thermal-magnetic protection.
What are the physical dimensions of the BQC2502030 breaker?
The breaker measures 3 inches in height, 2 inches in width, and 3 inches in depth.
